Name: Müller Müller 24012 Multi-purpose controllers 2-channel Max. range (open field) 75 m EA 46.22 pro4
Brand: Müller
SKU: 2281504
Availability: InStock

A rectangular electrical module with connections on the right side, labelled 'Blind Control', 'Standard Switch', '230 V', 'Ext. Input 1/2'.

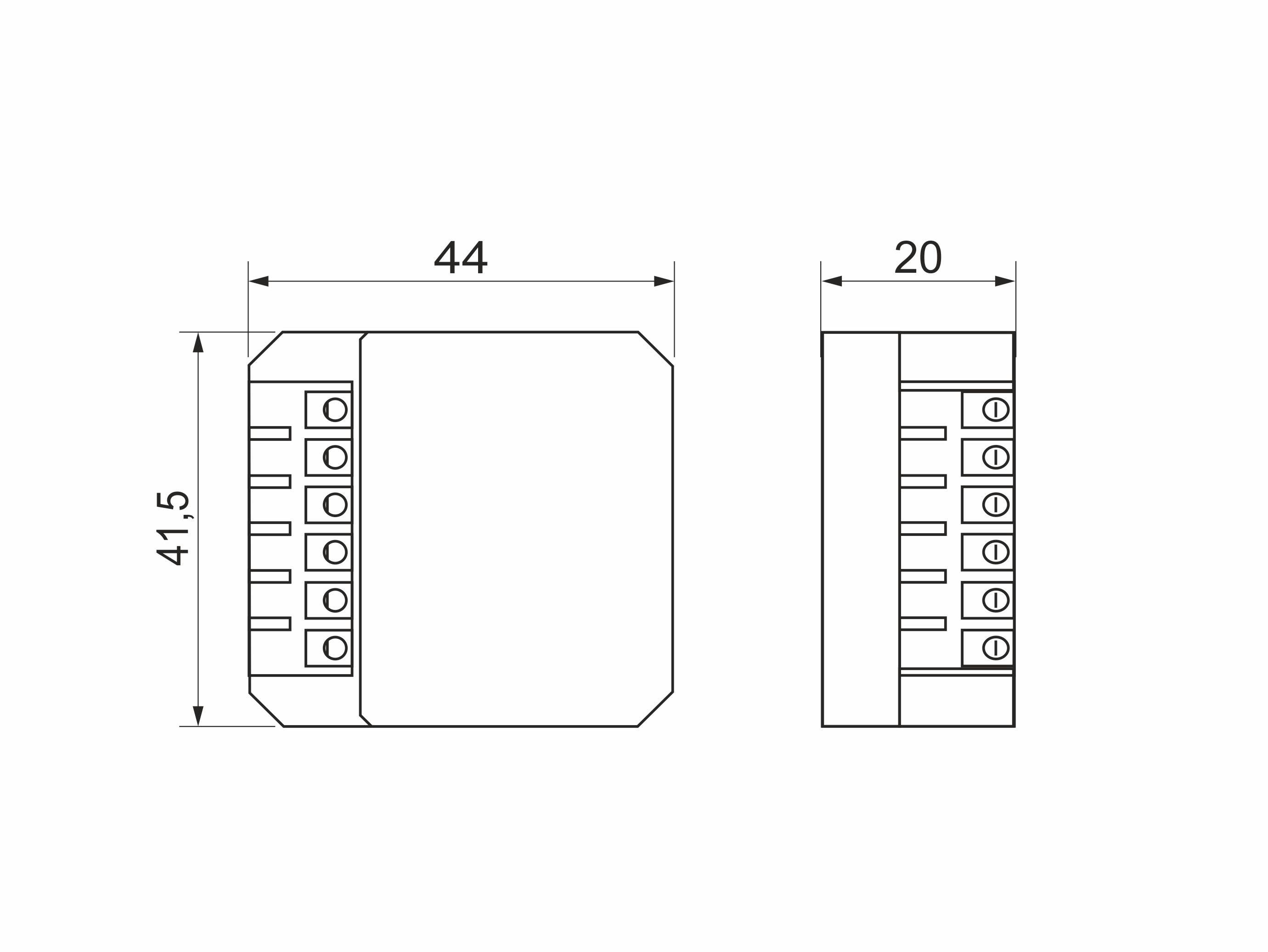

'Technical drawing of a rectangular device with the dimensions: height 41.5 mm, width 44 mm, depth 20 mm.'

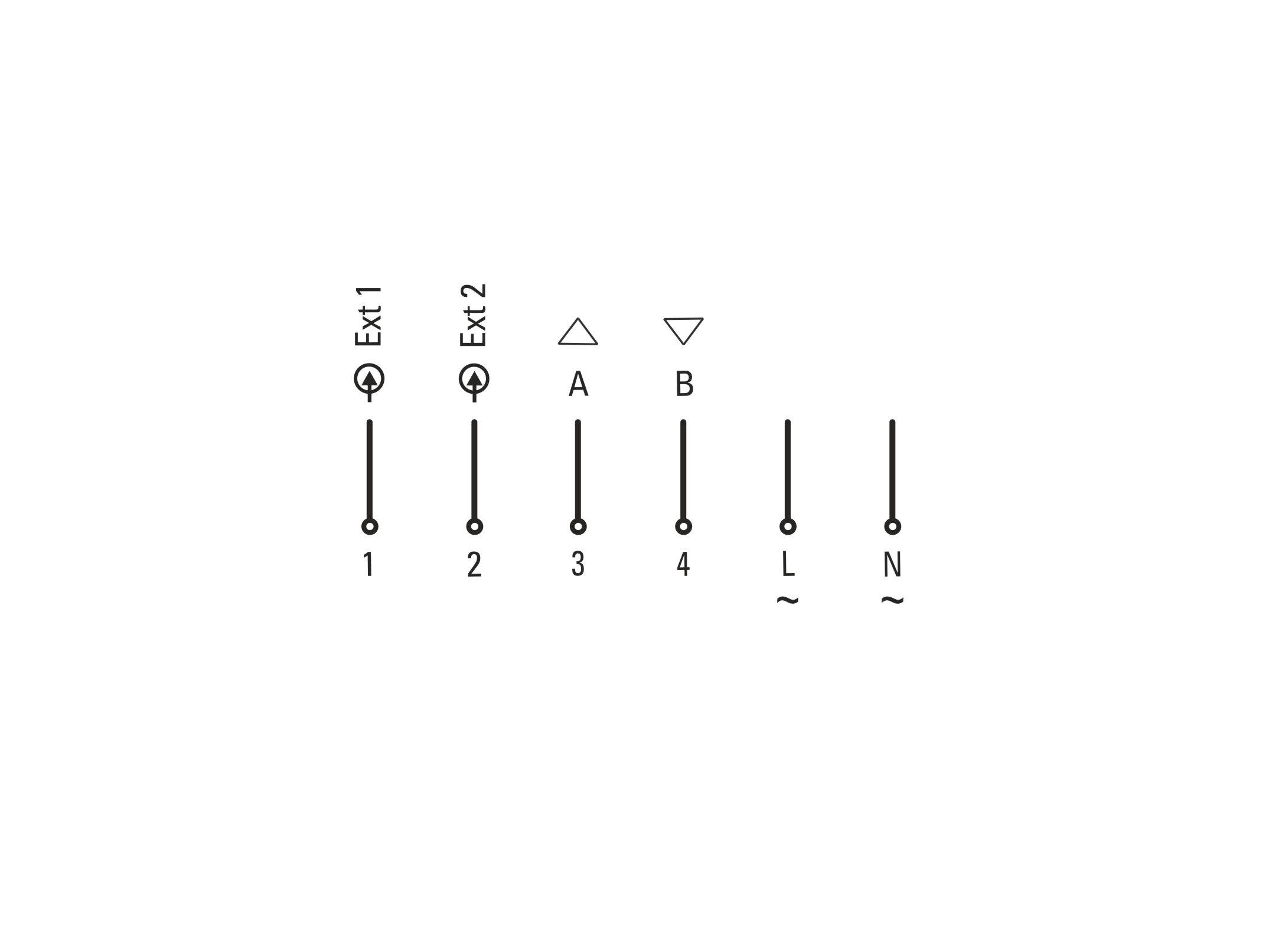

'Ext 1' and 'Ext 2' are two circuit diagram symbols, followed by symbols A and B as well as letters L and N. They represent electrical connections.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

5 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 59.99 / piece)

€ 59.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

mi.system multi-function device

Multifunction device (remote control)
2 channels/100 memory slots
2 inputs
Programming and operation via app

Technical specifications

Channels (isolated): 2 x normally open outputs (A, B)
Transmission type: Bluetooth 4.2
Connection type: Screw terminals

Product type: Multi-purpose controllers

Series: Müller

Transfer Standard (Smart Home): Bluetooth

Used at: Indoors

: IP20

Operating voltage: 230 V

Data transfer (Smart Home): Wireless

Channels: 2

Frequency: 868 MHz

: 75 m

Mounting type: Flush mount

Width: 44 mm

Height: 41.4 mm

Depth: 20 mm

Dim: (W x H x D) 44 x 41.4 x 20 mm

Hub: Not required, optional for remote access

: n.rel.

Weight: 50 g

Documents & Downloads

Datasheet

Datasheet 2281504 Müller Müller 24012 Multi-purpose controllers 2-channel Max. range (open field) 75 m EA 46.22 pro4

User & Safety Instructions

User & Safety Instructions 2281504 Müller Müller 24012 Multi-purpose controllers 2-channel Max. range (open field) 75 m EA 46.22 pro4

Description

Multifunction device (remote control)
Can be used universally as: Timer switch week, timer Astro, shutter control, clock thermostat (with LS 20.00 pro4) and hygrostat (with LS 20.00 pro4).

This text is machine translated.

Features

2 switching outputs 230 V
2 inputs 230 V for buttons or switches
Switching capacity max. 6 A Total
Automatic daylight saving
time Approx. 10 years power reserve
Bluetooth integrated
Programming and control with the Smartphone via Bluetooth: App - Save`n Carry (iOS and Android)
Switching program can be deactivated via app
up to 3 smartphones can access simultaneously
Overheating protectionWeek:
2 channels 230 V
100 storage locations
shortest switching interval 1 min.
Additional switching times for ON, OFF and pulse according to date and time
Permanent switching according to date and time
Cycle function
Pulse duration Pulse (switching time) 00:01 to 59:59 mm:ss
Output functions can be parameterized depending on the input signal:
Change function between ON and OFF
timer function (e.g. staircase light, ventilation)
Switch-off pre-warning (for use of staircase light) optional
3 operating modes: Automatic, manual switching, random functionAstro:
2 channels 230 V
100 storage positions
Post-switching
minimum switching interval 1 min.
Offset function = for each switching time a programmable difference (±90 min.) to the astrotime is possible
Permanent switching according to date and time
Output functions can be parameterized depending on the input signal:
Change function between ON and OFF
timer function (e.g. Staircase light, ventilation)
Switch-off pre-warning (with use of staircase light) optional
2 operating modes: Automatic and manual switchingRollshutter control/blind control:
2 switching outputs ON / FROM 230 V
2 switching times per day
Astrofunction
Adjustable departure time
Reversing impulse optional
3 operating modes: Automatic, manual switching, random function
adjustable light value for automatic shading (only with müller LS 20.00 pro4)Clock thermostat with weekly program (with müller LS 20.00 pro4)
: 2 adjustable setpoints: Eco and Comfort (10...30 °C)Hygrostat with weekly program (with LS 20.00 pro4):
Adjustable setpoint 40...95% relative humidity

System requirements

Android version 7.0, iOS 11.0, Bluetooth 4.0
