Name: Müller KNX 24241 Audio interface AS 36.03 knx
Brand: Müller
SKU: 2795864
Availability: InStock

A KNX bus coupler with connection terminals and controls for 'LS+', 'LS-', 'Input 1', 'Input 2', 'Input 3' and 'GND'.

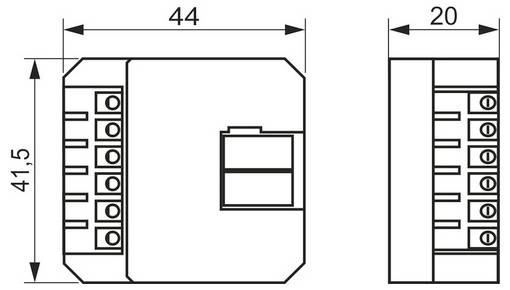

Technical drawing of a rectangular device with front and side views, showing dimensions 44 wide, 41.5 high, and 20 deep, plus terminal slots and a central connector<br>

Technical dimension drawing of a rectangular device with terminal blocks, showing front and side views labeled 44, 41.5, and 20.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 209.99 / piece)

€ 209.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Weidmüller AS 36.03 KNX audio interface

Audio interface for the KNX busFlush mounting6 individual MP3-files12 pre-defined melodiesAdjustable volume levelExternal speaker can be connected

Technical specifications

Protection class 3KNX bus terminal connection typeExternal impedance Speakers 4 - 8 OhmSpeaker power: Max. 0.45 WAmbient temperature: -10 °C to +45 °C

Product type: Audio interface

Series: KNX

Used at: Indoors

: 0.45 W

Data transfer (Smart Home): Wired

Mounting type: Wall
Flush mount

Factory colour: White
Black

Width: 44 mm

Height: 41.5 mm

Depth: 20 mm

Dim: (W x H x D) 44 x 41.5 x 20 mm

Hub: Not required, optional for remote access

Data exchange: Bidirectional (bi)

: n.rel.

Features: Signal input

Documents & Downloads

Datasheet

Datasheet 2795864 Müller KNX 24241 Audio interface AS 36.03 knx

User & Safety Instructions

User & Safety Instructions 2795864 Müller KNX 24241 Audio interface AS 36.03 knx

Description

KNX audio interface for the KNX bus. The volume can be set and an external loudspeaker can be connected.

This text is machine translated.

Features

Audio interface for KNX-TP building system technology6 individual MP3-files can be transferred via ETS12 pre-defined tones/melodies3 binary inputs10 input objects and 16 scenes can be configuredExternal speakers can be connectedSmall external speaker (LA 06.10) included (AS 36.13 KNX)Adjustable volumeNo auxiliary voltage requiredFunction day/night operationMute functionClearly structured ETSEasy handling and installationFlush mountingCompact dimensionsCan be installed behind any type of blind cover or, with a deep box, behind switch/button!

Hints

For the KNX TP bus

System requirements

Description

KNX audio interface for the KNX bus. The volume can be set and an external loudspeaker can be connected.

This text is machine translated.

Features

Audio interface for KNX-TP building system technology6 individual MP3-files can be transferred via ETS12 pre-defined tones/melodies3 binary inputs10 input objects and 16 scenes can be configuredExternal speakers can be connectedSmall external speaker (LA 06.10) included (AS 36.13 KNX)Adjustable volumeNo auxiliary voltage requiredFunction day/night operationMute functionClearly structured ETSEasy handling and installationFlush mountingCompact dimensionsCan be installed behind any type of blind cover or, with a deep box, behind switch/button!
