Neomounts AV2-500WH Fastening set White
EAN:
Part number:
Item no:
Number
Total (€ 82.34 / piece)
€ 82.34
plus VAT.
Neomounts AV2-500WH Universal Video Bar Kit - White
Technical specifications
- Supported screen size: 43 - 110"
- Supported VESA patterns: 200x200, 200x300, 200x400, 400x200, 400x300, 400x400, 400x500, 400x600, 600x200, 600x300, 600x400, 600x500, 600x600, 800x200, 800x400, 800 x 500, 800 x 600 mm
- Adjustment Type: Manual
- Product type
Fastening set
- Factory colour
White
- Max. load capacity
10 kg
- Material (details)
Steel
- Weight
18.400
- Width
900 mm
- Height
416 mm
- Depth
31 mm
- Dim
(W x H x D) 900 x 416 x 31 mm
- Product type description
Zubehör TFT/LCD-TV
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3342120 Neomounts AV2-500WH Fastening set White
Description

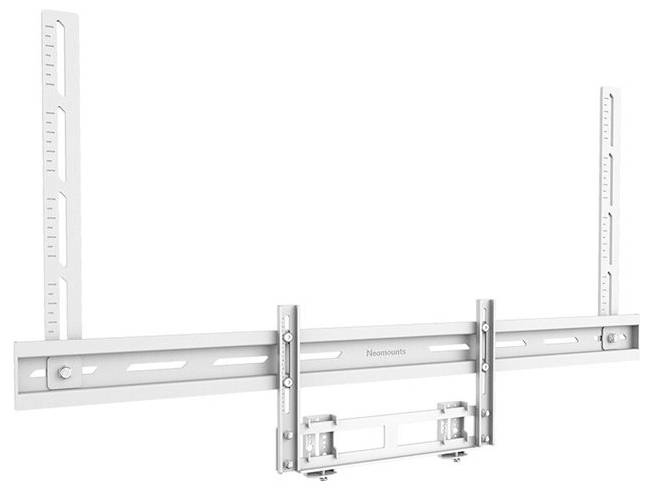

The Neomounts AV2-500WH is a universal video bar kit for screens with a minimum size of 43" and a VESA hole pattern of 200x200 to 800x600 mm. The very robust, stable and versatile kit has a maximum load-carrying capacity of 10 kg and can be mounted above or below the screen. For maximum usability, the video bar mount and the rear panel mount can be adjusted independently of each other in height.
The AV2-500WH Video Bar Kit is compatible with most video bars*, PTZ cameras and soundbars, including Logitech Rally Plus speakers. The mounting holes can vary in width and height to ensure the widest possible range of applications. The VESA frame can be adjusted both in height and width (200/400/600/800) and can be mounted on the wall, on the floor and even on the ceiling. Despite the many options, the installation is easy, also thanks to the ruler-guided leveling for a perfect adjustment of the screen.
This text is machine translated.
The AV2-500WH Video Bar Kit is compatible with most video bars*, PTZ cameras and soundbars, including Logitech Rally Plus speakers. The mounting holes can vary in width and height to ensure the widest possible range of applications. The VESA frame can be adjusted both in height and width (200/400/600/800) and can be mounted on the wall, on the floor and even on the ceiling. Despite the many options, the installation is easy, also thanks to the ruler-guided leveling for a perfect adjustment of the screen.
This text is machine translated.
Hints
* The Neomounts AV2-500WH Video Bar Kit is universal and suitable for any type of video bar, regardless of brand or model, within the range of the mounting bracket (see line drawing). In addition, the AV2-500WH is optimized for the following specific video bar:
- Bose Professional VB1 and VB-S.
- Neat Bar and Bar Pro
- Poly Studio, Studio X70 v Studio X30
- Jabra Panacast 50
- Logitech Meetup, Rally Bar, Rally Bar Mini, Rally Bar Huddle and Rally Plus
- Cisco WebEx room kit plus
- Yealink MSpeaker II, MeetingBar A30, MeetingEye 400 and MeetingEye 600
