OBO Bettermann 6016235 Wire chute (L x W x H) 3 m x 100.00 mm x 50.00 mm 3 m
EAN:
Part number:
Item no:
Number
Minimum order quantity: 3
Multiple: 3
Total (1 m = € 153.00)
€ 1,377.00
incl. VAT
Only 10 Set(s) available
Technical specifications
- Profile: C-shape
- Height: 50 mm
- Width 100 mm
- Wire diameter 4.5 mm.
- Length: 3000 mm
- Usable cross-section: 3300 mm²
- Design: Without connectors
- Screwless connector: No.
- Integrated partition: Without
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Stainless steel
- Material quality: Stainless steel 304 (1.4301)
- Surface protection: Untreated
- Colour: Other
- Load test type according to IEC 61537: Type II.
- Weighs 1.33 kg/m.
- Product type
Wire chute
- Type
Without connectors
- Content
3 m
- Dim
(L x W x H) 3 m x 100.00 mm x 50.00 mm
- Length
3 m
- Width
100.00 mm
- Height
50.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406644 OBO Bettermann 6016235 Wire chute (L x W x H) 3 m x 100.00 mm x 50.00 mm 3 m
Description

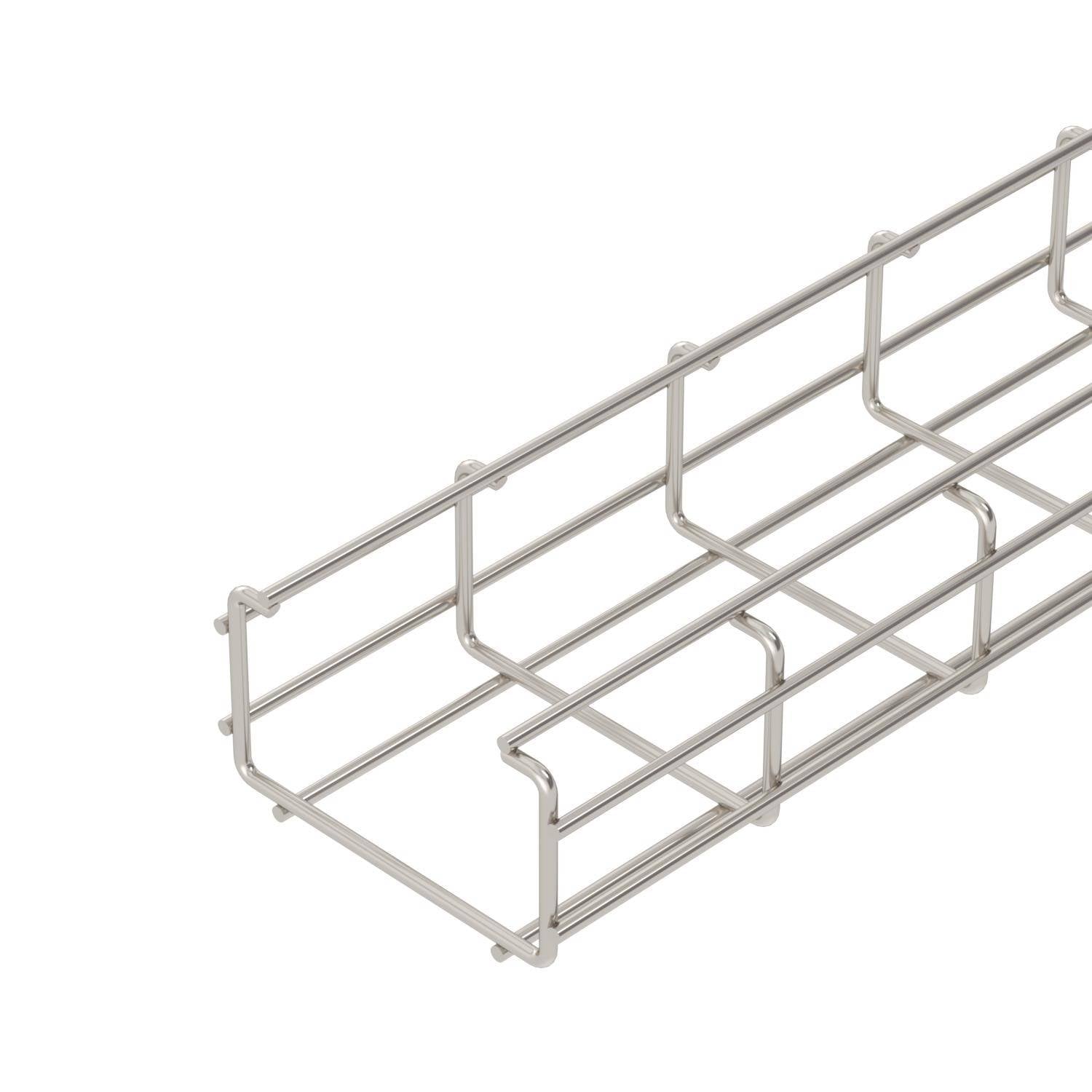

Girder groove in C-shape made from point-welded steel wires in the side height 50 mm.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m Grid groove
