Name: Omnitronic HS-60 PA compression drive speaker 50 W White 1 pc(s)
Brand: Omnitronic
SKU: 313260
Availability: InStock

A white, rectangular ceiling fan with a ribbed protective grille and a handle-like grip on the top surface, designed for indoor ventilation.

White stage fan with square protective grille, side handles, and circular ventilation opening.

A white, square LED light with a mounting bracket. A label on the back with technical details. Lighting device for indoor or outdoor use.

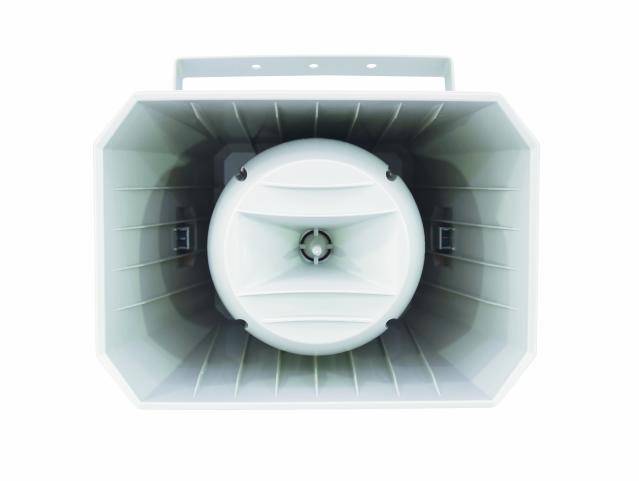

Speaker shown from the front, rectangular with a round speaker grille in the centre, suitable for outdoor sound reinforcement.

Technical Drawing of a Light Fitting with Dimensions: 220x200mm, 362x200mm, 310x180mm. Shows Front, Rear and Side Views.

1/5

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

50 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 194.99 / piece)

€ 194.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Omnitronic HS-60 Pressure chamber speaker

Compression Drive Speakers

Technical specifications

Input voltage: 100 V
Components: 15 cm loudspeaker (6) tweeter
Rated power: 3.5 W RMS (red and white)
4.5 W RMS (yellow + white)
9 W RMS (red and green)
12.5 W RMS (green + white)
25 W RMS (yellow and green)
50 W RMS (red and yellow)
8 Ohm (red and black)
Sensitivity (1W, 1m): 99 dB, ±3 dB
Max. Acoustic pressure: 115 dB
Frequency range 90 Hz - 20 kHz
Dimensions (H x W x D): 363 x 253 x 310 mm
Weight: 3.9 kg

Product type: PA compression drive speaker

RMS capacity: 3 W

Max. load: 50 W

Impedance: 8 Ω

Features: sprayproof

: IP44

Frequency range: 90 - 20000 Hz

Operating voltage: 100 V

Factory colour: White

Material: Plastic

Width: 38.5 cm

Height: 39.5 cm

Length: 27.5 cm

Weight: 4.6 kg

Dim: (L x W x H) 27.5 x 38.5 x 39.5 cm

Max. sound pressure: 115 dB

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 313260 Omnitronic HS-60 PA compression drive speaker 50 W White 1 pc(s)

Description

Compression Drive Speakers · 2-way speaker system · 100 V or 8-Ohm-Betrieb · 100-V transformer with 6 power taps and 8-ohm connection · 15 cm cone speaker (6") plus tweeter for extended frequency response · High sound pressure and wider transmission range · In the weatherproof plastic housing (IP44) · Screw terminals · For outdoor sound systems, such as sports fields, swimming pools, open air events.

This text is machine translated.
