Name: ORBIS Zeitschalttechnik kW-Zähler OB7010001 Electricity meter (AC) Digital 40 A MID-approved: No 1 pc(s)
Brand: ORBIS Zeitschalttechnik
SKU: 3828170
Availability: InStock

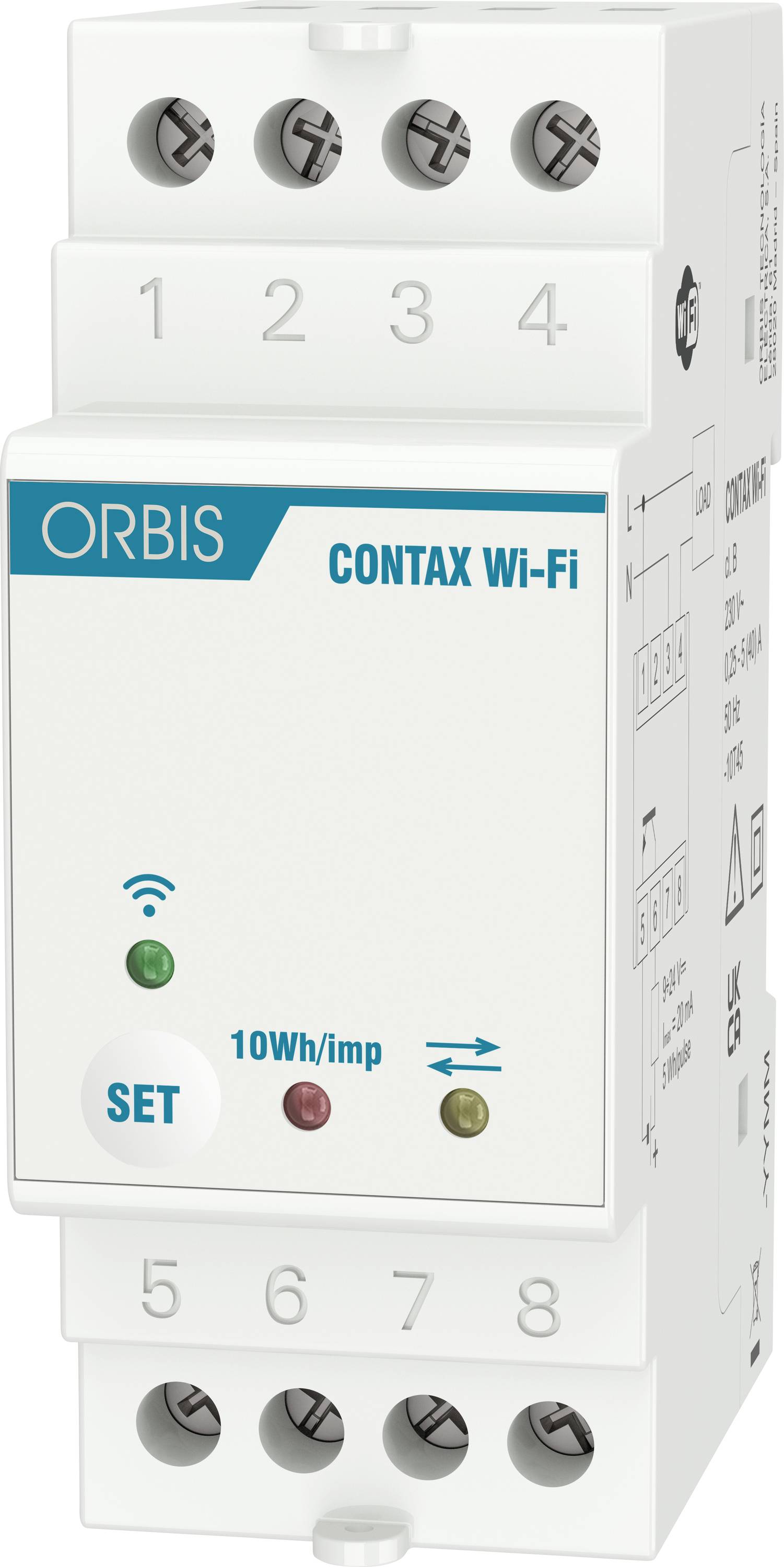

Photo of a white ORBIS CONTAX Wi-Fi electrical device, a DIN-rail energy meter/controller with numbered terminals and indicator lights.

Product type

Electricity meter (AC)

Current load

40 A

Display

Digital

Cloud integration

Manufacturer-specific

Counter type

Active current meter (single phase)

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 93.99 / piece)

€ 93.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

CONTAX WIFI 4021 smart AC meter for DIN rail mounting

W-LAN & Bluetooth BLE 5.0 communication for control via Mobile APP
Single phase active current meter for top hat rail mounting (1 TE)
Measurement range up to 40 A load current
Reading of real-time data, history and data export via Smartphone
LED pulse output for precise consumption measurement

Technical specifications

Mounting type: DIN-rail TH35 (35 mm)
Protection class IP20 (to EN 60529)
Operating temperature: -10 °C to + +45 °C.
Meter constant: 2000 imp/kWh (LED pulse)
Wireless standard: Wi-Fi 2.4 GHz (802.11 b/g/n) & Bluetooth BLE 5.0

Counter type: Active current meter (single phase)

Product type: Electricity meter (AC)

Current load: 40 A

Display: Digital

Operating voltage: 230 V AC

Special feature: Data transfer directly to your smartphone via Wi-Fi and Bluetooth

: Manufacturer-specific

Factory colour: Grey
White

Dim: (L x W x H) 65 x 18 x 90 mm

Weight: 100 g

Starting current: 20 mA

Display: Smartphone APP (graphical representation) & LED-pulse display on the device

Display range: 0.01 kWh to 999 999.99 kWh

Type: Alternating current for DIN-rail (1 TE)

Operating voltage: 230 V AC

Self-consumption: 1.5 W

Recess width: 18 mm

Recess length: 65

Frequency: 50 Hz

Accuracy class: Class 1

MID-approved: No

Reading type: Active power
Active energy
Amperage
Voltage

Nominal voltage range: 207 up to 253 V AC

Mains voltage (max.): 253 V AC

Mains voltage (min.): 207 V AC

Width: 18 mm

Height: 90 mm

Length: 65 mm

Current (max.): 40 A

Current (min.): 0.25 A

Current range: 0.25 up to 40 A

Type: kW-Zähler

Effective power range: 0,05 W bis 9200 W

Effective current range: 0,25 A bis 40 A

Power factor Cos φ (max.): 1

Power factor Cos φ (min.): 0.5

Power (max.): 9.2 kW

Active power (min.): 0.05 W

Active power range: 0.05 up to 9.2 kW

Variants(All information include VAT, plus shipping costs)

Counter type

Product type

Display

Current load

ORBIS Zeitschalttechnik kW-Zähler OB7010001 Electricity meter (AC) Digital 40 A MID-approved: No 1 pc(s)

Item no:3828170

Fast track dispatch on Wed 14 Oct

5 Piece(s)Conrad Electronic

This article

Active current meter (single phase)

Electricity meter (AC)

Digital

40 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 93.99^*

ORBIS Zeitschalttechnik kW-Zähler OB7010000 Electricity meter (AC) Digital 100 A MID-approved: Yes 1 pc(s)

Item no:3828163

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

Active power meter (direct measurement)

Electricity meter (AC)

Digital

100 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

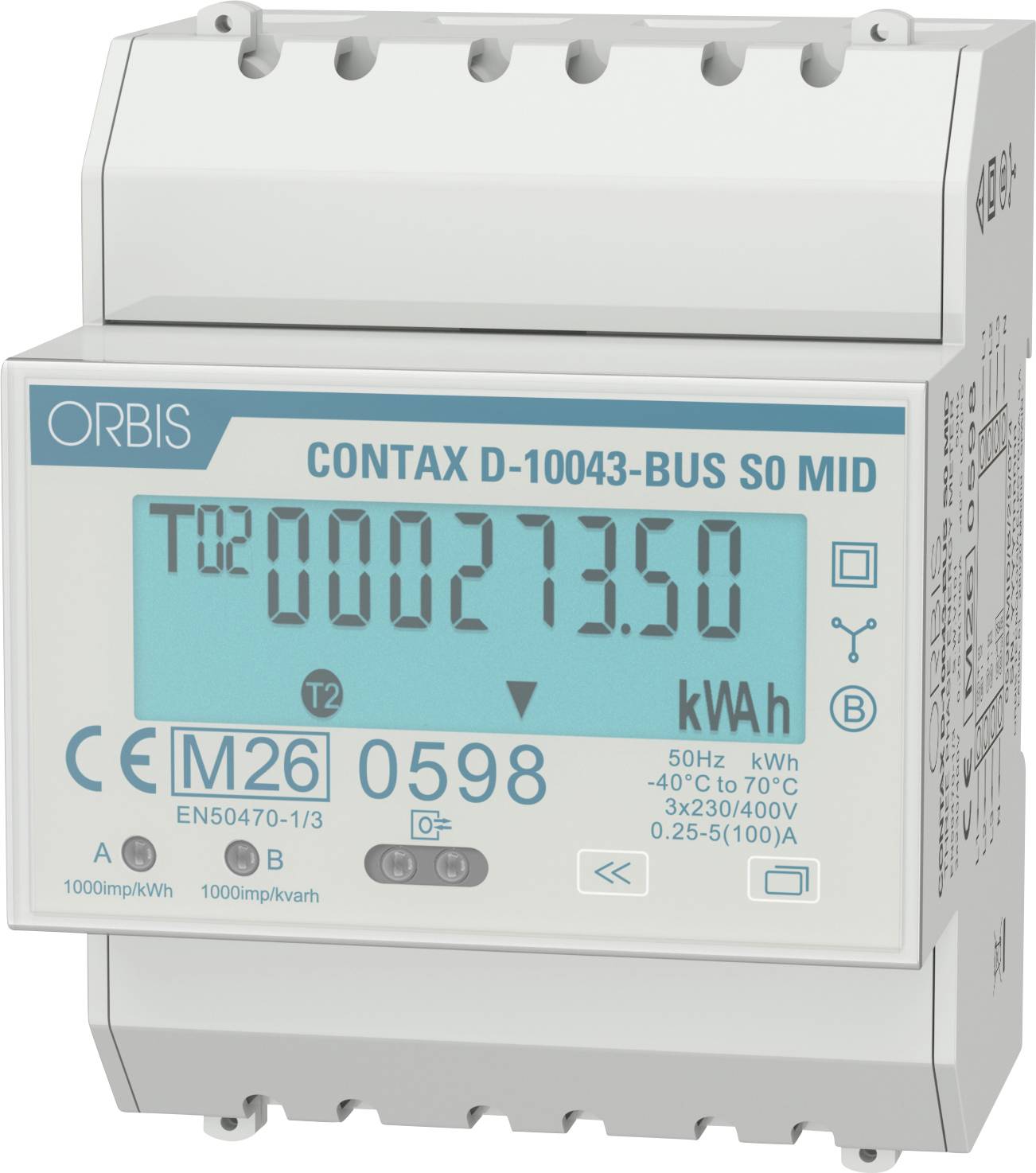

ORBIS Zeitschalttechnik kW-Zähler OB7010002 Electricity meter (AC) Digital 100 A MID-approved: Yes 1 pc(s)

Item no:3828164

Fast track dispatch on Wed 14 Oct

5 Piece(s)Conrad Electronic

Active power meter (direct measurement, MID tested)

Electricity meter (AC)

Digital

100 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 164.99^*

ORBIS Zeitschalttechnik kW-Zähler OB702000 Electricity meter (AC) Digital 25 A MID-approved: Yes 1 pc(s)

Item no:3828161

Fast track dispatch on Wed 14 Oct

5 Piece(s)Conrad Electronic

Active power meter (direct measurement)

Electricity meter (AC)

Digital

25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 61.99^*

ORBIS Zeitschalttechnik kW-Zähler OB703100 Electricity meter (AC) Digital 32 A MID-approved: No 1 pc(s)

Item no:3828166

Fast track dispatch on Wed 14 Oct

4 Piece(s)Conrad Electronic

Active power meter (direct measurement)

Electricity meter (AC)

Digital

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 41.99^*

ORBIS Zeitschalttechnik kW-Zähler OB707100 Electricity meter (AC) Digital 65 A MID-approved: No 1 pc(s)

Item no:3828169

Fast track dispatch on Wed 14 Oct

5 Piece(s)Conrad Electronic

Electronic/static active current meter (direct measurement)

Electricity meter (AC)

Digital

65 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

ORBIS Zeitschalttechnik kW-Zähler OB708100 Electricity meter (AC) Digital 63 A MID-approved: No 1 pc(s)

Item no:3828168

Fast track dispatch on Wed 14 Oct

5 Piece(s)Conrad Electronic

Electronic single-phase meter (direct measurement)

Electricity meter (AC)

Digital

63 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

ORBIS Zeitschalttechnik kW-Zähler OB708600 Electricity meter (3-phase) Digital 63 A 1 pc(s)

Item no:3828126

Fast track dispatch on Wed 14 Oct

5 Piece(s)Conrad Electronic

Active power meter (direct measurement)

Electricity meter (3-phase)

Digital

63 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

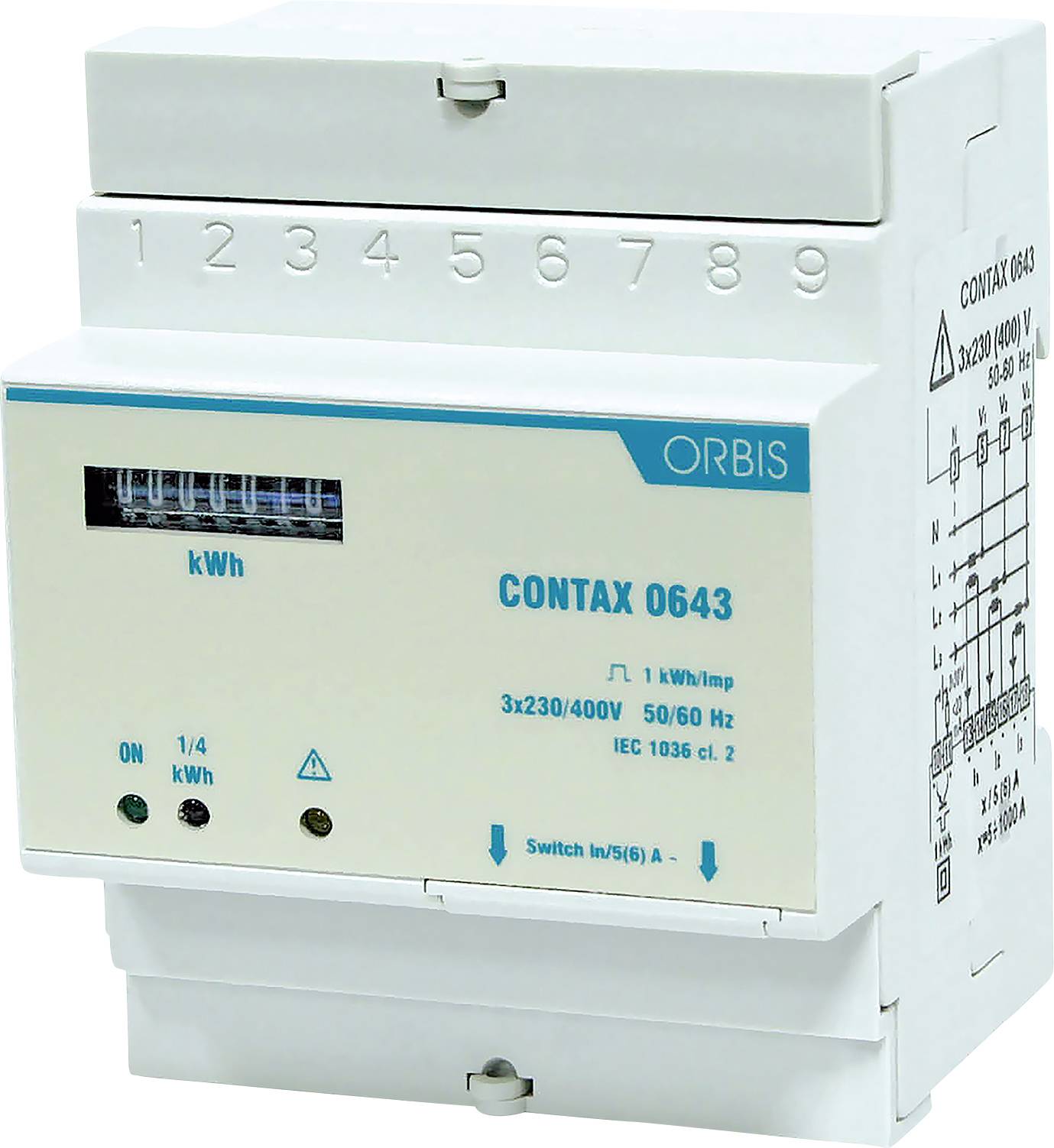

ORBIS Zeitschalttechnik kW-Zähler OB708800 Electricity meter (AC) Mechanical 40 A 1 pc(s)

Item no:3828127

Fast track dispatch on Wed 14 Oct

5 Piece(s)Conrad Electronic

Active power meter (direct measurement)

Electricity meter (AC)

Mechanical

40 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

ORBIS Zeitschalttechnik kW-Zähler OB709200 Electricity meter (AC) Digital 100 A MID-approved: No 1 pc(s)

Item no:3828165

Fast track dispatch on Wed 14 Oct

5 Piece(s)Conrad Electronic

Active power meter (direct measurement)

Electricity meter (AC)

Digital

100 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Documents & Downloads

Datasheet

Datasheet 3828170 ORBIS Zeitschalttechnik kW-Zähler OB7010001 Electricity meter (AC) Digital 40 A MID-approved: No 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3828170 ORBIS Zeitschalttechnik kW-Zähler OB7010001 Electricity meter (AC) Digital 40 A MID-approved: No 1 pc(s)

Description

The Orbis CONTAX WIFI 4021 (OB701001) is a compact, digital single-phase AC meter for easy rail mounting. With integrated Wi-Fi and Bluetooth interface it enables the real-time monitoring of energy consumption directly via a free Smartphone APP. It measures currents of up to 40 A reliably and precisely (accuracy class 1) and is suitable for Ideal to increase transparency and improve consumption in private as well as commercial electrical installations.
