Name: Panasonic FO amplifier FX101Z FX101Z Light-ON, Dark-ON, Switch (light-ON/dark-ON) 1 pc(s)
Brand: Panasonic
SKU: 1429295
Availability: InStock

A digital sensor by Panasonic, model FX-101P-Z, with various connections and configuration options.

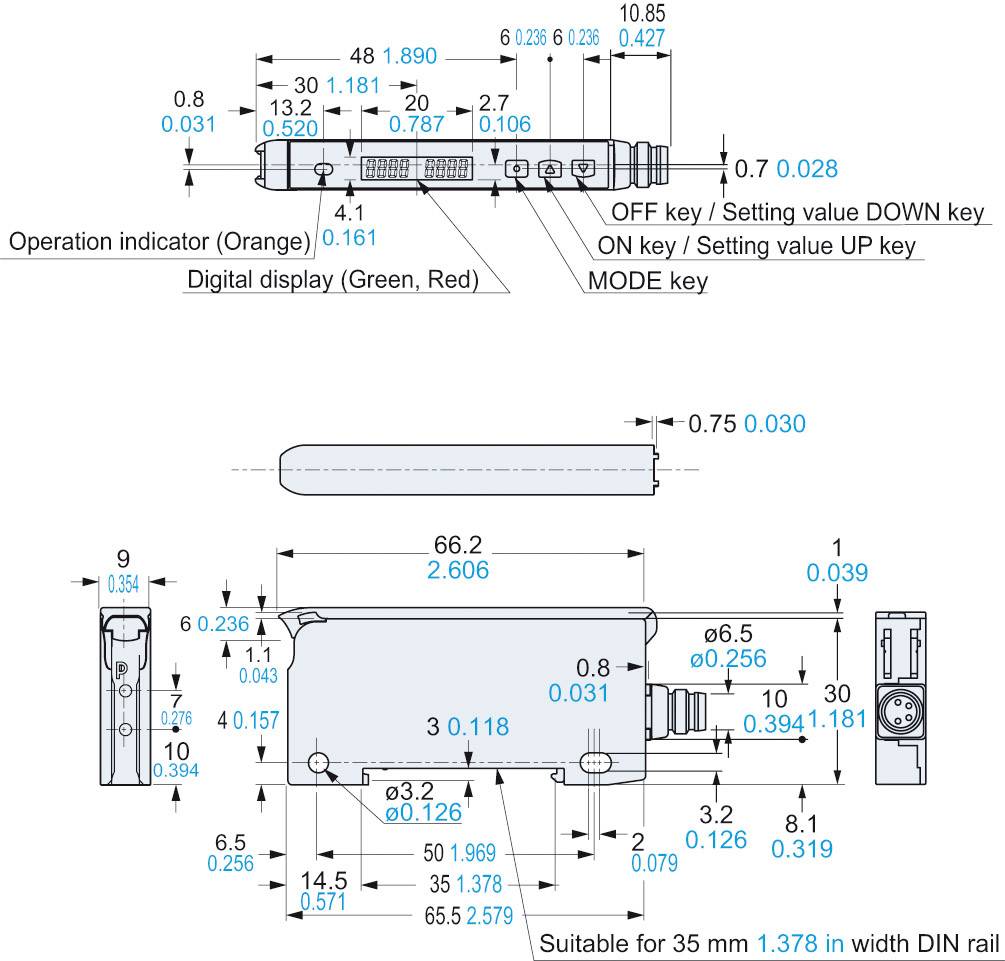

Technical drawing of a digital display device with buttons and display, suitable for 35 mm DIN rail. Dimensions and elements labelled.

1/2

Image similar

Product type

FO amplifier

Functions

Light-ON

Dark-ON

Switch (light-ON/dark-ON)

Max. operating voltage

24 V DC

Connector

M8 (4-pin)

Type

FX101Z

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 164.99 / piece)

€ 165.00

€ 164.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Operating mode light / dark switching

Product type: FO amplifier

Type: FX101Z

Functions: Light-ON
Dark-ON
Switch (light-ON/dark-ON)

Min. operating voltage: 12 V DC

Max. operating voltage: 24 V DC

Operating voltage: 12 - 24 V DC

Response time: 250 µs

Outputs: NPN

Connector: M8 (4-pin)

Enclosure material: Plastic

Transmitter type: LED red

Features: LED indicator

: IP40

Min. temperature: -10 °C

Max. temperature: +55 °C

Length: 65.5 mm

Width: 9 mm

Height: 30 mm

Dim: (L x W x H) 65.5 x 9 x 30 mm

Content: 1 pc(s)

Type: Light wave conductor amplifiers

Output: PNP-Transistor 100 mA

Pick-up time (details): 250 µs

Ambient temperature: -10 - +55 °C

Range: -

Operating voltage: (±10 %) 12 - 24 V DC

Variants(All information include VAT, plus shipping costs)

Connector

Panasonic FO amplifier FX101Z FX101Z Light-ON, Dark-ON, Switch (light-ON/dark-ON) 1 pc(s)

Item no:1429295

Fast track dispatch on Wed 4 Nov

1 Piece(s)Conrad Electronic

This article

M8 (4-pin)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 164.99^*

Panasonic FO amplifier FX101 FX101 Light-ON, Dark-ON, Switch (light-ON/dark-ON) 1 pc(s)

Item no:1429212

Available soon

Conrad Electronic

Cable, open end

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Panasonic FO amplifier FX101P FX101P Light-ON, Dark-ON, Switch (light-ON/dark-ON) 1 pc(s)

Item no:1429214

Available soon

Conrad Electronic

Cable, open end

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Panasonic FO amplifier FX102 FX102 Light-ON, Dark-ON, Switch (light-ON/dark-ON) 1 pc(s)

Item no:1429243

Available soon

Conrad Electronic

Cable, open end

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Panasonic FO amplifier FX102P FX102P Light-ON, Dark-ON, Switch (light-ON/dark-ON) 1 pc(s)

Item no:1429258

Available soon

Conrad Electronic

Cable, open end

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Panasonic FO amplifier FX102PZ FX102PZ Light-ON, Dark-ON, Switch (light-ON/dark-ON) 1 pc(s)

Item no:1429302

Fast track dispatch on Wed 4 Nov

1 Piece(s)Conrad Electronic

M8 (4-pin)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

Panasonic FO amplifier FX102Z FX102Z Light-ON, Dark-ON, Switch (light-ON/dark-ON) 1 pc(s)

Item no:1429217

Available soon

Conrad Electronic

M8 (4-pin)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 164.99^*

Panasonic FX101PCC2 Light-wave Conductor Amplifier

Item no:505007

Fast track dispatch on Wed 4 Nov

7 Piece(s)Conrad Electronic

Cable, open end

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

Panasonic FO amplifier FX102PCC2 FX102PCC2 Light-ON, Dark-ON, Switch (light-ON/dark-ON) 1 pc(s)

Item no:1429216

Unavailable

Conrad Electronic

Cable, open end

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Panasonic FX101PZ Light-wave Conductor Amplifier

Item no:505018

Currently not available

Conrad Electronic

M8 (4-pin)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Documents & Downloads

Datasheet

Datasheet 1429295 Panasonic FO amplifier FX101Z FX101Z Light-ON, Dark-ON, Switch (light-ON/dark-ON) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1429295 Panasonic FO amplifier FX101Z FX101Z Light-ON, Dark-ON, Switch (light-ON/dark-ON) 1 pc(s)

Description

Plastic housing - Housing width 9 mm Simple learning on the device (Teach-In). Energy saving mode BY switched off dispaly Keys lock possible DIN rail or wall mounting possible Suitable for light wave conductors up to d = 2.2 mm.
