Name: PCE Instruments PCE-PCM 1 Clamp meter Digital Data logger
Brand: PCE Instruments
SKU: 2452555
Availability: InStock

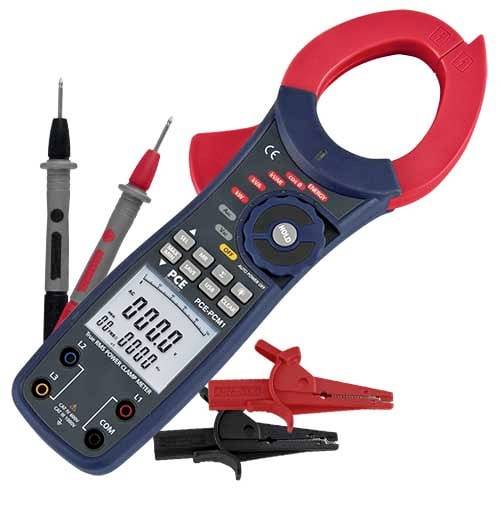

Digital clamp meter with red current clamp, probes, and alligator clips for measuring electrical current and voltage.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 229.99 / piece)

€ 229.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

3-phase clip-on ammeter PCE-PCM 1

Power measurement:
Active power (kW)
Apparent power (kVA)
Reactive power (kVAR)
Power factor (cos φ)
Phase angle
Active energy meter (kWh)
Voltage (TRMS)
Current (TRMS)
Frequency
99-point data logger can be displayed

Technical specifications

Technical data Voltage (AC/TRMS, 50 ... 200 Hz) 100 / 400 / 750 V ± (1.2 % + 5 dgt.) Current (AC/TRMS, 50 ... 200 Hz) 40 / 100 / 400 / 1000 A ± (2.0 % + 5 dgt.) Active power measurement 4 ... 750 kW ± (3.0 % + 5 dgt.) Apparent power measurement 4 ... 750 kVA ± (3.0% + 5 dgt.) Binding power 4 ... 750 kVAr ± (3.0% + 5 dgt.) Active energy (kWh-meter) 1 ... 9999 kWh ± (3.0% + 2 dgt.) Power factor (cos φ) at > 10 A and > 45 V 0.3 ... 1 inductive and capacitive ± (0.02 + 2 dgt.) Phase angle 0 ... 90° ± 2.0° Frequency 50 ... 200 Hz ± (0.5 % + 5 dgt.) Internal memory 99 measured values Display 9999 counts with analogueue bar graph, background lighting Operating voltage 9 V block battery Dimensions (W x D x H) 105 x 47 x 294 mm Weighs 495 g. CAT IV 600 V, CAT III 1000 V MAX. Cable diameter 45 mm

Product type: Clamp meter

Measurement type (details): True RMS

Interfaces: USB

Height: 294 mm

Width: 105 mm

Length: 47 mm

Weight: 495 g

: Manufacturer's standards (no certificate)

Current reading: AC

Type: PCE-PCM 1

Display: Digital

Dim: (L x W x H) 47 x 105 x 294 mm

Features: Data logger

Documents & Downloads

Datasheet

Datasheet 2452555 PCE Instruments PCE-PCM 1 Clamp meter Digital Data logger

User & Safety Instructions

User & Safety Instructions 2452555 PCE Instruments PCE-PCM 1 Clamp meter Digital Data logger

Description

Internal data storage, USB interface and software Power measurement for up to 3-phase / Energy meter / TRMS The PCE-PCM1 power clamp is a versatile measuring device for determining the power consumption and energy consumption. In addition to the measurement of alternating currents and voltages, this power clamp can also determine the current power consumption in one and three-phase networks as well as the energy consumption (kWh) in single-phase networks. Furthermore, the phase shift angle and the power factor are also shown on the large display with background lighting. This power clamp meter enables a quick and easy assessment of the power consumption and energy consumption of machines and plants. The compact dimensions and the robust plastic housing allow mobile use by the service engineer or engineer on site. Individual data records can be stored in the internal data memory of the power measuring pliers for later viewing. Furthermore, the integrated USB interface enables the online transfer of currently measured values to the PC, where these are displayed as graphics or tables.

This text is machine translated.
