Name: PCE Instruments PCE-RVI 2 Viscometer
Brand: PCE Instruments
SKU: 2583843
Availability: InStock

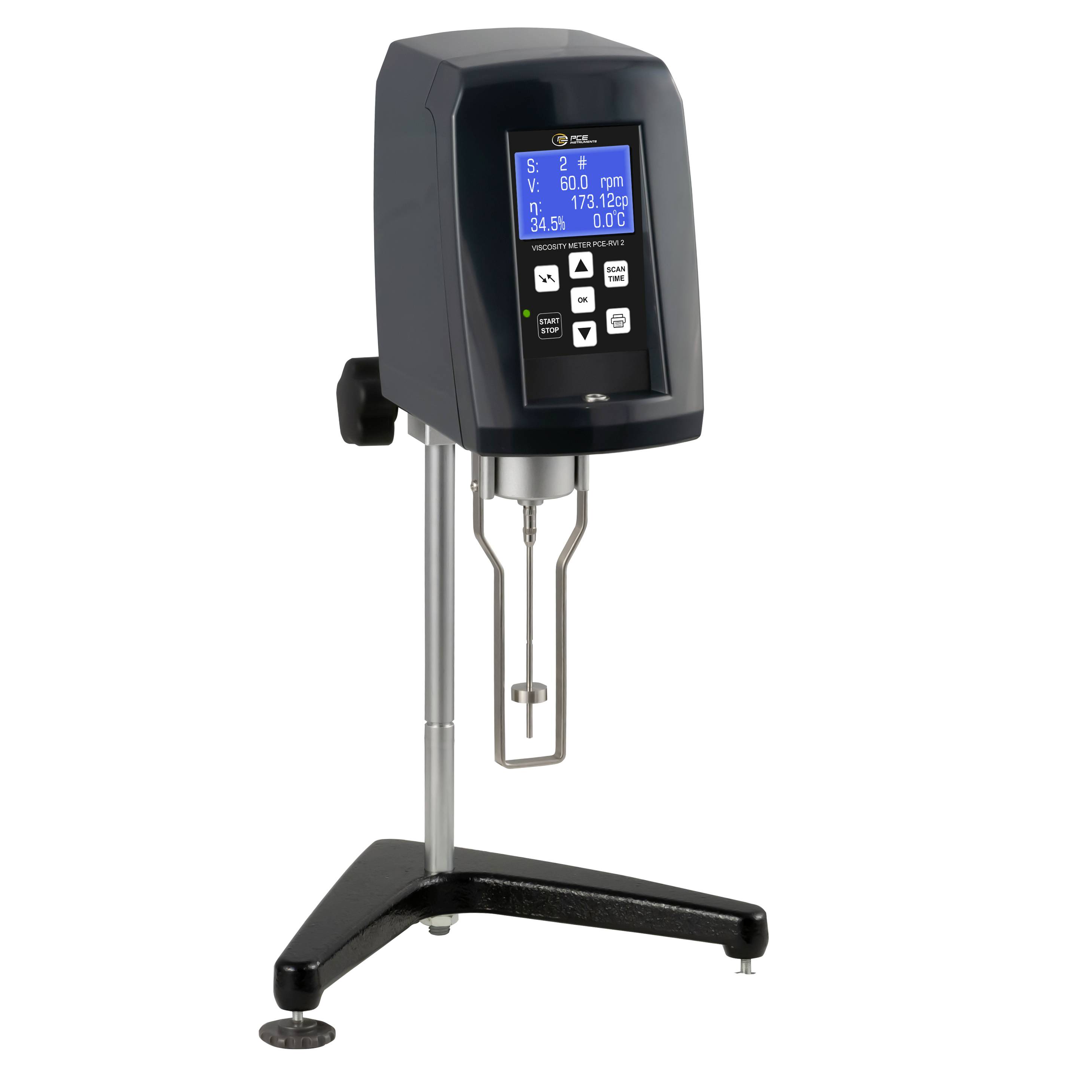

Laboratory viscometer on a stand, with a digital display and spindle for measuring fluid viscosity.

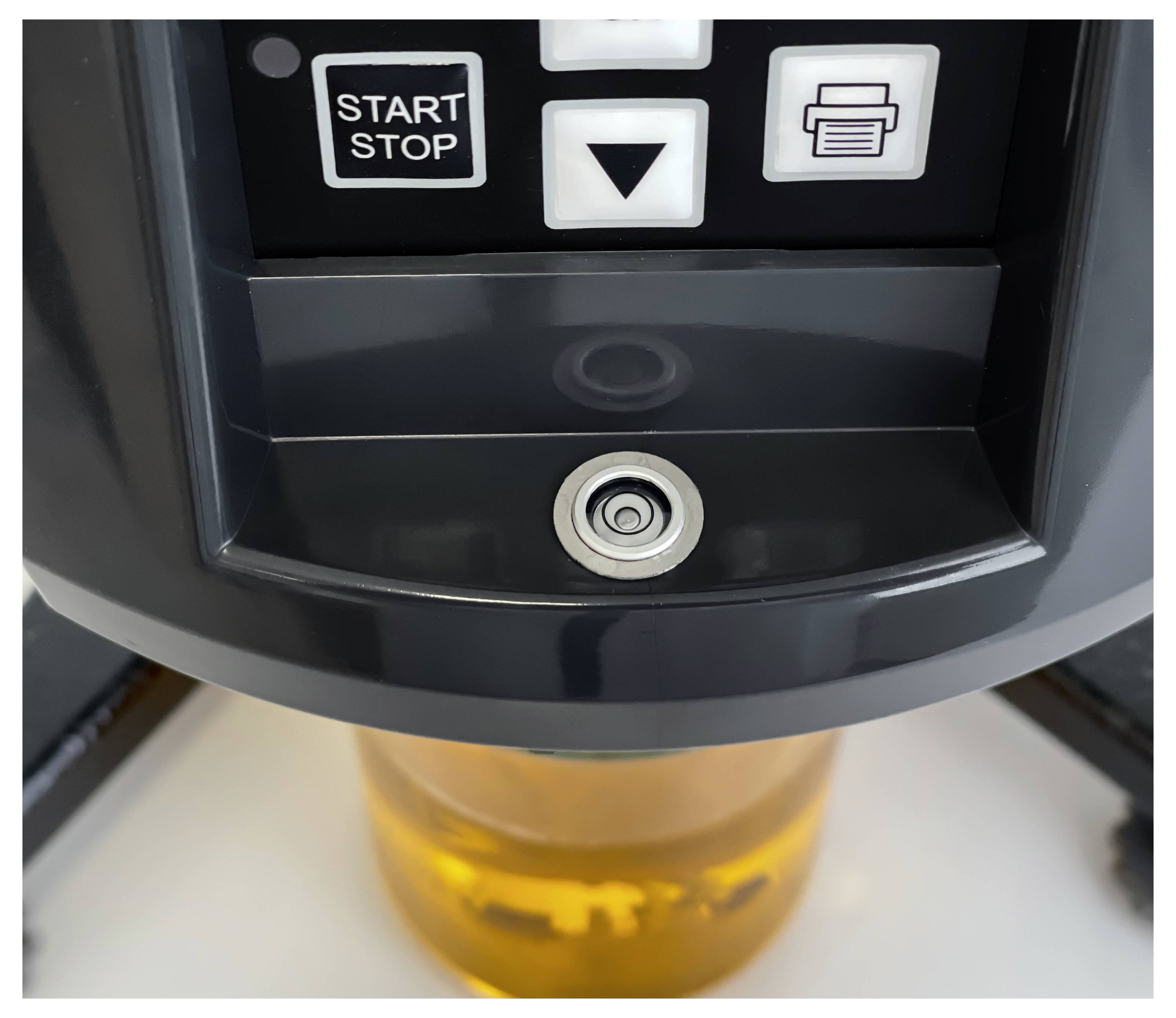

Close-up of a coffee machine control panel with 'START STOP' and print buttons above a spout filling a glass with amber liquid.

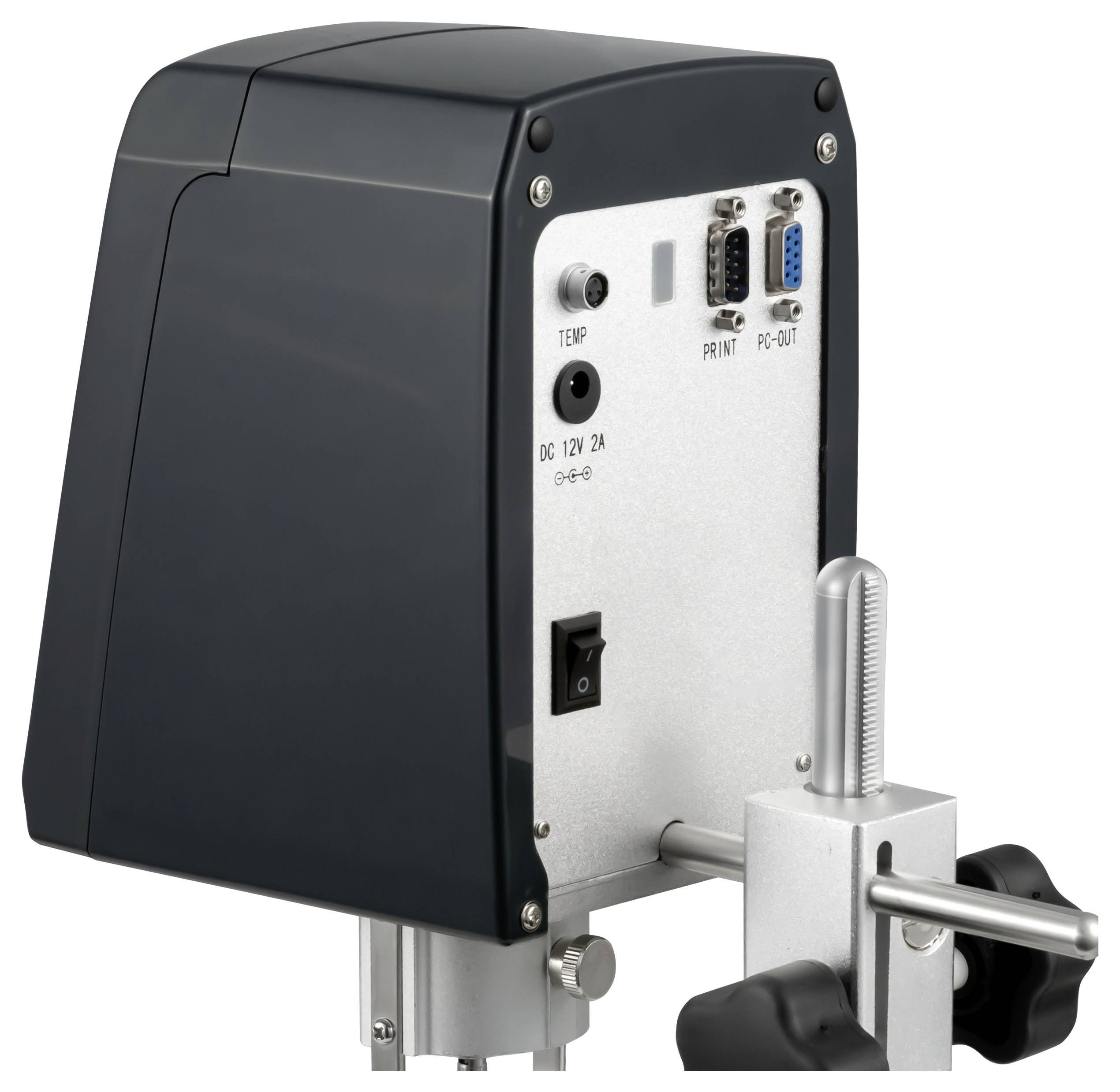

Industrial device rear panel with TEMP port, DC 12V 2A input, on/off switch, and PRINT and PC-OUT connectors mounted on a bracket.<br>

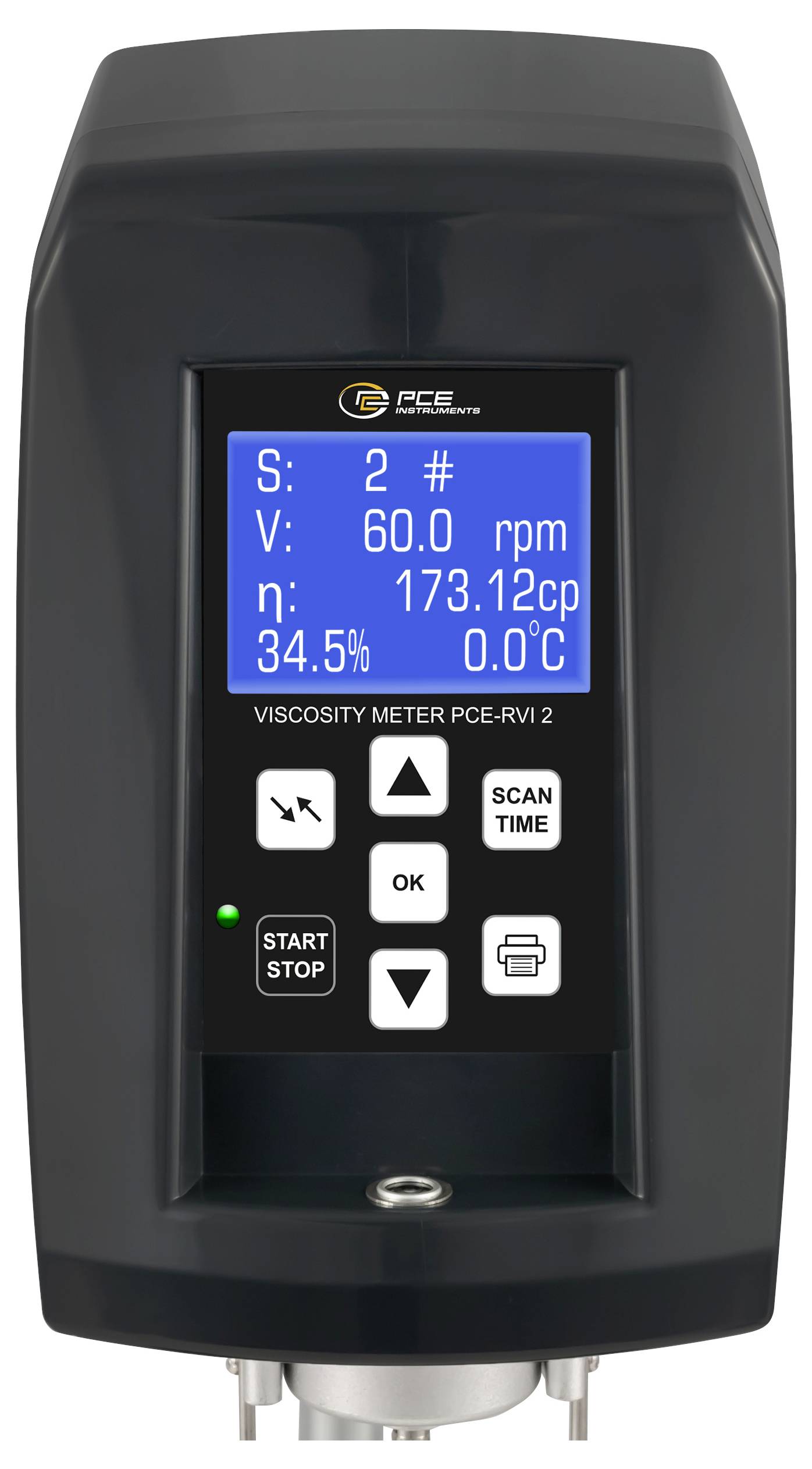

PCE viscosity meter showing live readings on a blue display, including 60.0 rpm, 173.12 cP, 34.5%, and 0.0°C, with control buttons below.

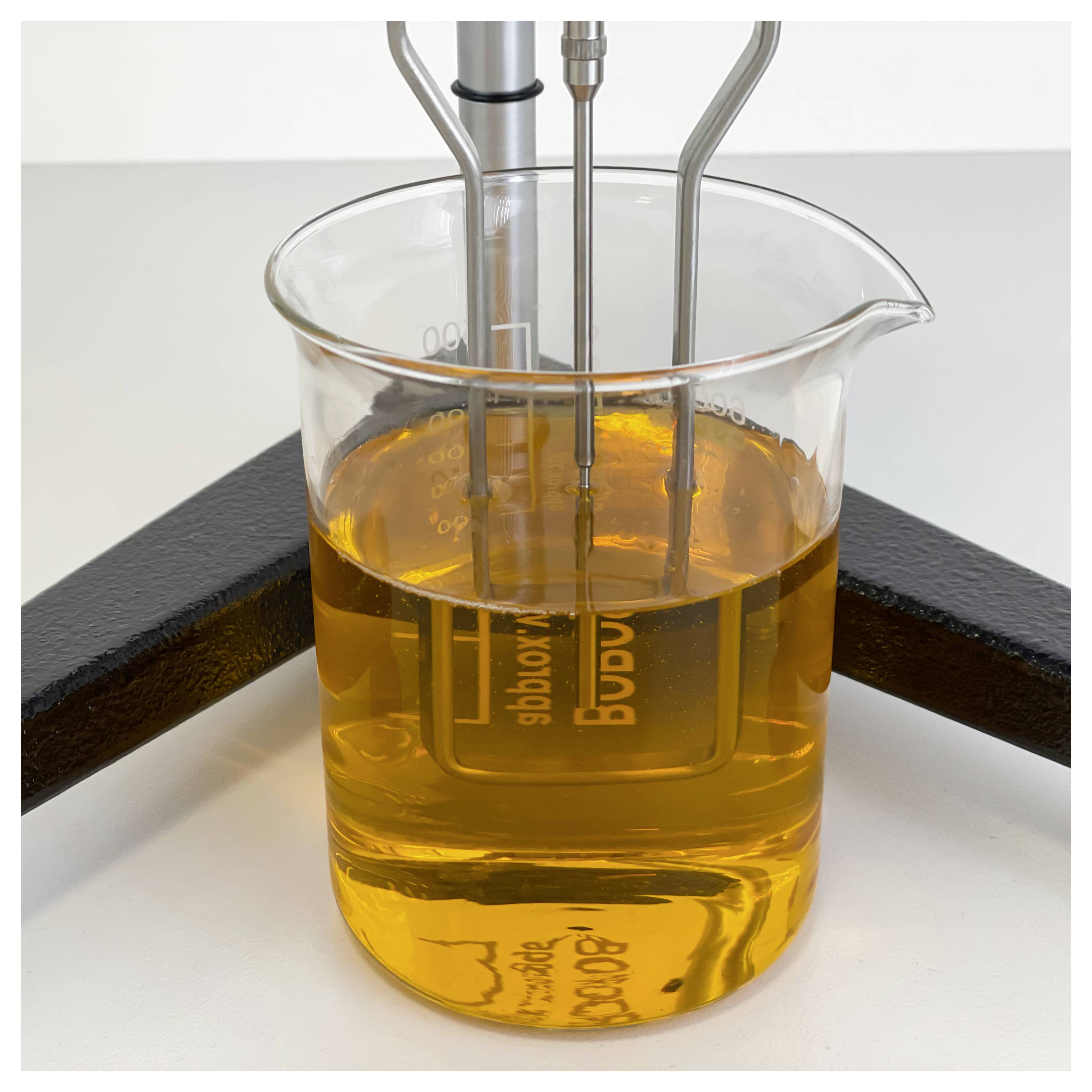

Laboratory beaker of amber liquid with immersed probes or electrodes, shown in a scientific measurement setup on a benchtop.

A person is operating an espresso machine and holding the portafilter. Hands are visible in a bright, clean room.

A scientist in a laboratory is measuring the viscosity of a liquid using a viscometer. The measurement value is displayed on the device.

1/7

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,399.00 / piece)

€ 1,399.00

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Rotary Viscometer PCE-RVI 2

Spindle set consisting of L1, L2, L3, L4Measuring accuracy ±2 % of MB. Temperature measurement (optional)Built-in level for levelingOptional with analysis softwareMains powered

Technical specifications

Measurement range 1 - 100,000 cpAccuracy <: ±2% of MB.Resolution 0.01 cpRepeatability ±0.5%Adjustable measuring time: 30 sec - 1 hour or endlessResolution of the measuring time: 30 secondsAdjustable speed: 6, 12, 30, 60 RPMSample quantity 250 - 400 mlHeight adjustment: 25 cm

Product type: Viscometer

: Manufacturer's standards (no certificate)

Power supply (details): 100 - 240 V AC

Dim: (L x W x H) 400 x 200 x 430 mm

Weight: 4.8 kg

Temperature reading range: 0 up to 100 °C

Temperature reading range (max.): 100 °C

Temperature reading range (min.): 0 °C

Width: 200 mm

Height: 430 mm

Length: 400 mm

Documents & Downloads

Datasheet

Datasheet 2583843 PCE Instruments PCE-RVI 2 Viscometer

User & Safety Instructions

User & Safety Instructions 2583843 PCE Instruments PCE-RVI 2 Viscometer

Description

The rotary viscometer has a measurement range from 1 to 100,000 cp. The viscosity is determined by the rotary viscometer on the basis of a mechanical resistance that acts opposite to the rotational movement of a spindle. The rotary viscometer can be operated at an adjustable speed between 6 and 60 RPM. Many liquids are subjected to thermal stress and therefore change their viscosity, such as engine oils. This is exactly where the stationary viscometer is used. An immersion temperature sensor (optional) can be used to determine the temperature of a test sample during measurement between 0 and 100 °C. In order to obtain a course of measurement, the rotary viscometer can be connected to a PC via the RS232 interface. The optional software can then be used to create a temperature and viscosity curve during a measurement. To ensure that the measuring spindle is always perpendicular to the medium to be measured, the rotary viscometer can be leveled via the feet. A spirit level is located on the rotary viscometer to verify correct alignment. At the same time, the rotary viscometer can adjust the height of the test device by 25 cm in order to position the spindle appropriately.

This text is machine translated.
