Buy PCE Instruments PCE-SC 09 Calibrator SPL

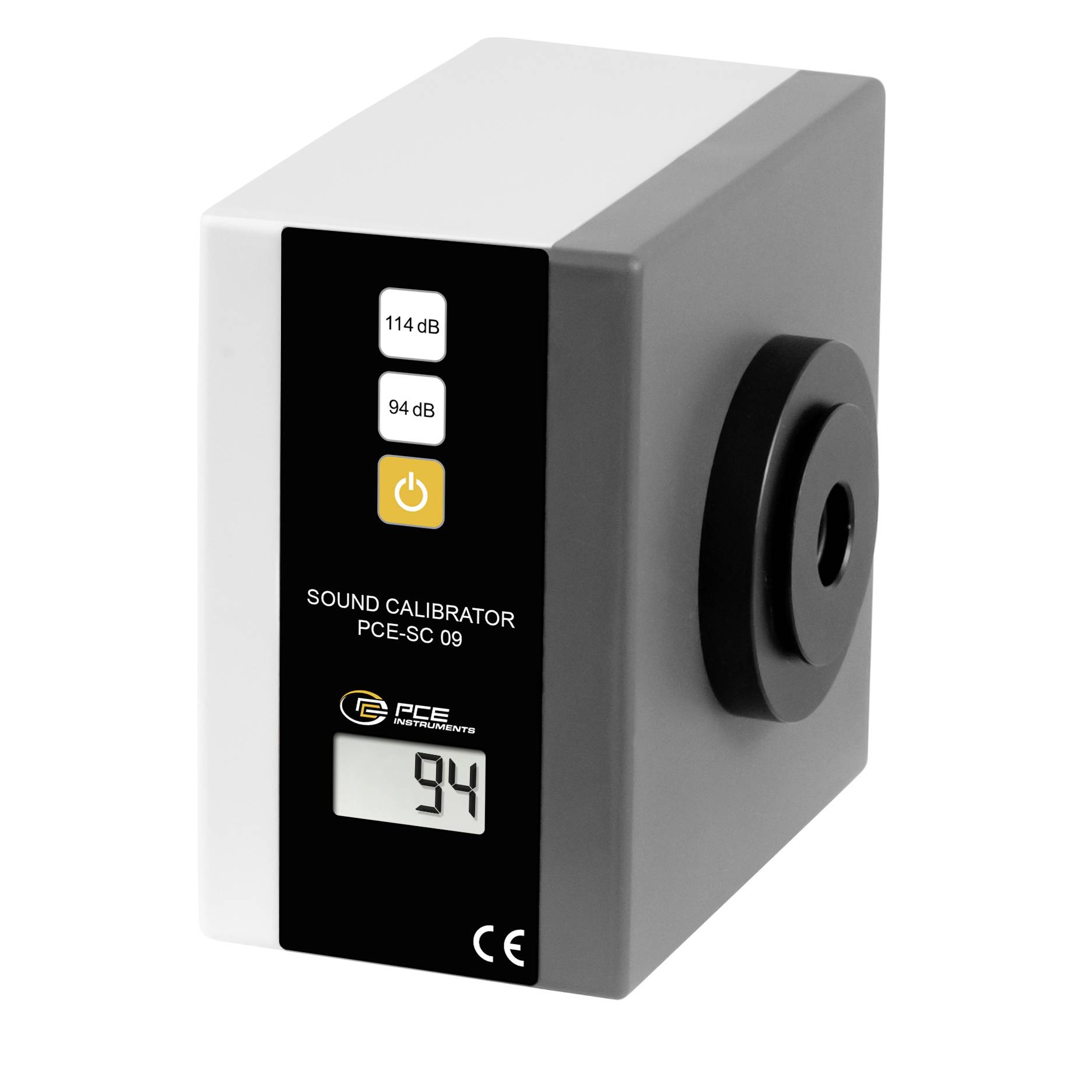

Sound calibrator device with 94 dB digital display, 114/94 dB buttons, and side microphone opening.

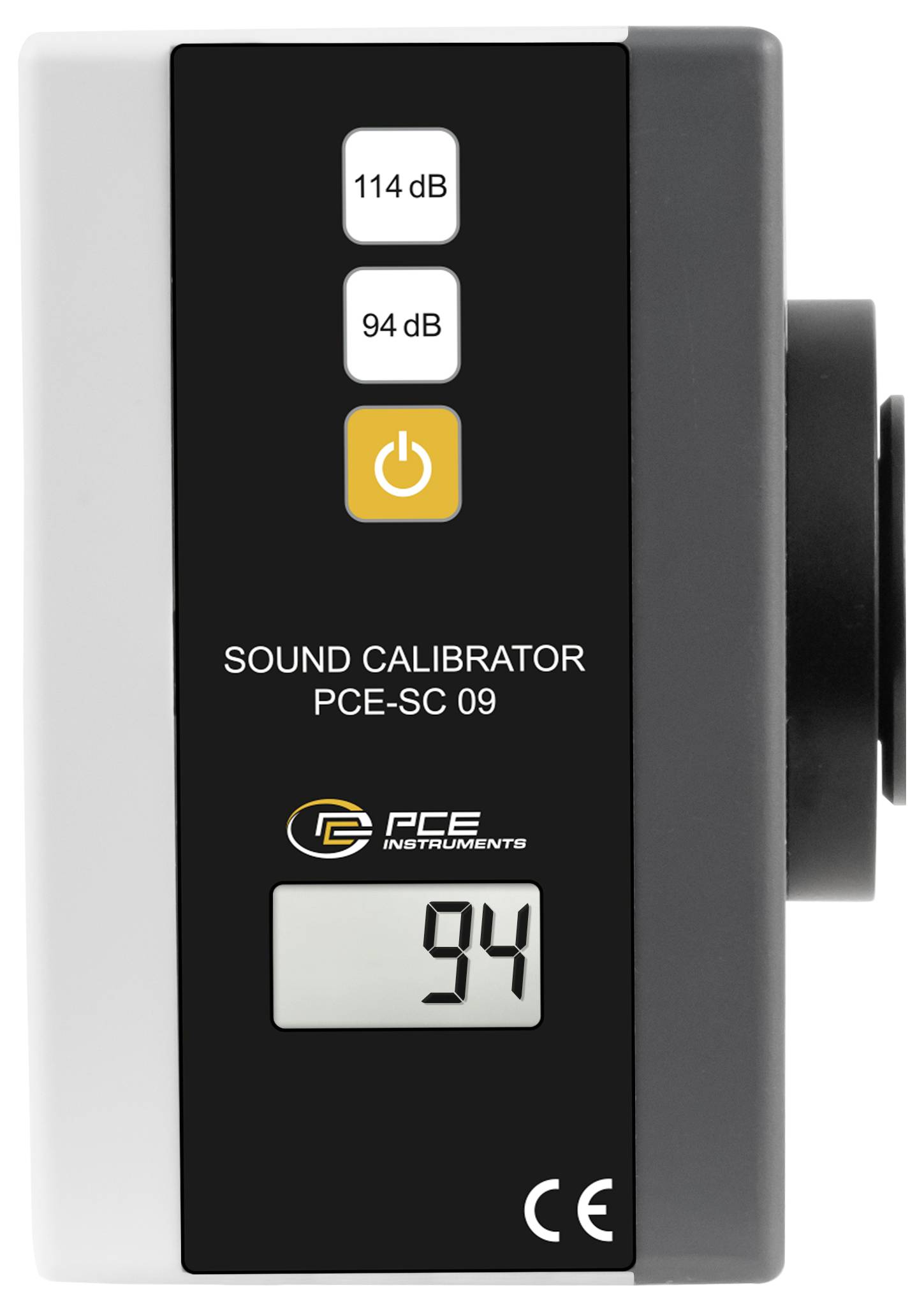

Front view of a PCE sound calibrator showing 94 dB on the digital display, with 94 dB and 114 dB buttons and a power button visible.

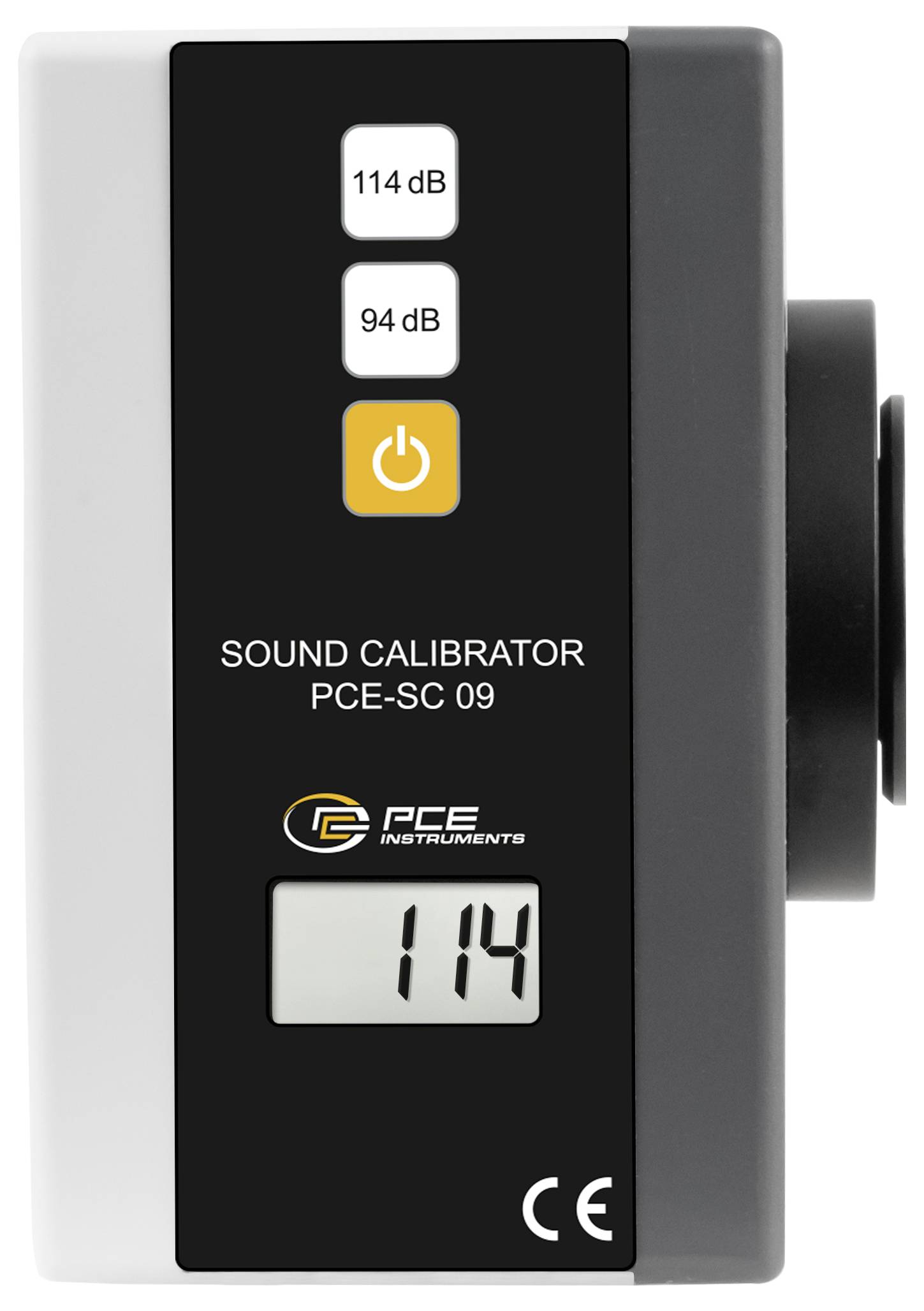

Front view of a sound calibrator device labeled 'PCE-SC 09' with 114 dB and 94 dB buttons and a digital display reading 114.

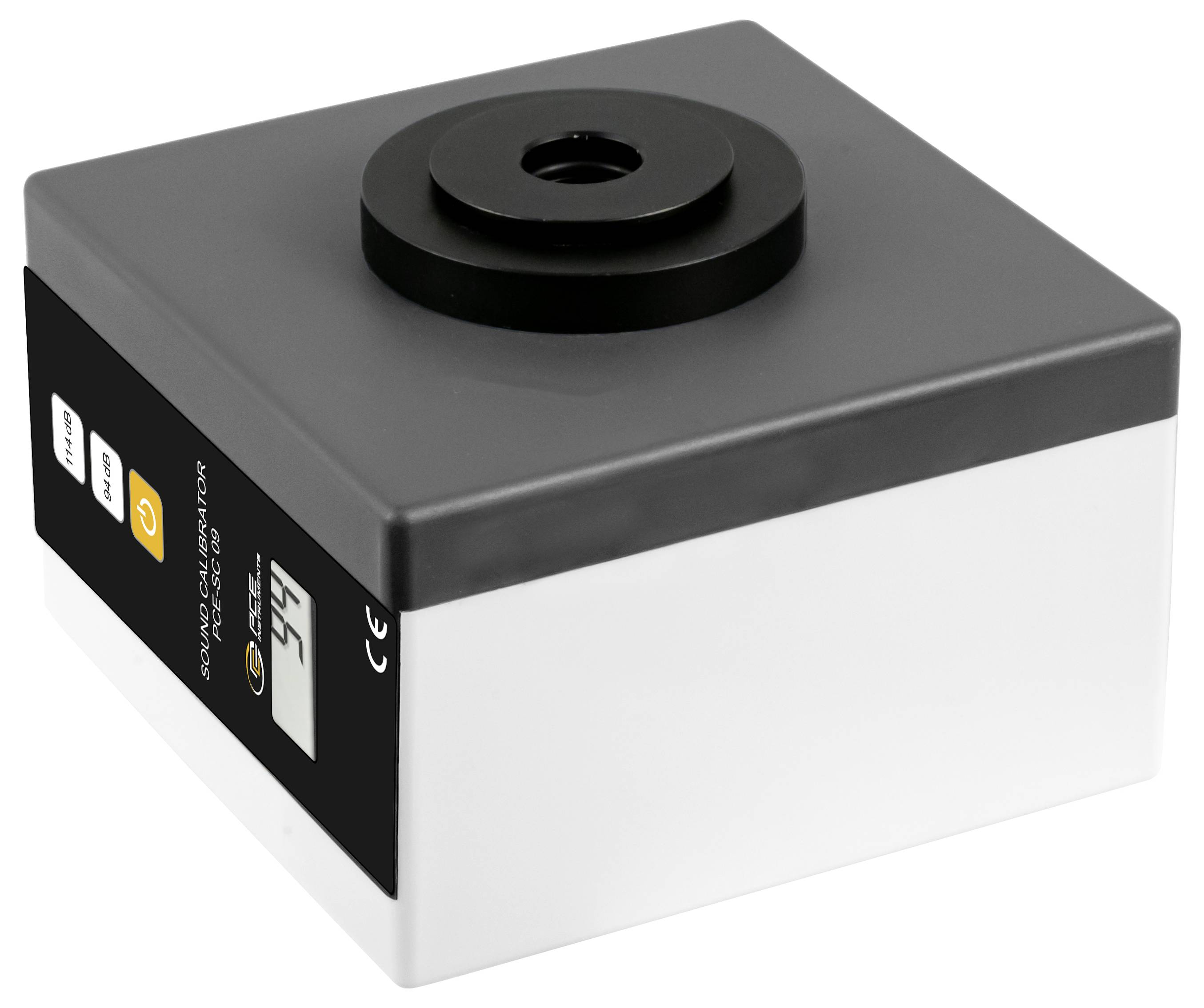

Black-and-silver cube-shaped camera or sensor housing with a circular lens mount on top and label panel on the side, shown on a white background.

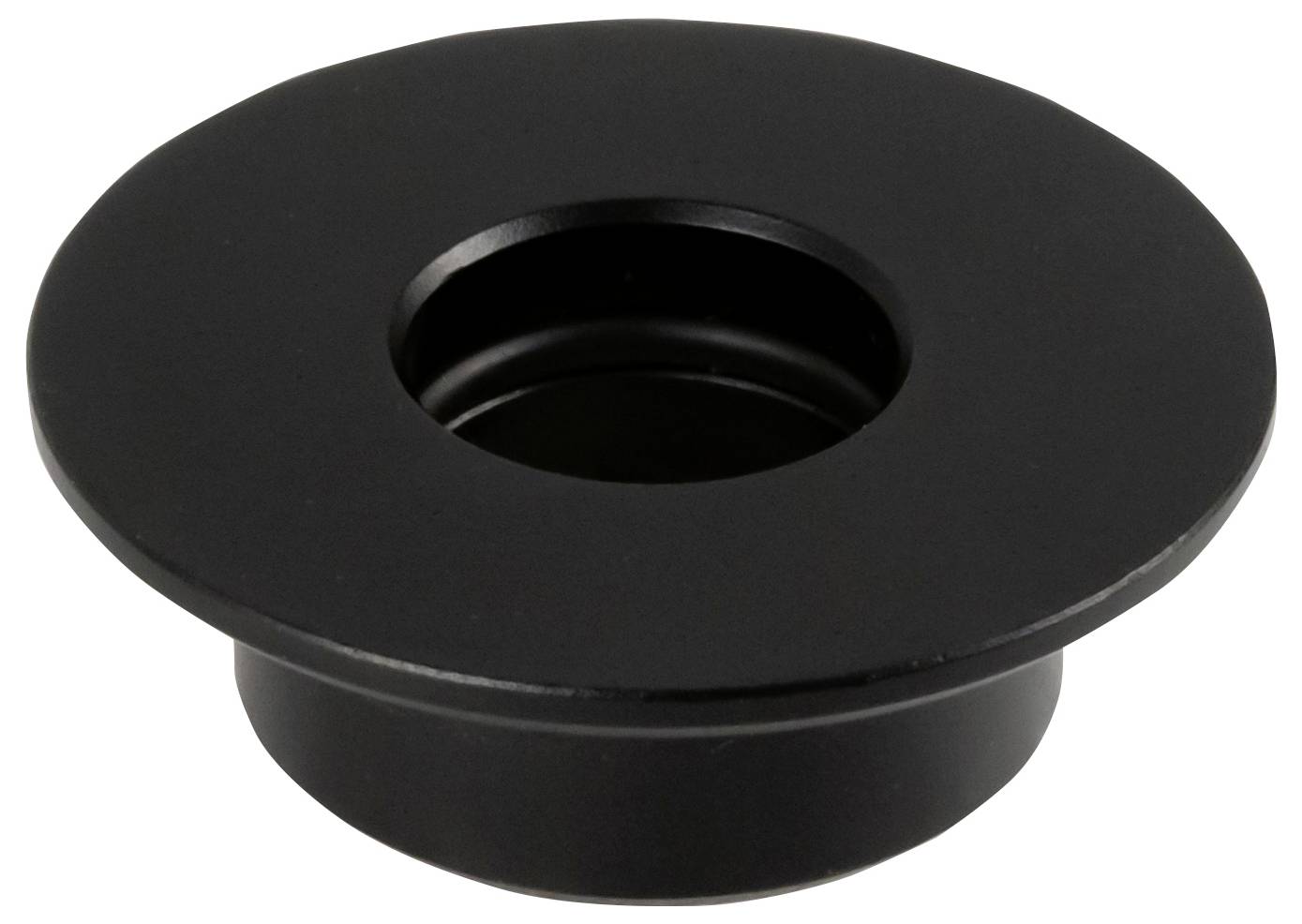

Black recessed cup or grommet with a wide flange and hollow center, shown on a white background.

1/5

Datasheet (PDF)

Dispatches on Tue, 22 Dec 2026

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 500.00 / piece)

€ 500.00

plus VAT.

Report legal concerns

Highlights & Details

Class I Sound - Calibrator PCE-SC 09

Sound pressure level 94 and 114 db
For evaluation filter A,B,C,D
Ready to use immediately
Accuracy class 1, IEC 942
Easy to Use
Adapter for different microphones

Technical specifications

Sound pressure level 94 dB, 114 dB
Accuracy class: IEC 942, class 1

Dim: (L x W x H) 100 x 100 x 75 mm

Weight: 250 g

Height: 75 mm

Length: 100 mm

Width: 100 mm

: Manufacturer's standards (no certificate)

Unit of measurement: SPL

Operating voltage: 1.5 V

Product type: Calibrator

Documents & Downloads

Datasheet

Datasheet 2299586 PCE Instruments PCE-SC 09 Calibrator SPL

User & Safety Instructions

User & Safety Instructions 2299586 PCE Instruments PCE-SC 09 Calibrator SPL

Description

The sound calibrator is a battery-operated sound source. The sound calibrator can be used to perform direct and fast calibrations of sound level meters and other noise measurement systems. The adapter attachments can be used to connect and control sound level sensors of 1, ½ and ¼ inches to the sound calibrator. The calibration frequency of the sound calibrator is 1000 Hz. This is the reference frequency for the internationally standardized evaluation curves. This means that you can calibrate sound measuring instruments with evaluation filters A, B, C, or D. The calibration pressure for this sound calibrator is 94 ±0.3 dB (1 Pa) and 114 ±0.3 dB (10 Pa). Thus, the sound calibrator is used, for example, in quality assurance, to test sound level meters or also in calibration laboratories.

This text is machine translated.
