Name: PCE Instruments PCE-TC 5N IR camera -40 up to 80 °C 240 x 320 Pixel incl. IR thermometer
Brand: PCE Instruments
SKU: 3841684
Availability: InStock

Handheld thermal imaging camera with screen showing a hot object at 30.3°C on a blue heat map.<br>

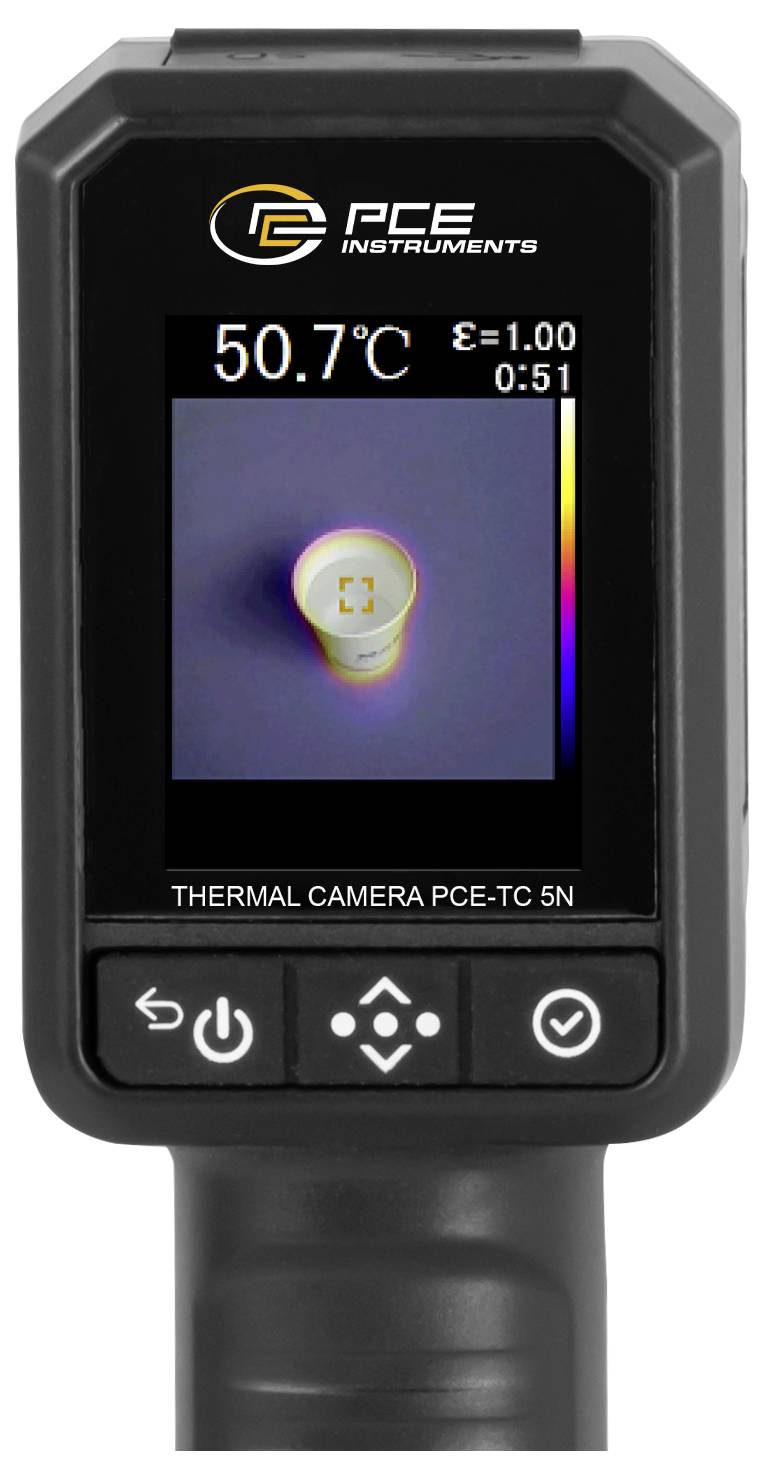

Handheld thermal camera displaying a heat image of a light bulb at 50.7°C, with a color temperature scale and PCE Instruments branding.

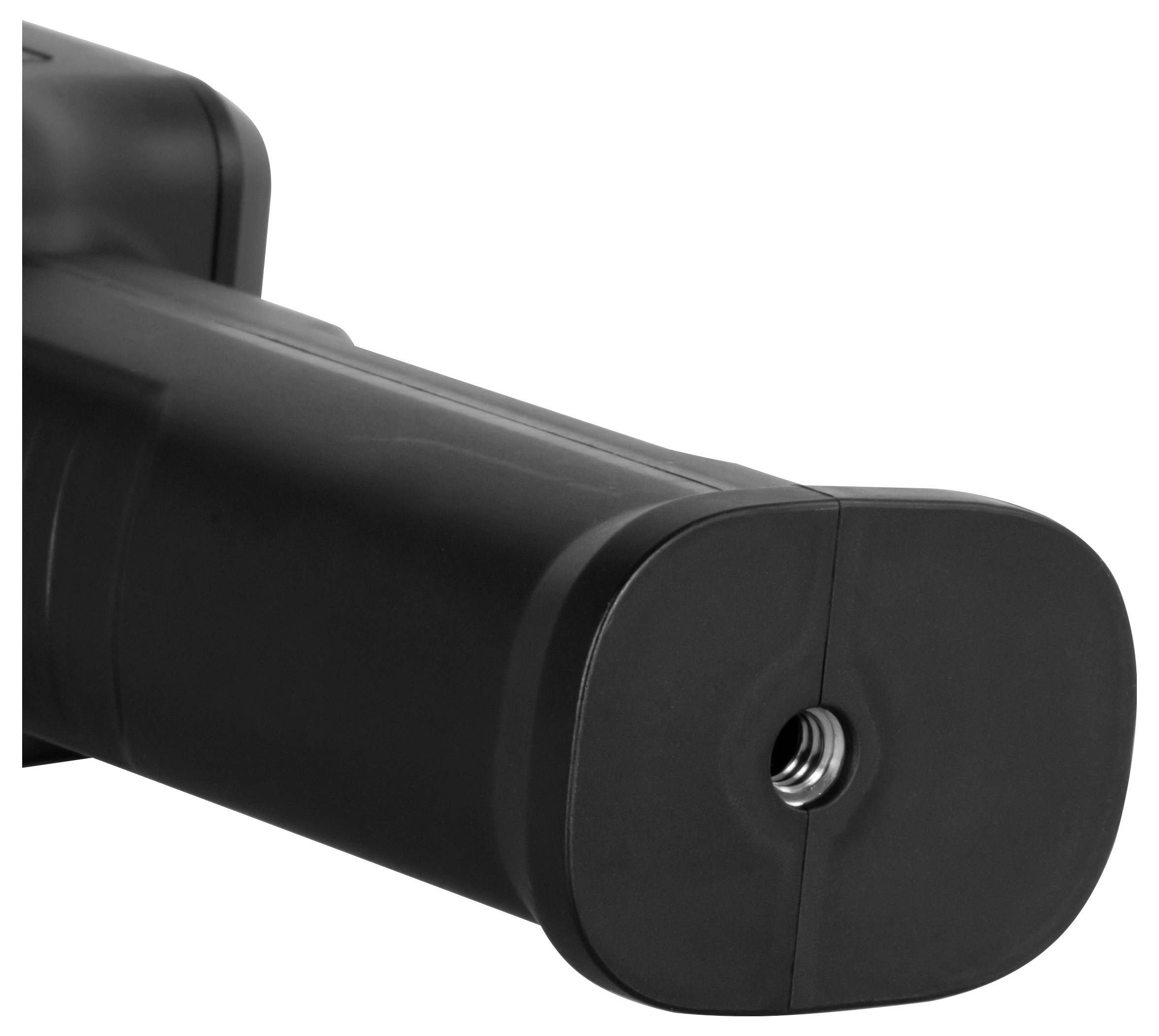

Close-up of a black cylindrical metal or plastic hardware part with a threaded hole at the end, shown on a white background.

Close-up of a black handheld thermal imaging camera sensor with two lens openings and a side grip, shown on a white background.

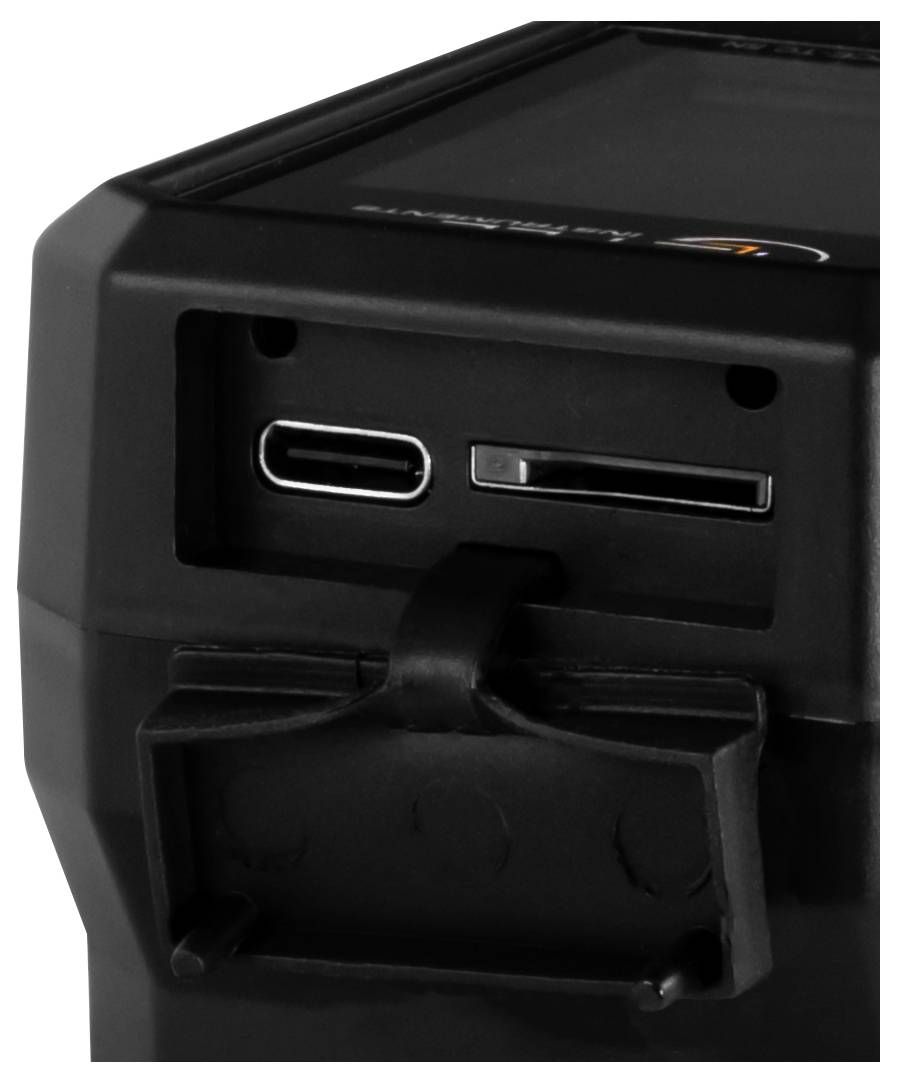

Close-up of a black electronic device showing a USB-C port, a card slot, and a protective cover on the front panel.

Hand holding a thermal imaging camera showing a color heat map inside a refrigerator, with temperature readings on the screen.<br>

Hand holding a thermal camera aimed at an electrical panel, showing a heat map with a hot spot and temperature readings.

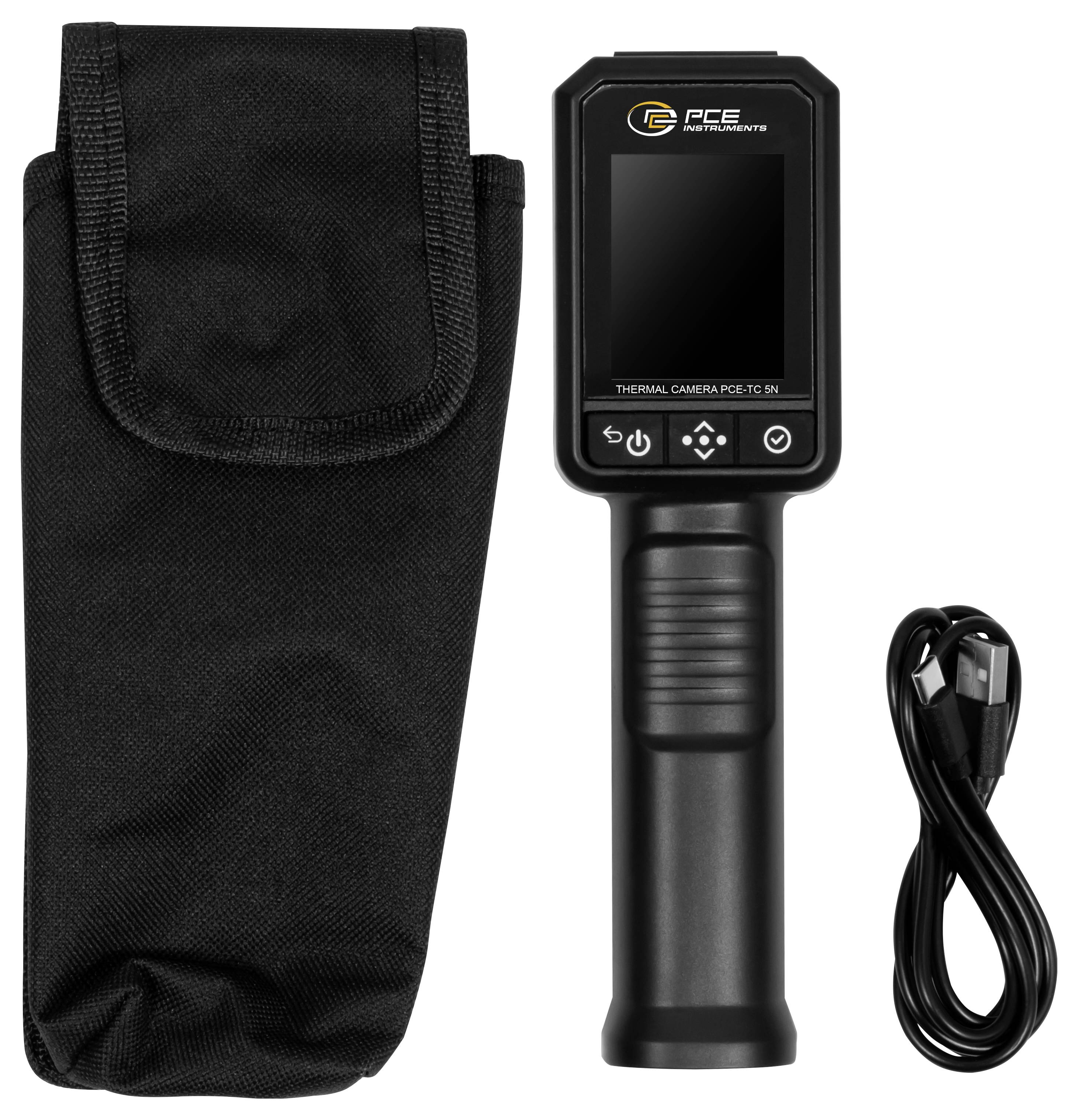

Thermal camera kit with handheld imager, carrying pouch, and USB charging cable on a white background.

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Mon 2 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 279.00 / piece)

€ 279.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

PCE Instruments Thermal Imager PCE-TC 5N |-20 … 1000 °C |Resolution 0.1 °C |32 x 32 pixels |Frame rate 9 Hz

Temperature range: -20 °C ... +1000 °C.
Infrared detector resolution 32 × 32 pixels
Built-in visible-light camera (300000 pixels)
Adjustable emission level: 0.01 ... 1
3 different color palettes
Adjustable Alarm limits
IR/VIS image fusion
Internal memory 8 MB, micro SD extension up to 32 GB
2 inches TFT color display
Frame rate: 9 Hz

Technical specifications

Infrared temperature
Measurement range -20 - +1000 °C
Resolution 0.1 °C
Accuracy +/-3 °C or +/-3 % from MW. (Greater value applies), @ 15 ... 40 °C ambient temperature
General Technical Specifications
Resolution infrared detector: 32 x 32 pixels (1024 pixels)
Display type TFT LCD display
Display size 2 inches
Display resolution: 240 x 240 pixels
Storage medium Internal memory
Storage capacity 8 MB
Memory capacity (additional information) Memory expansion Micro SD up to 32 GB
Camera resolution 300000 pixels (VIS)
Automatic shutdown of ... to 5 ... 30 min.
Audible alarm
Alarm mode upper value, lower value
Emission level from/to 0.01 ... 1
Wavelength range 8 ... 14 µm
Field of view (FOV) 33°
Colour palette rainbow, iron red, gray
Image / video format bmp
Thermal sensitivity 200 mK
Alarm settings -20 ... 1000 °C.
Frame rate: 9 Hz
Menu language English (US), English (GB), Chinese
Protection class (device) IP20
Power supply 5 V/DC
Battery/battery 1 x 3.7 V internal , lithium
Capacity: 1000 mAh
Power 3.7 Wh
Operating conditions -10 ... 40 °C , 0 ... 85 % r. F.
Storage conditions -20 ... 75 °C , 0 ... 85 % r.h.
Dimensions (L x W x H) 187 x 53 x 56 mm
Weight 167 g

Type: PCE-TC 5N

Product type: IR camera

Bolometer array: 240 x 320 Pixel

Interfaces: USB
microSD

Temperature reading range (max.): 80 °C

Colour schemes: 7

Temperature reading range (min.): -40 °C

Optics: 33°

Display resolution: 240 x 320 Pixel

: IP20

Thermal sensitivity: 200 mK

Dim: (L x W x H) 187 x 53 x 56 mm

Temperature resolution: 0,1 °C

Display: 240 X 320 p

Emission level (max.): 1

Emission level (min.): 0.01

Focus: Fixed-focus

Weight: 110 g

Basic accuracy: 3 %

Accuracy ± °C: 3 °C

Temperature reading range: -40 up to 80 °C

Width: 53 mm

Height: 56 mm

Length: 187 mm

Connection: USB

Power supply (details): 5 V DC

Features: incl. IR thermometer

: Manufacturer's standards (no certificate)

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3841684 PCE Instruments PCE-TC 5N IR camera -40 up to 80 °C 240 x 320 Pixel incl. IR thermometer

User & Safety Instructions

User & Safety Instructions 3841684 PCE Instruments PCE-TC 5N IR camera -40 up to 80 °C 240 x 320 Pixel incl. IR thermometer

Description

The infrared camera is a compact measuring device for contactless temperature measurement for craftsmen, technicians and maintenance personnel. The infrared camera combines infrared measurement and visible image display for a quick detection of heat sources and temperature differences.

The thermal imager captures temperatures from -20 °C to +1000 °C and allows the emission level to be set from 0.01 to 1 for precise measurement results. The alarm value at the top and bottom can also be set. If the defined temperature limits are exceeded or fallen below, the infrared camera can inform the user accordingly of the deviation. The thermal sensitivity of 200 mK enables the detection of small temperature differences

The infrared detector has a resolution of 32 x 32 pixels (1024 pixels). In addition, a visible light camera with 300,000 pixels is integrated that supports IR/VIS image fusion. The wavelength range is 8 ... 14 µm, the frame rate is 9 Hz and the field of vision is 33°.

The display is done via a 2 inch TFT LCD display with a resolution of 240 x 320 pixels. The color palettes of iron red, rainbow and gray are available for different analysis requirements. The thermal imager has internal 8 MB memory for image storage and supports memory expansion via microSD cards up to 32 GB.

The infrared camera is especially suitable for maintenance, inspection and diagnostic work, such as for checking electrical systems, machines, heating and air-conditioning systems as well as for quick localization of temperature differences.
