Name: Phoenix Contact 1440782 SACC-M12FS-4QO-0,75-VA Field Attachable Plug Connector M12
Brand: Phoenix Contact
SKU: 749017
Availability: InStock

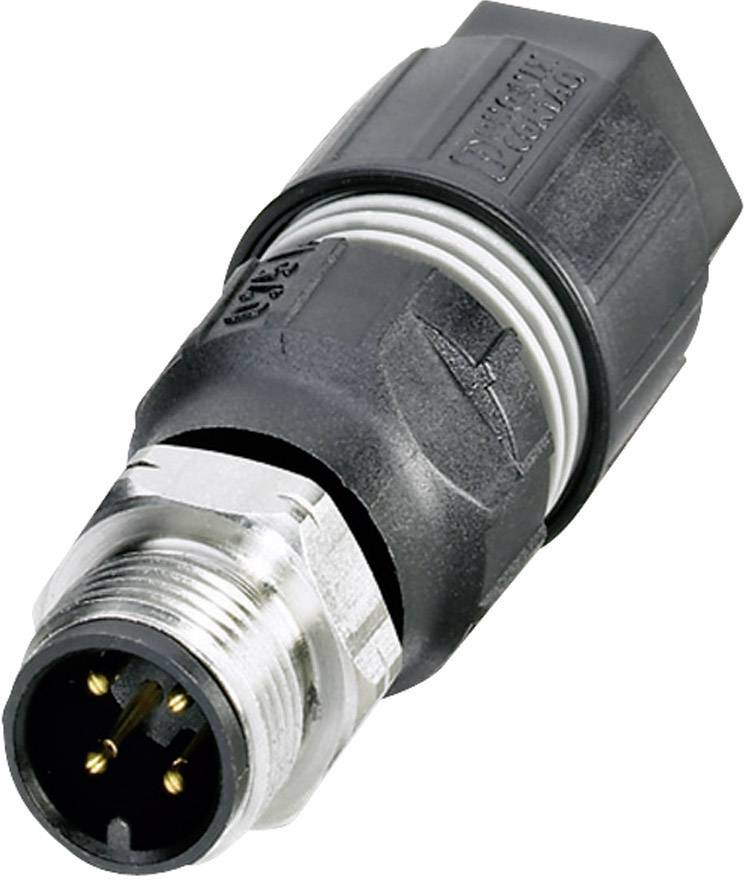

A black and silver industrial multi-pin plug, used for connecting electrical lines in industrial applications.

Product type

Sensor/actuator connector

Connector type

Socket, straight

Connector standard

Sensor connector

Connection side A

M12 socket, straight

Connection side B

Customisable

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 19.99 / piece)

€ 19.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Phoenix Contact 1440782 SACC-M12FS-4QO-0,75-VA Field Attachable Plug Connector M12

SACC-M12FS-4QO-0,75-VA
PLUSCON field

Technical specifications

Packaging type: Piece

Type: SACC-M12FS-4QO-0,75-VA

Product type: Sensor/actuator connector

Connector type: Socket, straight

Connector standard: Sensor connector

Connection side A: M12 socket, straight

Connection side B: Customisable

No. of pins: 4

Nominal voltage: 250 V

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.75 mm²

Outside Ø: 2.60 mm

Connection: Cut & Clip

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: A

: IP65
IP67

Min. temperature: -25 °C

Max. temperature: +80 °C

Manufacturer part #: 1440782

Content: 1 pc(s)

Cable Ø (max.): 8 mm

Cable Ø up to: 4 mm

Cable Ø range: 4 - 8 mm

Cable diameter (details): 5 mm

: Other

: 250 V

: FALSE

: Other

: Other

: Other

: 80-80 °C

: V0

: Insulation displacement connection

: Nickel

: III

: 3

: Straight

: 0.75-0.75 mm²

: FALSE

: 4 A

: 100

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 749017 Phoenix Contact 1440782 SACC-M12FS-4QO-0,75-VA Field Attachable Plug Connector M12

User & Safety Instructions

User & Safety Instructions 749017 Phoenix Contact 1440782 SACC-M12FS-4QO-0,75-VA Field Attachable Plug Connector M12

Description

For a quick packing of often different cable lengths, e.g., on site, a big range of field configurable plug connectors is available. The M12-Series is available with screw or spring clamp connection and QUICKON-.Quick connection technology.
For EMV conformed applications, shieldable,field configurable plug connectors are available. They distinguish themselves by a robust, metallic cover with corresponding attenuation of shielding.
