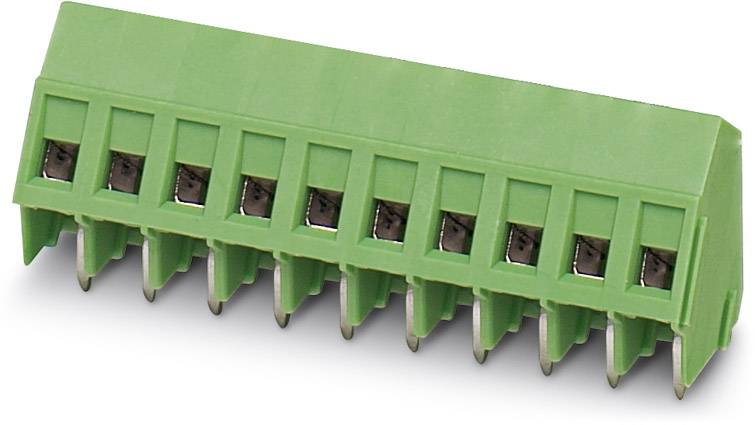

Image similar
Phoenix Contact 1733428 Screw terminal 1.50 mm² Number of pins 3 Green 250 pc(s)
Product type
Screw terminal
CS
5.00 mm
Pins per row
3
Number of pins
3
Connection
Screw terminal
Print
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 250 pc(s))
Total (€ 1.10 / piece)
€ 275.00
incl. VAT
14-day return policy included
Highlights & Details
PCB terminal block SMKDSP 1,5/ 3
- Content 250 pc(s)
Technical specifications
- Type
SMKDSP 1,5/ 3
- Product type
Screw terminal
- Features
+ extractor sleeve
- CS
5.00 mm
- Pins per row
3
- Number of pins
3
- Series
SMKDSP
- Stripping length (max.)
7.00 mm
- Connection
Screw terminal
Print
- Nominal current
17.5 A
- Cross section (flexible) (min.)
0.14 mm²
- Nominal current - rounded value
17.5 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
26
- Connector orientation
At an angle (to the PCB)
- AWG max.
14
- Contact material
Tin plated
- Factory colour
Green
- Actuation direction
At an angle (to the PCB)
- Manufacturer part #
1733428
- Industrial packaging
Yes
- Content
250 pc(s)
- Nominal voltage
400 V
- Width
18.80 mm
- Height
15.00 mm
- Length
13.40 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 773442 Phoenix Contact 1733428 Screw terminal 1.50 mm² Number of pins 3 Green 250 pc(s)
User & Safety Instructions
User & Safety Instructions 773442 Phoenix Contact 1733428 Screw terminal 1.50 mm² Number of pins 3 Green 250 pc(s)
Description
PCB terminal block, Nominal current: 17.5 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 3, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 35 °, Color: green
