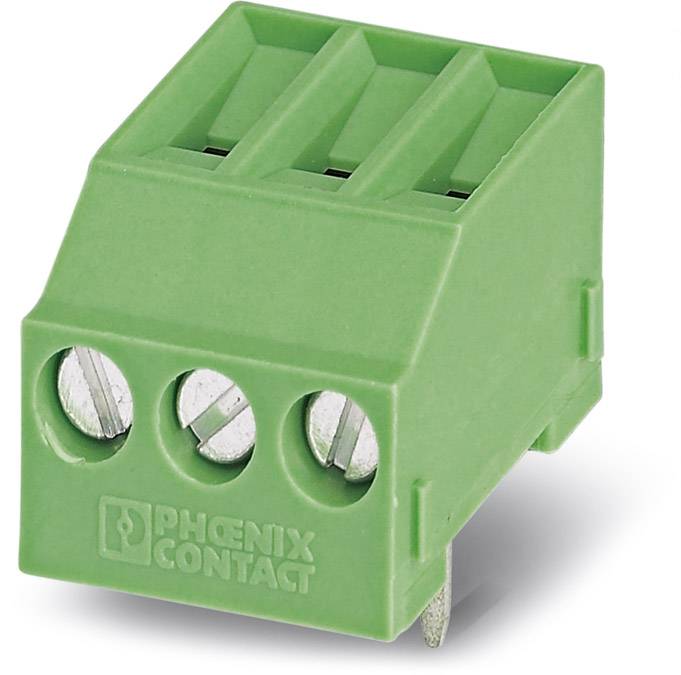

Image similar
Phoenix Contact 1771260 Screw terminal 2.50 mm² Number of pins 3 Green 50 pc(s)
Product type
Screw terminal
CS
5.00 mm
Pins per row
3
Number of pins
3
Connection
Screw terminal
Print
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 2.90 / piece)
€ 144.99
incl. VAT
14-day return policy included
Highlights & Details
PCB terminal block MKDSFW 3/ 3
- Content 50 pc(s)
Technical specifications
- Type
MKDSFW 3/ 3
- Product type
Screw terminal
- Features
+ extractor sleeve
- CS
5.00 mm
- Pins per row
3
- Number of pins
3
- Series
MKDSFW
- Stripping length (max.)
8.00 mm
- Connection
Screw terminal
Print
- Nominal current
24 A
- Cross section (flexible) (min.)
0.20 mm²
- Nominal current - rounded value
24 A
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (max.)
4.00 mm²
- AWG (min.)
24
- Connector orientation
Perpendicular (to the PCB)
- AWG max.
12
- Contact material
Tin plated
- Factory colour
Green
- Actuation direction
Parallel (to the PCB)
- Manufacturer part #
1771260
- Industrial packaging
Yes
- Content
50 pc(s)
- Nominal voltage
400 V
- Width
16.20 mm
- Height
15.50 mm
- Length
15.00 mm
Documents & Downloads
Datasheet
Datasheet 772302 Phoenix Contact 1771260 Screw terminal 2.50 mm² Number of pins 3 Green 50 pc(s)
User & Safety Instructions
User & Safety Instructions 772302 Phoenix Contact 1771260 Screw terminal 2.50 mm² Number of pins 3 Green 50 pc(s)
Description
PCB terminal block, Nominal current: 24 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 3, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 90 °, Color: green, The article can be aligned to create different nos. of positions!
