Name: Phoenix Contact IB IL 24 DO16-2MBD-PAC 2862013 PLC add-on module 24 V DC
Brand: Phoenix Contact
SKU: 193693
Availability: BackOrder

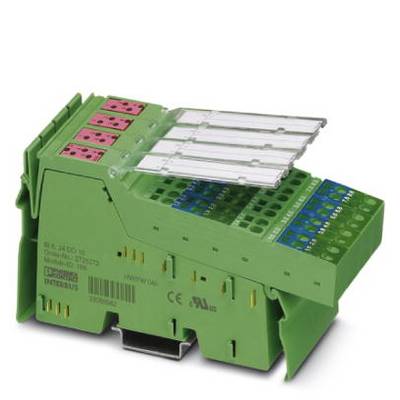

Green electronic module with multiple slots and coloured connectors for controlling industrial processes.

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 4 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 305.00 / piece)

€ 305.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: PLC add-on module

Type: IB IL 24 DO16-2MBD-PAC

No. of digital inputs (max.): 16

No. of outputs (max.): 16

Max. output current per channel: 500 mA

Min. operating voltage: 19.2 V DC

Operating voltage: 19.2 - 30 V DC

Max. operating voltage: 30 V DC

Output signal voltage: 24 V

Operating voltage: 24 V DC

Height: 140.5 mm

Length: 71.5 mm

Width: 48.8 mm

: IP20

Dim: (L x W x H) 71.5 x 48.8 x 140.5 mm

Connection method: 3-core

Connection: Inline data shunter

Field bus system: In-line local bus

Manufacturer part #: 2862013

Max. ambient temperature: 55 °C

Min. ambient temperature: -25 °C

Logic voltage UL: 7.5 V DC

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 193693 Phoenix Contact IB IL 24 DO16-2MBD-PAC 2862013 PLC add-on module 24 V DC

User & Safety Instructions

User & Safety Instructions 193693 Phoenix Contact IB IL 24 DO16-2MBD-PAC 2862013 PLC add-on module 24 V DC

Description

Inline digital output terminal, complete with accessories (plug and labeling field), 16 outputs, 24 V DC, transmission speed 2 Mbaud, 3-conductor connection method

Description

Inline digital output terminal, complete with accessories (plug and labeling field), 16 outputs, 24 V DC, transmission speed 2 Mbaud, 3-conductor connection method
