Name: Phoenix Contact MINI MCR-2-U-UI-PT 2902021 Isolation amplifier 1 pc(s)
Brand: Phoenix Contact
SKU: 2141046
Availability: InStock

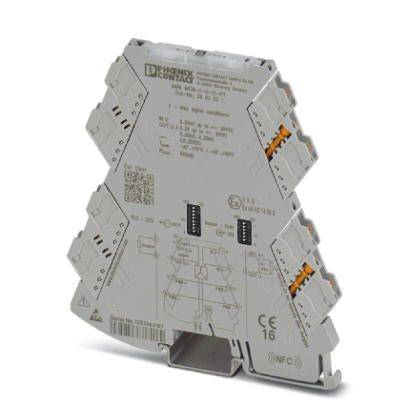

Electronic device with a grey housing, multiple connector ports, and technical details printed on its surface. Used in industrial automation.

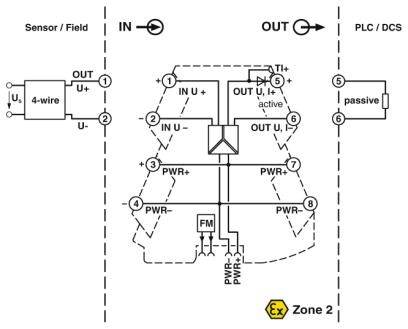

'Ex-Zone 2 Interface: On the left, a 4-wire sensor, on the right a passive device. Centrally, a 12-pin connector for inputs/outputs.'

Circuit symbol shows an amplifier with input 'IN', output 'OUT', and internal 'FM POWER'. Connections for voltage 'U' and current 'U,I'.

1/3

Image similar

Product type

Isolation amplifier

Input signal (voltage) (max.)

33 V

Type

MINI MCR-2-U-UI-PT

Dim

(L x W x H) 119.2 x 6.2 x 109.81 mm

Connection

Push-in connector

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

66 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 234.99 / piece)

€ 234.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class IP20 (not rated by UL)
Power consumption: ≤ 800 mW (at IOUT = 20 mA, 9.6 V DC, 600 Ω load)
Wire stripping length: 10 mm
Conductor cross-section AWG: 24 ... 12 (flexible)
Number of channels: 1
Pollution level: 2
Overvoltage category II
Material casing: PBT
Colour: grey
Max. output current 22 mA
Load/output load Current output: ≤ 600 Ω (at 20 mA)
Rated insulation voltage 300 V.
All mounting positions permitted
Number of inputs: 1
Number of outputs: 1
Load/output load Voltage output: ≥ 10 kΩ

Type: MINI MCR-2-U-UI-PT

Product type: Isolation amplifier

Input signal (voltage) (max.): 33 V

Dim: (L x W x H) 119.2 x 6.2 x 109.81 mm

Connection: Push-in connector

Operating voltage: 9.6 - 30 V DC

Max. operating voltage: 30 V DC

Min. operating voltage: 9.6 V DC

Input signal (voltage): mV- und V-Bereich sowohl unipolar als auch bipolar

Input resistance: 10 kΩ

Content: 1 pc(s)

Width: 6.2 mm

Height: 109.81 mm

Length: 119.2 mm

Current consumption: 25 mA

Max. ambient temperature: +70 °C

Min. ambient temperature: -40 °C

Supply voltage (num.): 9.6 V DC

Operating voltage U(B): 9.6 V DC

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 2.5 mm²

Cross section (flexible) (min.): 0.14 mm²

Cross section (inflexible) (min.): 0.14 mm²

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2141046 Phoenix Contact MINI MCR-2-U-UI-PT 2902021 Isolation amplifier 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2141046 Phoenix Contact MINI MCR-2-U-UI-PT 2902021 Isolation amplifier 1 pc(s)

Description

3-way isolation amplifier, with configurable input/output, for galvanic isolation and conversion of analogueue signals in mV and V range, both unipolar and bipolar. Push-in connection technology, standard configuration.

This text is machine translated.
