PIC PLS-031A-3PPI
EAN:
Part number:
Item no:
Product type
Float switch
Contact type
1 maker
Material
Polypropylene
Switching voltage
140 V AC
200 V DC
Switching current (max.)
1 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.76
5
6% = € 0.41
€ 6.35
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.76 / piece)
€ 6.76
plus VAT.
Highlights & Details
PIC PLS-031A-3PPI
- Small size!
Our service for you
Technical specifications
- Density of the float 0.7 g/cm³
- Product type
Float switch
- Factory colour
White
- Contact type
1 maker
- Material
Polypropylene
- Switch position
1 NO
- Connection
Open end cable
- Cable length
30.00 cm
- Switching voltage
140 V AC
200 V DC
- Switching current (max.)
1 A
10 W
- Min. temperature
-20 °C
- Max. temperature
+80 °C
- (Ø)
24 mm
- Thread size
M8
IP67
- Dim
(Ø x H) 24 mm x 43 mm
- RoHS-compliant
Yes
- Height
43 mm
- Type
PLS-031A-3PPI
Documents & Downloads
Datasheet
Datasheet 506972 PIC PLS-031A-3PPI
User & Safety Instructions
User & Safety Instructions 506972 PIC PLS-031A-3PPI
Description

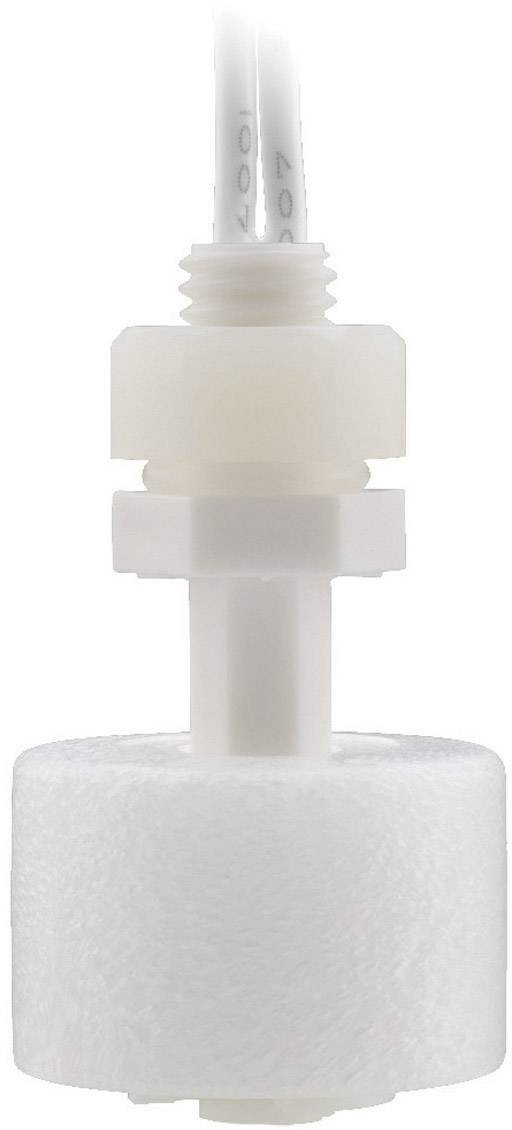

Float switch made of polypropylene for vertical installation. Suitable for food contact. With seal and mounting nut.
