PIKO 46401 Locomotive decoder Module, w/o cable, incl. connector

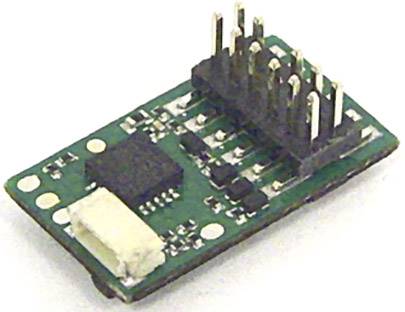

A green printed circuit board with multiple integrated circuits and protruding metal pins, a typical representation of an electronic module.

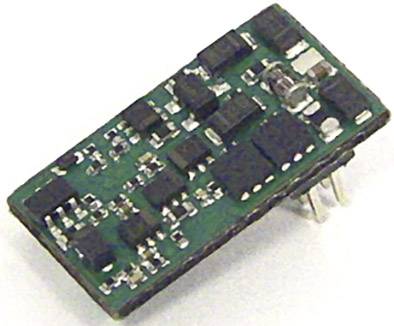

Printed circuit board in a rectangular shape with multiple black and silver components mounted on it.
1/2
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
12 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 48.99 / piece)
€ 48.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Locomotive decoder

Decoder manufacturer

Piko

Digital format

DCC

MM

SX

Decoder type

Module

w/o cable

incl. connector

Interfaces

PluX 12

Max. motor current

2000 mA

Length

15 mm

Width

8.6 mm

Height

3.9 mm

Dim

(L x W x H) 15 x 8.6 x 3.9 mm

Type

SmartDecoder 4.1 (PluX12 interface)

Manufacturer part #

46401

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2247502 PIKO 46401 Locomotive decoder Module, w/o cable, incl. connector

Description

The PIKO SmartDecoder 4.1 PluX12 is a universal digital decoder of the latest generation with versatile light outputs and a 0.8 A motor control. PIKO SmartDecoder 4.1 supports DCC data formats with Rail-ComPlus®, Motorola® and Selectrix® and can also be used on analogue systems. The decoder recognizes the respective operating mode automatically.

This text is machine translated.

Features

  • Fully automatic detection of operating modes
  • DCC, MM, Selectrix®, DC and AC operating modes
  • Motor current duration 0.8 A.
  • Motor peak current 2.0 A.
  • Total current function outputs 0.4 A
  • 2 additional special function outputs
  • MicroSUSI
  • Programmable motor characteristic
  • Brake distance modes
  • Short-circuit and over-temperature protection
  • Dimensions: 15 x 8.6 x 3.9 mm.
