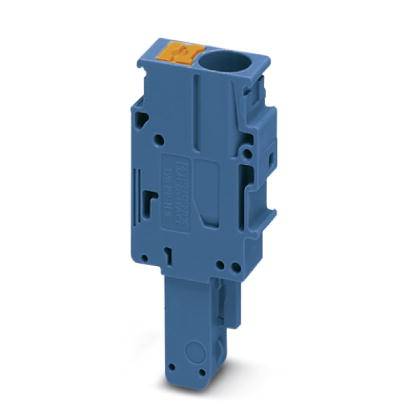

Plug PP-H 6/ 1-L BU 3061677 Phoenix Contact
Packaging type
Package
Factory colour
Blue
AWG max.
10
AWG (min.)
20
Stripping length (max.)
12 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 2.40 / piece)
€ 119.99
incl. VAT
14-day return policy included
Highlights & Details
Plug PP-H 6/ 1-L BU
- PP-H6/1-L BU
- Industrial packaging, pack of 50
Technical specifications
- Packaging type
Package
- Factory colour
Blue
- AWG max.
10
- AWG (min.)
20
- Stripping length (max.)
12 mm
- Connection
Quick-connect
- Manufacturer part #
3061677
- Industrial packaging
Yes
- Content
50 pc(s)
- Material
Polypropylene
- Nominal voltage
1000 V
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Number of pins
1
- Width
8.20 mm
- Type
PP-H 6/ 1-L BU
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (max.)
10 mm²
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 585398 Plug PP-H 6/ 1-L BU 3061677 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 585398 Plug PP-H 6/ 1-L BU 3061677 Phoenix Contact
Description
Plug, single, for self-assembly, not bridgeable, one conductor can be connected, 1-pos.
Hints
Special order, no right of withdrawal.
