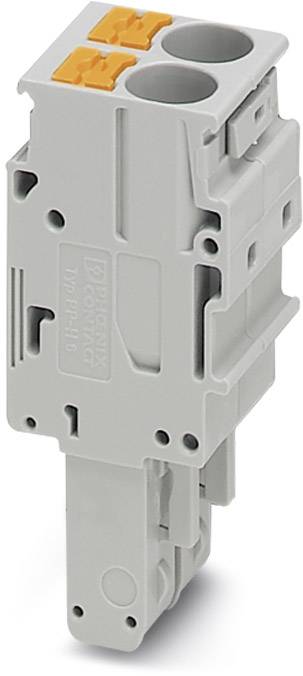

Plug PP-H 6/ 2 3061570 Phoenix Contact
EAN:
Part number:
Item no:
Factory colour
Grey
AWG max.
10
AWG (min.)
20
Stripping length (max.)
12 mm
Connection
Quick-connect
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 3.19 / piece)
€ 159.66
plus VAT.
Highlights & Details
Plug PP-H 6/ 2
- PP-H6/2
- Industrial packaging, pack of 50
Technical specifications
- Factory colour
Grey
- AWG max.
10
- AWG (min.)
20
- Stripping length (max.)
12 mm
- Connection
Quick-connect
- Manufacturer part #
3061570
- Industrial packaging
Yes
- Content
50 pc(s)
- Nominal voltage
1000 V
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Width
8.20 mm
- Type
PP-H 6/ 2
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (max.)
10 mm²
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 718381 Plug PP-H 6/ 2 3061570 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 718381 Plug PP-H 6/ 2 3061570 Phoenix Contact
Description
Plug, Connection method: Push-in connection, Number of positions: 2, Cross section: 0.5 mm² - 10 mm², AWG: 20 - 8, Width: 16.4 mm, Height: 49.3 mm, Color: gray
