Name: Plug PP-H 6/ 4 3061596 Phoenix Contact
Brand: Phoenix Contact
SKU: 586764
Availability: InStock

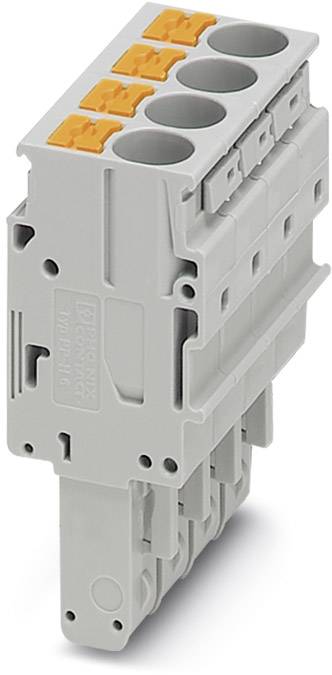

A grey, multi-pole connector with orange actuation levers, suitable for DIN rail mounting in electrical installations.

Image similar

Packaging type

Package

Factory colour

Grey

AWG max.

AWG (min.)

Stripping length (max.)

12 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 11 Nov

4 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 6.70 / piece)

€ 335.00

incl. VAT

Only 4 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Plug PP-H 6/ 4

PP-H6/4
Industrial packaging, pack of 50

Technical specifications

Packaging type: Package

Factory colour: Grey

AWG max.: 10

AWG (min.): 20

Stripping length (max.): 12 mm

Dim: (W x H) 8.20 mm x 49.3 mm

Connection: Quick-connect

Manufacturer part #: 3061596

Industrial packaging: Yes

Content: 50 pc(s)

Clamp width: 32.8 mm

Nominal voltage: 1000 V

Nominal current: 41 A

Nominal current - rounded value: 41 A

Number of pins: 4

Width: 8.20 mm

Height: 49.3 mm

Type: PP-H 6/ 4

Cross section (flexible) (max.): 6 mm²

Cross section (inflexible) (max.): 10 mm²

Cross section (flexible) (min.): 0.50 mm²

Cross section (inflexible) (min.): 0.50 mm²

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 586764 Plug PP-H 6/ 4 3061596 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 586764 Plug PP-H 6/ 4 3061596 Phoenix Contact

Description

Plug, Connection method: Push-in connection, Number of positions: 4, Cross section: 0.5 mm² - 10 mm², AWG: 20 - 8, Width: 32.8 mm, Height: 49.3 mm, Color: gray

Description

Plug, Connection method: Push-in connection, Number of positions: 4, Cross section: 0.5 mm² - 10 mm², AWG: 20 - 8, Width: 32.8 mm, Height: 49.3 mm, Color: gray
