Proxxon CU4 CNC controller 230 V
EAN:
Part number:
Item no:
Number
Total (€ 478.15 / piece)
€ 478.15
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Proxxon CNC control unit CU4
- Dim. table
Technical specifications
- Installation area 330 x 300 mm. Height 100 mm
- Protectively insulated to class 1
- Product type
CNC controller
- Operating voltage
230 V
- Height
100 mm
- Weight
4.5 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3165455 Proxxon CU4 CNC controller 230 V
Description
For operation of CNC lathes and milling machines with up to four axes. Ready to use, powerful and safe.

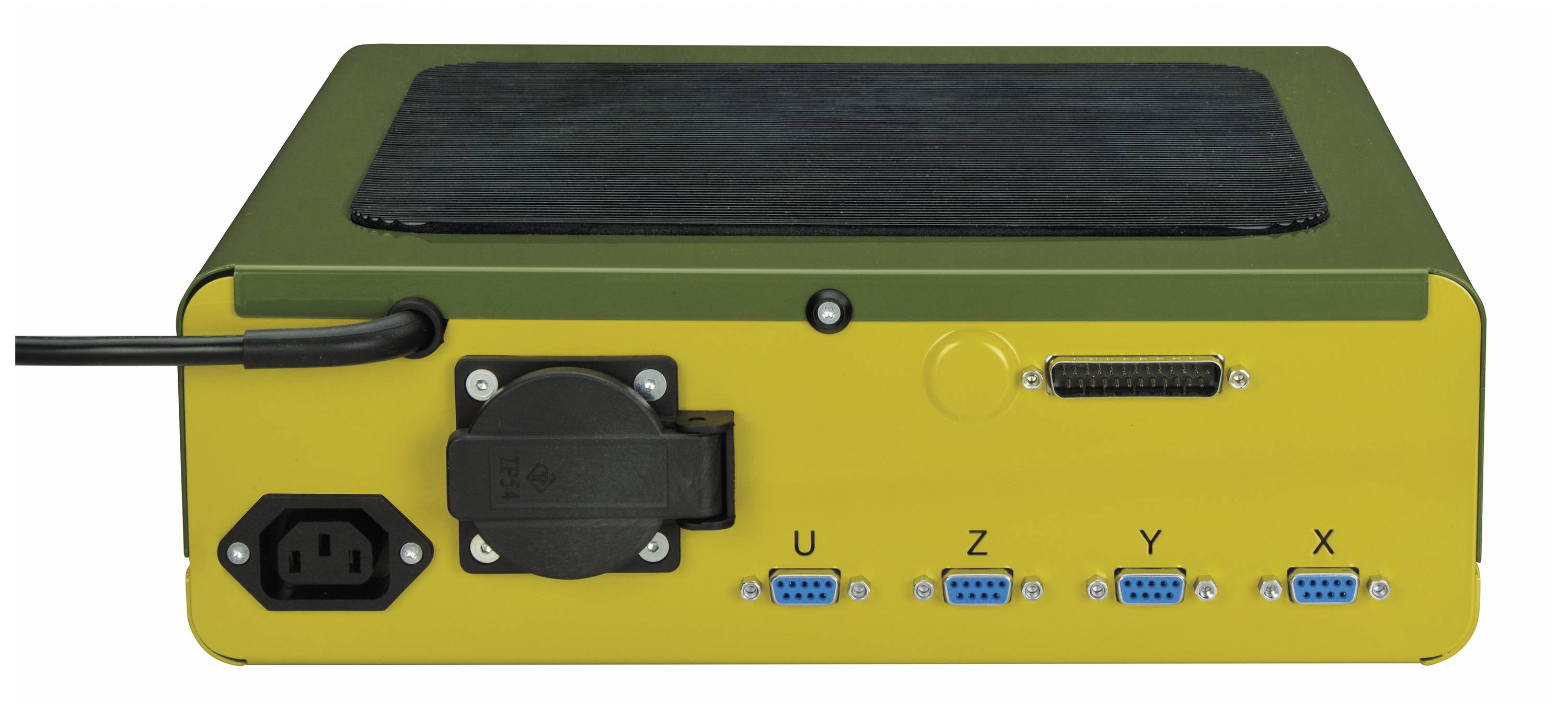

No software binding: CNC software freely available on the market, such as Estlcam (milling), MACH 3/4 (turning or milling) etc. can be used for control via parallel port (with LPT adapter if necessary). Four generously dimensioned power end-stages (standard-interface SUB-D 9-pin) ensure that the step-motors can work powerful and precisely in every situation. A feedback signal (e.g. limit switch) is possible for each axis.
230 V power sources switchable by relays (SK 1 and cold equipment connector) for spindle drives and special functions up to 2,500 W power consumption.
Stable main casing made of 1.2 mm thick steel sheet (powder-coated) with large rubber grooved mat for the tool storage.
This text is machine translated.
No software binding: CNC software freely available on the market, such as Estlcam (milling), MACH 3/4 (turning or milling) etc. can be used for control via parallel port (with LPT adapter if necessary). Four generously dimensioned power end-stages (standard-interface SUB-D 9-pin) ensure that the step-motors can work powerful and precisely in every situation. A feedback signal (e.g. limit switch) is possible for each axis.
230 V power sources switchable by relays (SK 1 and cold equipment connector) for spindle drives and special functions up to 2,500 W power consumption.
Stable main casing made of 1.2 mm thick steel sheet (powder-coated) with large rubber grooved mat for the tool storage.
This text is machine translated.
Scope of delivery
- Proxxon CNC control unit CU4
- User manual.
