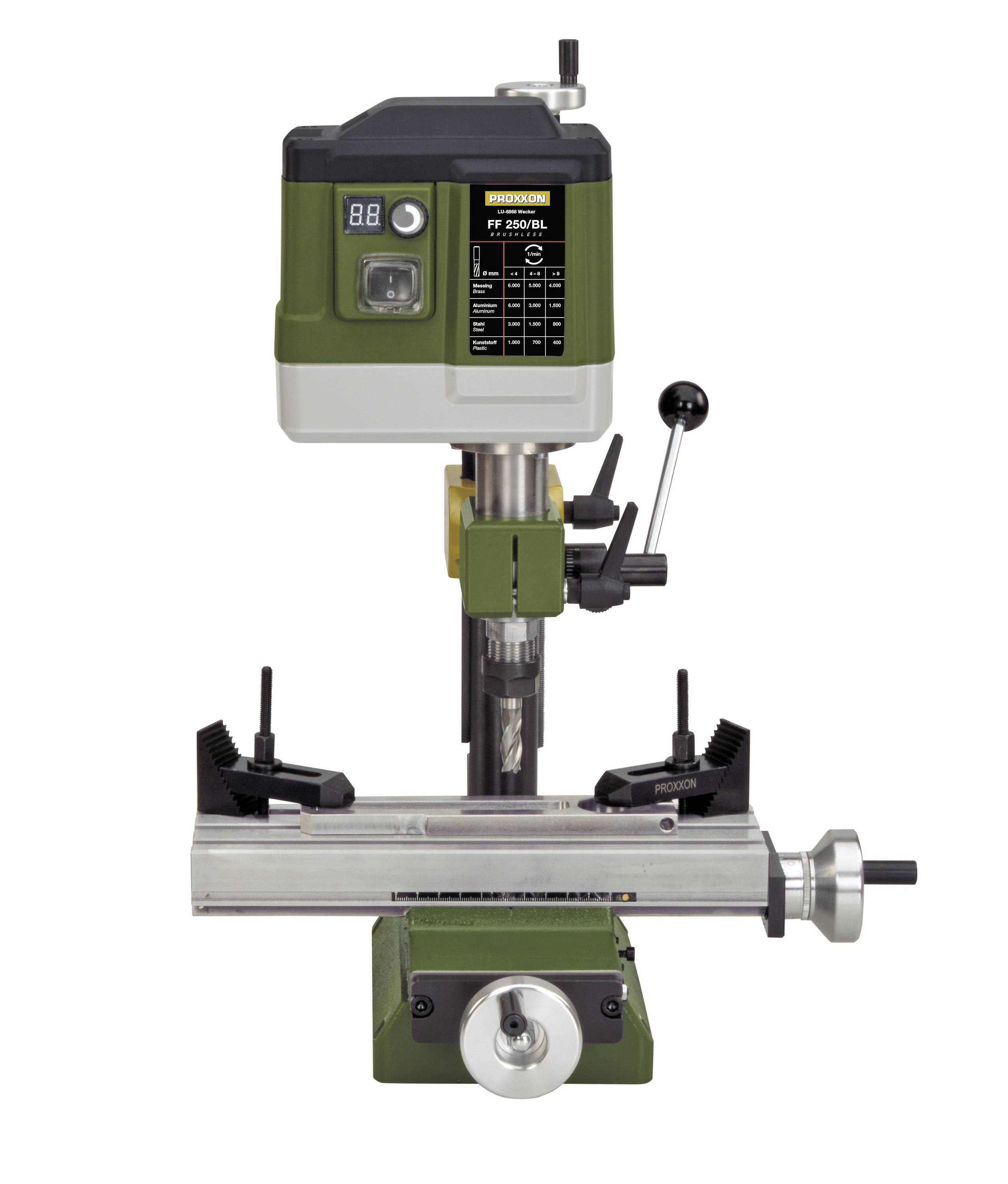

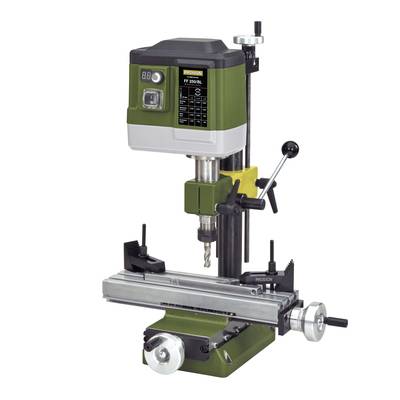

Proxxon FF 250/BL High precision cutter 230 V
EAN:
Part number:
Item no:
7 Piece(s)
Sales and shipping:
Number
Total (€ 945.38 / piece)
€
Only 7 Piece(s) available
Highlights & Details
Fine milling FF 250/BL
- Dim. table
Technical specifications
- Projection 65 mm
- Sleeve stroke 30 mm
- Column Ø 35 x 400 mm
- Table 270 x 80 mm
- Traverse path X (cross) 170 mm, Y (longitudinal) 65 mm
- Installation area 180 x 130 mm
- Total height approx. 500 mm
- Weight approx. 17 kg
- Operating voltage
230 V
- Rotational speed range
400 - 6000 U/min
- Weight
17 kg
- Product type
High precision cutter
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3306503 Proxxon FF 250/BL High precision cutter 230 V
Description
With 230 V direct feed The complex control of rotor position and speed sensors enables high torque for the use of large cutters in the lower speed range. Tool holder with ER 16 collets (1 pieces each of 6, 8 and 10 mm belong to it). Steel cross table with 3 T-grooves.
This text is machine translated.
This text is machine translated.
Features
- Continuously adjustable speed selection from 400 - 6000 rpm
- Digital speed display Drill head rotates 360° (with degree graduation)
