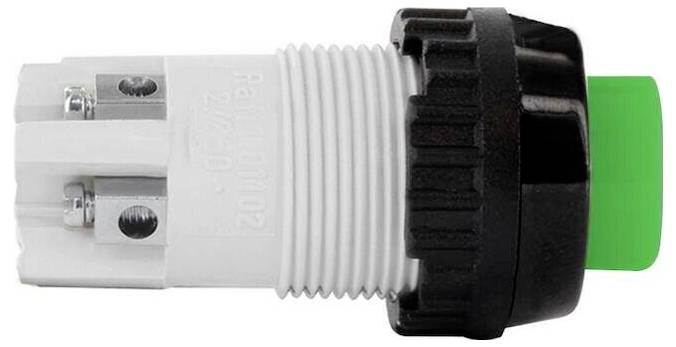

RAFI 1.01.102.011/0507 1.01102.011/0507 Pushbutton 250 V 2 A momentary (L x W x H) 22 x 22 x 44.5 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton
Lighting type
None
Contact type
1 breaker
1 maker
Connection
Screw terminal
Switching voltage
250 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.01
3
6% = € 0.61
€ 10.40
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.01 / piece)
€ 11.01
plus VAT.
Technical specifications
- Product type
Pushbutton
- Casing/button colour
Green
- Functions
momentary
- Lighting type
None
- Contact type
1 breaker
1 maker
- Contact material
Silver
- Connection
Screw terminal
- Switching voltage
250 V
- Switching current (max.)
2 A
- Length
22 mm
- Width
22 mm
- Height
44.5 mm
- Recess diameter
18.2 mm
- Recess depth
34 mm
- Actuating force
9.5 N
- Content
1 pc(s)
- Dim
(L x W x H) 22 x 22 x 44.5 mm
- Type
1.01102.011/0507
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3059455 RAFI 1.01.102.011/0507 1.01102.011/0507 Pushbutton 250 V 2 A momentary (L x W x H) 22 x 22 x 44.5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3059455 RAFI 1.01.102.011/0507 1.01102.011/0507 Pushbutton 250 V 2 A momentary (L x W x H) 22 x 22 x 44.5 mm 1 pc(s)
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
