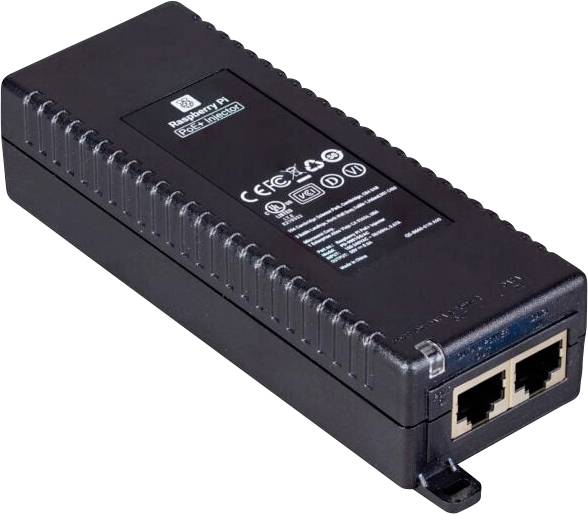

Raspberry Pi® SC1677 PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)
EAN:
Part number:
Item no:
Number
Total (€ 29.40 / piece)
€ 29.40
plus VAT.
Technical specifications
- Data rate 10/100/1000 Mbps
- Input voltage 100 to 240 Vac
- Power output 30W
- Current output on pins: 4/5 (+), 7/8 (-)
- Nominal output voltage 55 VDC
- Dimensions: 159 mm (L) × 51.8 mm (W) × 33.5 mm (H)
- Data connections: Shielded RJ-45, EIA 568A and 568B
- Operating ambient temperature: -10⁰C to +50⁰C
- Operating Humidity: Maximum 90%, non-condensing
- Storage temperature: -20⁰C to +70⁰C
- Storage humidity: Maximum 95%, non-condensing
- Operating altitude: -300 m to 3000 m
- MTBF: 200,000 hours at 25⁰C
- Product type
PoE injector
- PoE
IEEE 802.3af (12.95 W)
IEEE 802.3at (25.5 W)
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
159 mm
- Height
34 mm
- Depth
52 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400630 Raspberry Pi® SC1677 PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)
Description

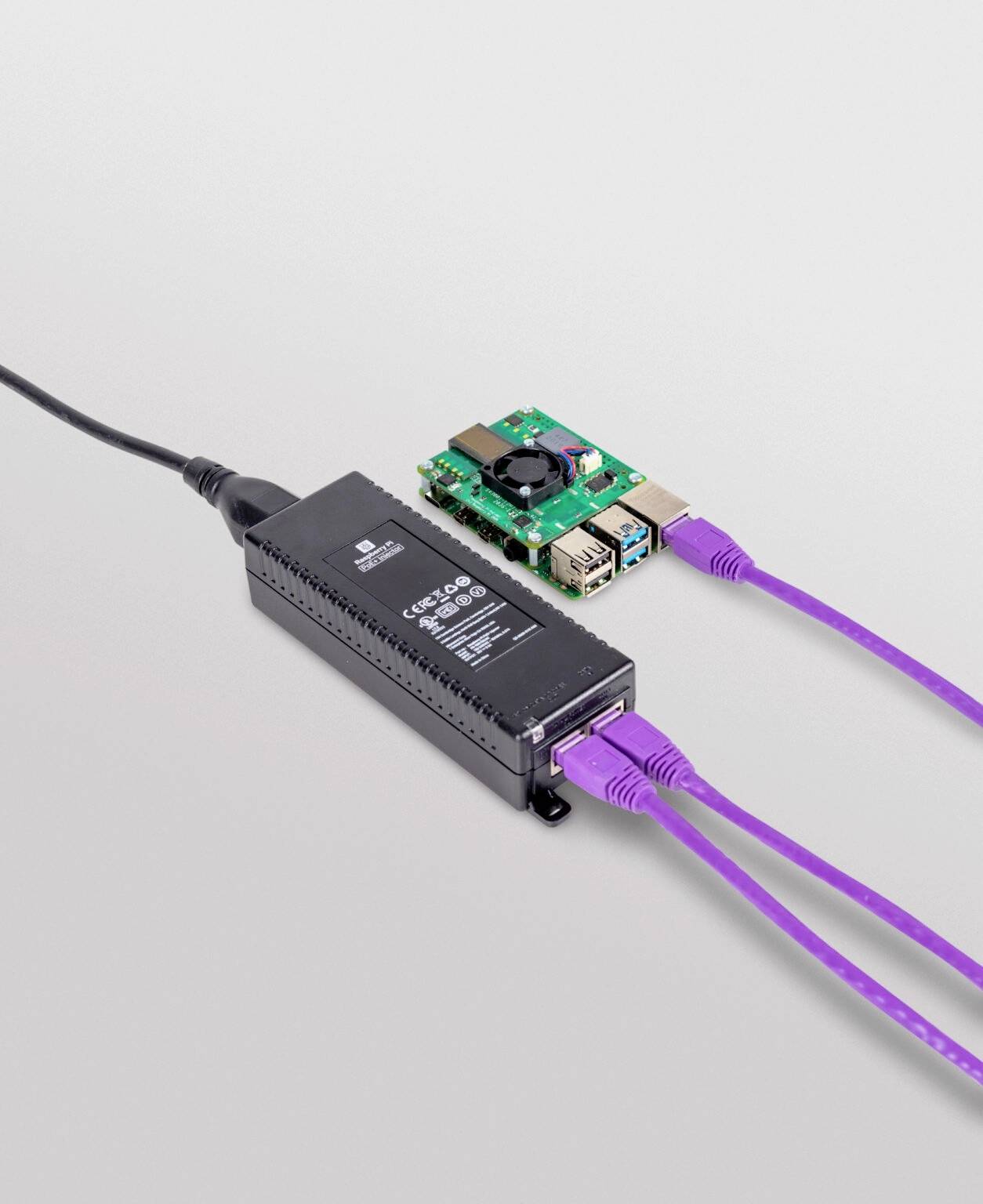

A 30 W single port injector suitable for powering devices that meet IEEE 802.3af and 802.3at specifications - including all generations of Raspberry Pi PoE.
This text is machine translated.
This text is machine translated.
Hints
The Raspberry Pi PoE+ Injector will be produced until at least January 2034.
An IEC C13-power cable is not included in the delivery.
