Buy Renata 701105 Button cell holder 1x CR 1225 Horizontal, Through-hole (L x W x H) 20.3 x 12.7 x 8 mm

Socket for a CR2032 battery compartment made of plastic with metal contacts. Suitable for printed circuit board mounting.

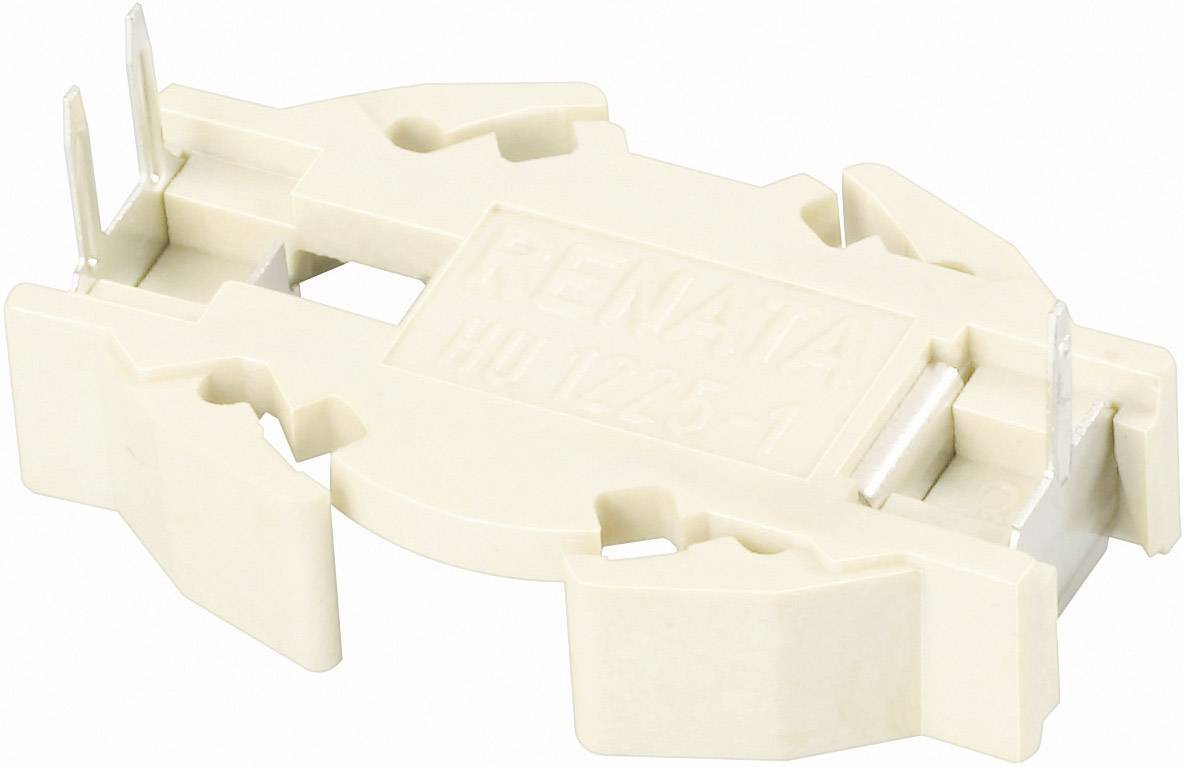

A cream-coloured plastic battery contact with the inscription 'RENATA PU1225-1', suitable for button cell batteries.

1/2

Datasheet (PDF)

Fast track dispatch on Tue, 15 Sep

395 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 0.71 / piece)

€ 0.71

plus VAT.

Report legal concerns

Highlights & Details

Renata 701105 Button cell holder 1x CR 1225 Horizontal, Through-hole (L x W x H) 20.3 x 12.7 x 8 mm

With solder pins

Technical specifications

Connector: Horizontal
Through-hole

Suitable for battery size: CR 1225

Pin spacing: 19 mm

No. of cells: 1

Length: 20.3 mm

Width: 12.7 mm

Height: 8 mm

Material (details): Heat resistant, glass fibre reinforced plastic

Factory colour: White

Type: Solder pins

Dim: (L x W x H) 20.3 x 12.7 x 8 mm

Suitable for: CR1225

Type: HU1225

Product type: Button cell holder

Variants(All information is without VAT, plus shipping costs)

Connector

Pin spacing

Type

Suitable for battery size

Dim

Renata 701105 Button cell holder 1x CR 1225 Horizontal, Through-hole (L x W x H) 20.3 x 12.7 x 8 mm

Item no:650600

This article

HorizontalThrough-hole

19 mm

Solder pins

CR 1225

(L x W x H) 20.3 x 12.7 x 8 mm

Renata 703301 Button cell holder 1x CR 2032 Horizontal, SMD (L x W x H) 32 x 16 x 5.4 mm

Item no:1009389

HorizontalSMD

29.4 mm

SMT

CR 2032

(L x W x H) 32 x 16 x 5.4 mm

Renata 701114 Button cell holder 1x CR 1220 Horizontal, SMD (L x W x H) 23.7 x 12.7 x 4.8 mm

Item no:1009391

HorizontalSMD

21.1 mm

SMT

CR 1220

(L x W x H) 23.7 x 12.7 x 4.8 mm

Renata 700759 Button cell holder 1x CR 2032 Horizontal, Through-hole (L x W x H) 24 x 23 x 6 mm

Item no:650588

HorizontalThrough-hole

10.15 mm

Vertical mounting

CR 2032

(L x W x H) 24 x 23 x 6 mm

Renata 701115 Button cell holder 1x CR 1225 Horizontal, SMD (L x W x H) 23.7 x 12.7 x 4.8 mm

Item no:650609

HorizontalSMD

15.8 mm

SMD

CR 1225

(L x W x H) 23.7 x 12.7 x 4.8 mm

Renata 701106 Button cell holder 1x CR 2032 Horizontal, Through-hole (L x W x H) 28.5 x 20 x 8.7 mm

Item no:650612

HorizontalThrough-hole

27.2 mm

Solder pins

CR 2032

(L x W x H) 28.5 x 20 x 8.7 mm

Renata 701116 Button cell holder 1x CR 2032 Horizontal, SMD (L x W x H) 32 x 20 x 5.4 mm

Item no:650621

HorizontalSMD

29.4 mm

SMD

CR 2032

(L x W x H) 32 x 20 x 5.4 mm

Renata 701133 Button cell holder 1x 357 , LR44 Horizontal, Through-hole (L x W x H) 19.9 x 12 x 7.4 mm

Item no:650647

HorizontalThrough-hole

18.65 mm

Solder pins

357 LR44

(L x W x H) 19.9 x 12 x 7.4 mm

Renata 701118 Button cell holder 1x CR 2450N Horizontal, SMD (L x W x H) 36.4 x 24.5 x 7.5 mm

Item no:650657

HorizontalSMD

33.8 mm

SMD

CR 2450N

(L x W x H) 36.4 x 24.5 x 7.5 mm

Renata 701112 Button cell holder 1x CR 2450N, CR 2477N Horizontal, Through-hole (L x W x H) 30 x 29.5 x 8.4 mm

Item no:650659

HorizontalThrough-hole

25.4 mm

Horizontal mounting

CR 2450NCR 2477N

(L x W x H) 30 x 29.5 x 8.4 mm

Documents & Downloads

Datasheet

Datasheet 650600 Renata 701105 Button cell holder 1x CR 1225 Horizontal, Through-hole (L x W x H) 20.3 x 12.7 x 8 mm

User & Safety Instructions

User & Safety Instructions 650600 Renata 701105 Button cell holder 1x CR 1225 Horizontal, Through-hole (L x W x H) 20.3 x 12.7 x 8 mm

Description

Rugged, lightweight and made of heat-resistant, glass fiber reinforced plastic.

Features

For automatic assembly (HU)
Secure hold the button cell.
Clear separation of the connections
Easy and fast exchange of battery
Automatic Battery mounting possible
Protection against short-circuits
Protection against reverse polarity (polarization)
Protection against fault currents
Robust Construction
Suitable for wave soldering
Holder material: heat-resistant, glass fiber-filled LCP
Flammability UL94V-O
Battery contacts: stainless steel spring AISI 301, end-to-end-nickel coating. Through-tin-plated Lotbereich, thickness at least 5 μm
Contact resistance between contacts and battery cell is less than 100 mΩ (measured at AC 1 kHz; depending on the housing material the battery)
UL approval.
UL file number E 218732
Operating temperature range: -40 to +100 °C

Hints

This text is machine translated.
