Name: Renata ICP682828HPMT Non-standard battery (rechargeable) Prismatic Cable LiPo 3.7 V 560 mAh 1 pc(s)
Brand: Renata
SKU: 3015334
Availability: InStock

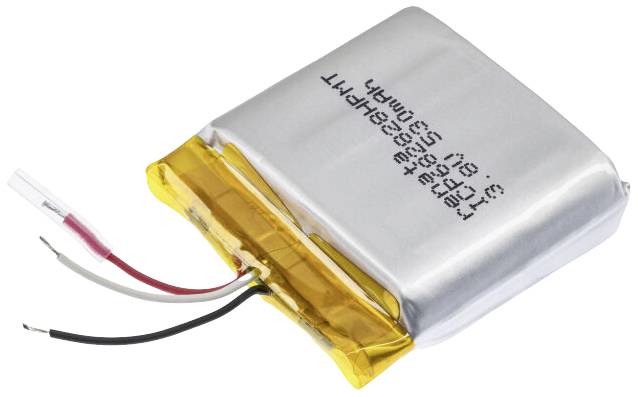

Flat rectangular lithium-polymer battery with yellow adhesive tape and three cables (red, black, white) on one side.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

31 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 20.99 / piece)

€ 20.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Renata lithium polymer battery

Minimal self-discharge
high efficiency

Technical specifications

Size: Prismatic

Product type: Non-standard battery (rechargeable)

Technology: LiPo

Dim: (W x H x D) 28 x 7.5 x 30 mm

Voltage: 3.7 V

Capacity (mAh, Ah): 560 mAh

Special-purpose battery features: Cable

Max. charge voltage: 4.2 V

Max. charging current: 560 mA

Terminal voltage: 3 V

Discharge current (max.): 1120 mA

Continuous discharge: 560 mA

Min. temperature: -20 °C

Max. temperature: +60 °C

Width: 28 mm

Height: 7.5 mm

Depth: 30 mm

Weight: 10.3 g

Content: 1 pc(s)

Type: ICP682828HPMT

Rechargeable: Yes

Integrated surge protection: No

Variants(All information include VAT, plus shipping costs)

Capacity (mAh, Ah)

Dim

Discharge current (max.)

Special-purpose battery features

Renata ICP281029HPG Non-standard battery (rechargeable) Prismatic Cable LiPo 3.7 V 68 mAh 1 pc(s)

Item no:3015327

Fast track dispatch on Thu 29 Oct

5 Piece(s)Conrad Electronic

68 mAh

(W x H x D) 10.2 x 3.3 x 30.5 mm

136 mA

Cable

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Renata ICP303450PA Non-standard battery (rechargeable) Prismatic Cable LiPo 3.7 V 500 mAh 1 pc(s)

Item no:1214020

Fast track dispatch on Thu 29 Oct

89 Piece(s)Conrad Electronic

500 mAh

(W x H x D) 34.5 x 3.5 x 52 mm

1.02 A

Cable

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 19.99^*

Renata ICP390831PR Non-standard battery (rechargeable) Prismatic Cable LiPo 3.7 V 85 mAh 1 pc(s)

Item no:3015328

Available soon

Conrad Electronic

85 mAh

(W x H x D) 8.7 x 4.3 x 33 mm

170 mA

Cable

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Renata ICP401230UPR Non-standard battery (rechargeable) Prismatic Cable LiPo 3.7 V 130 mAh 1 pc(s)

Item no:252019

Fast track dispatch on Thu 29 Oct

7 Piece(s)Conrad Electronic

130 mAh

(W x H x D) 12.7 x 4.5 x 31 mm

0.26 A

Cable

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11.99^*

Renata ICP401835TPRT Non-standard battery (rechargeable) Prismatic Cable LiPo 3.7 V 215 mAh 1 pc(s)

Item no:3015329

Fast track dispatch on Thu 29 Oct

57 Piece(s)Conrad Electronic

215 mAh

(W x H x D) 18.2 x 4.4 x 37 mm

430 mA

Cable

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

Renata ICP402025PC-1 Non-standard battery (rechargeable) Prismatic Plug LiPo 3.7 V 155 mAh 1 pc(s)

Item no:252023

Fast track dispatch on Thu 29 Oct

27 Piece(s)Conrad Electronic

155 mAh

(W x H x D) 20.5 x 4.3 x 27.5 mm

0.155 A

Plug

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

Renata ICP402035 Non-standard battery (rechargeable) Prismatic Blade terminal LiPo 3.7 V 195 mAh 1 pc(s)

Item no:252026

Fast track dispatch on Thu 29 Oct

28 Piece(s)Conrad Electronic

195 mAh

(W x H x D) 20 x 4.4 x 35 mm

0.39 A

Blade terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 18.99^*

Renata ICP403029PL-02 Non-standard battery (rechargeable) Prismatic Cable LiPo 3.7 V 325 mAh 1 pc(s)

Item no:3015331

Fast track dispatch on Thu 29 Oct

5 Piece(s)Conrad Electronic

325 mAh

(W x H x D) 31 x 4.4 x 31 mm

650 mA

Cable

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

Renata ICP422339PR Non-standard battery (rechargeable) Prismatic Plug LiPo 3.7 V 340 mAh 1 pc(s)

Item no:252029

Fast track dispatch on Thu 29 Oct

150 Piece(s)Conrad Electronic

340 mAh

(W x H x D) 23.7 x 4.5 x 40.5 mm

0.34 A

Plug

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

Renata ICP501022UPM Non-standard battery (rechargeable) Prismatic Cable LiPo 3.7 V 75 mAh 1 pc(s)

Item no:252015

Fast track dispatch on Thu 29 Oct

17 Piece(s)Conrad Electronic

75 mAh

(W x H x D) 10 x 5.5 x 24 mm

0.16 A

Cable

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Documents & Downloads

Datasheet

Datasheet 3015334 Renata ICP682828HPMT Non-standard battery (rechargeable) Prismatic Cable LiPo 3.7 V 560 mAh 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3015334 Renata ICP682828HPMT Non-standard battery (rechargeable) Prismatic Cable LiPo 3.7 V 560 mAh 1 pc(s)

Description

Renata lithium polymer battery for special industrial and hobby applications.

Hints

This text is machine translated.

Description

Renata lithium polymer battery for special industrial and hobby applications.

Hints

This text is machine translated.
