Rhodius 202384 Cutting disc (straight) 125 mm 1 pc(s) Steel
EAN:
Part number:
Item no:
Datasheet (PDF)
11 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€
Highlights & Details

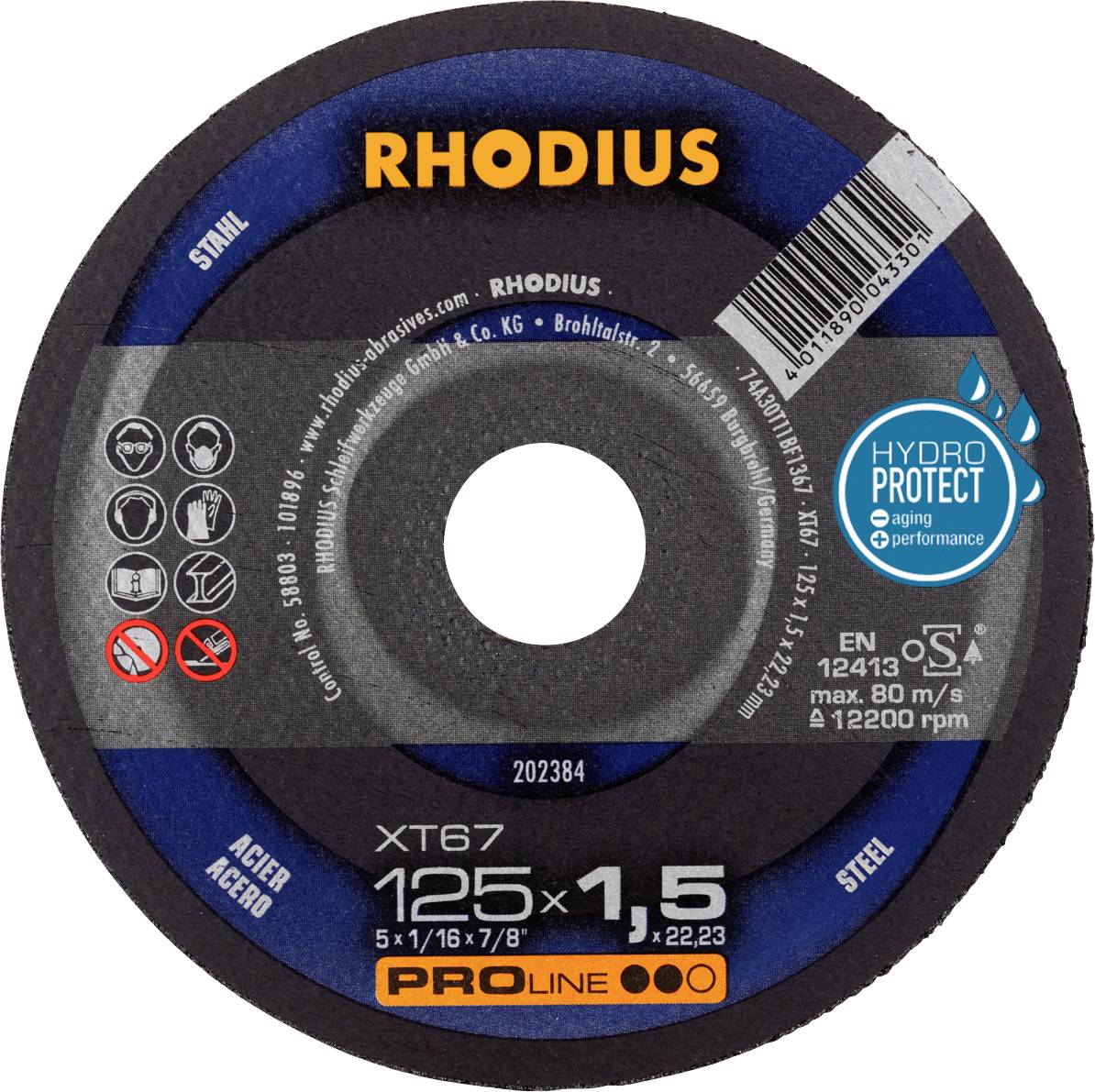

Rhodius XT67, extra-thin cut-off wheel 125 x 1.5 x 22.23 mm, shape 41, Proline, Made in Germany, for steel
- Extra-thin cutting wheel with longer life and excellent price/performance ratio
- Little burr formation
- High cutting speeds.
- Low flying sparks
Technical specifications
- Product type
Cutting disc (straight)
- Content
1 pc(s)
- (Ø)
125 mm
- Type
Disc
- Bore Ø
22.23 mm
- Thickness
1.5 mm
- Rotational speed (max.)
12250 U/min
- Material suitability
Steel
- Dim
(Ø) 125 mm
Documents & Downloads
Datasheet
Datasheet 3393950 Rhodius 202384 Cutting disc (straight) 125 mm 1 pc(s) Steel
User & Safety Instructions
User & Safety Instructions 3393950 Rhodius 202384 Cutting disc (straight) 125 mm 1 pc(s) Steel
Description
Suitable for machines: The XTK67 cutting wheel is suitable for hand use on angle grinders of all power classes (including weak drive machines and battery machines). Material suitability: The XT67 is specially designed for use on steel (black steel also known as structural steel, St37, S235JR, 1.0037 or carbon steel) and cast steel. Construction and production: The cutting wheel contains high-quality corundum (aluminum oxide) and 2 full-surface fiberglass fabric. The minimum side load for the cutting disc is according to EN 12413 and OSA 40 N, or from diameter 150 mm 50 N. The expiry date (three years) is stamped in the boring ring. A consistent quality is ensured by complex In-Pro process controls in production. To provide a safety Maximum, every one of the thousands of discs is tested in a destructive way. This is a straight-shaped disc (form 41). Cutting discs with a straight shape enable a greater immersion depth and thus also more cuts. Quality: To be able to work even more economically (cost per cut), RHODIUS cutting discs of the quality lines PRO and TOP or with the technology CE RAMICON are recommended. The XT67 is exceptionally easy and fast to cut during use. Even the precise working in thin-walled material is not a problem. The disc is characterized here by low spark flight, little dust development and an excellent quietness. It makes the work easier and is particularly economical.
This RHODIUS quality tool is particularly suitable for cutting steel construction, tool steel, thin-walled sheets, high-alloyed steel, high-strength sheet, beams, profiles, boards and cross-beams. Dimensions: The extra-thin cutting wheel with a disc width from 1.0 mm to 1.9 mm is available in diameters from 115 mm to 230 mm. Industries: It is the perfect tool for the various applications and challenges of building locks as well as in plant engineering, container construction, tank and container construction, construction steel, pipe construction and also on assembly.
This text is machine translated.
This RHODIUS quality tool is particularly suitable for cutting steel construction, tool steel, thin-walled sheets, high-alloyed steel, high-strength sheet, beams, profiles, boards and cross-beams. Dimensions: The extra-thin cutting wheel with a disc width from 1.0 mm to 1.9 mm is available in diameters from 115 mm to 230 mm. Industries: It is the perfect tool for the various applications and challenges of building locks as well as in plant engineering, container construction, tank and container construction, construction steel, pipe construction and also on assembly.
This text is machine translated.
Scope of delivery
- 1 pieces XT67 125 x 1.5 x 22.23 mm
