Sauter FH 50 EXT Force Gauge N/A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,029.41 / piece)
€ 1,029.41
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Digital Force Gauge (external s.)| Force Gauge 50 N
- Force-measurement devices with external
- high-resolution measuring cells for small loads
Technical specifications
- Power supply (details)
In-built rechargeable batteries
- Dim
(L x W x H) 70 x 75 x 20 mm
- Weight
0.9 kg
- Height
20 mm
- Length
70 mm
- Width
75 mm
- Force reading range
50 N (max.)
Manufacturer's standards (no certificate)
- Display
LCD

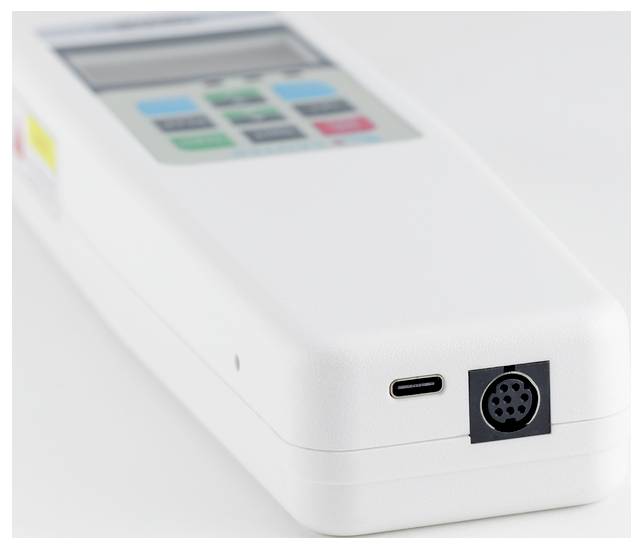

- Interfaces
RS232
USB device
- Basic accuracy
0.5 %
- Force reading range (max.)
50 N
- Resolution (force)
0.01 N
- Reading frequency
2000 Hz
- Product type
Force gauge
Documents & Downloads
Datasheet
Datasheet 755627 Sauter FH 50 EXT Force Gauge N/A
User & Safety Instructions
User & Safety Instructions 755627 Sauter FH 50 EXT Force Gauge N/A
Description
Digital power measuring device for traction and pressure detection with grasping of peak value Professional measuring performance: 2000 Hz (Measurement/s) measuring speed and 0.2% max. Measuring accuracy e.g. for highly precise outline tests. The Measured force is continuously indicated in the display in the Track mode Peak Mode: Max. Force within a search is recorded in the display Display reversal and background lighting is possible. In-built rechargeable batteries for mobile measurements
Features
- Force-measuring device combination consisting of an external measurement sensor and a high-resolution display unit
- Ideal for force measurement of very slight forces or loads in machines and plants
- Real time or Peak Hold Mode to observe transcients or capture peaks
- Push & Pull function to capture tensile and compressive forces
- Mini Statistics Kit: calculates the average result from up to ten stored single results, min., max., n
- Function to set limits: Input of an upper/lower limit value. A visual and acoustic signal supports the measuring operation
- Rechargeable battery pack internal, battery charger included
- Depending on the display unit, only one measuring cell can be connected
- Suitable for all SAUTER test stands (When ordering a test stand please state)|Technical data
- External sensor: Dimensions LxWxH 76x65x22 mm, net weight approx. 0,3 kg (without sensor)
- Cable length for display unit approx. 2 m
- Tolerance 1 % of
- Selectable measuring units: N, kg, lb
- Overload protection: 150 % of |

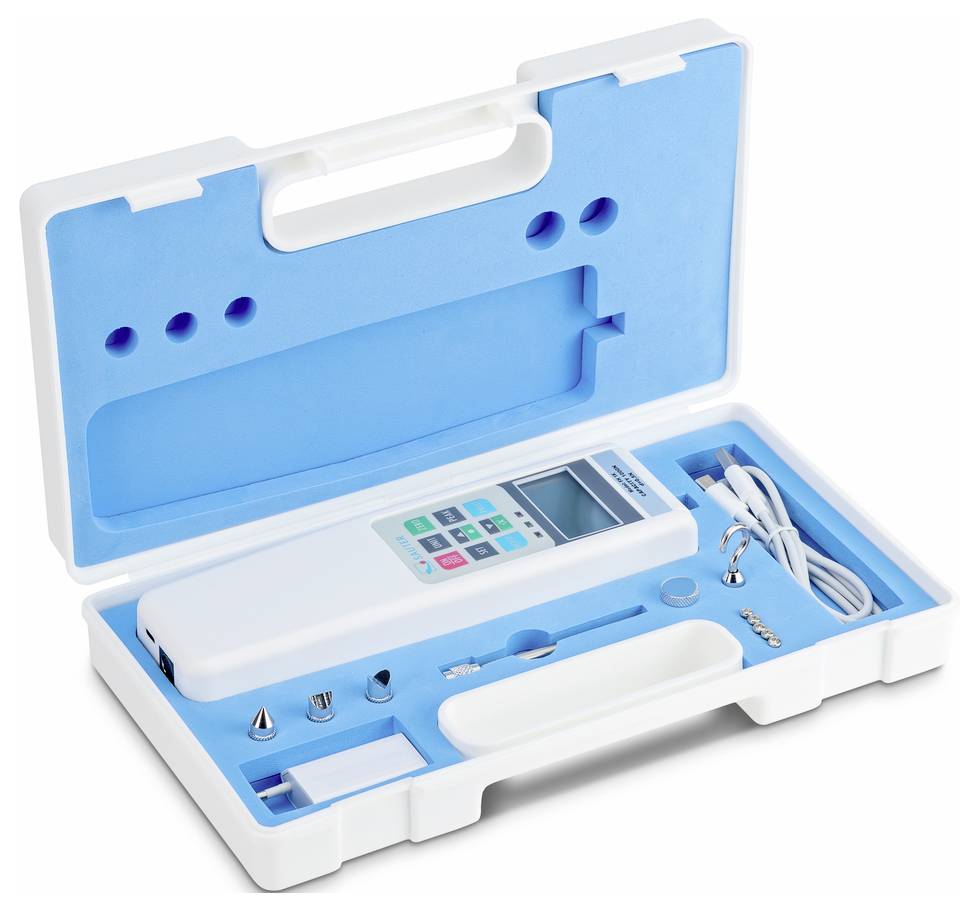

Scope of delivery
- In-built rechargeable battery
- Plug battery charger
- Standard attachment inclusive of 90 mm extension rod
- Carrying case
- Operating instructions.
