Name: Scangrip 03.6207 MINIFORM LED (monochrome) Work light 200 lm No. of power packs included 1
Brand: Scangrip
SKU: 3381480
Availability: SoldOut

Portable LED work light by Scangrip in a grey housing, standing vertically, with an illuminated light bar in the centre.

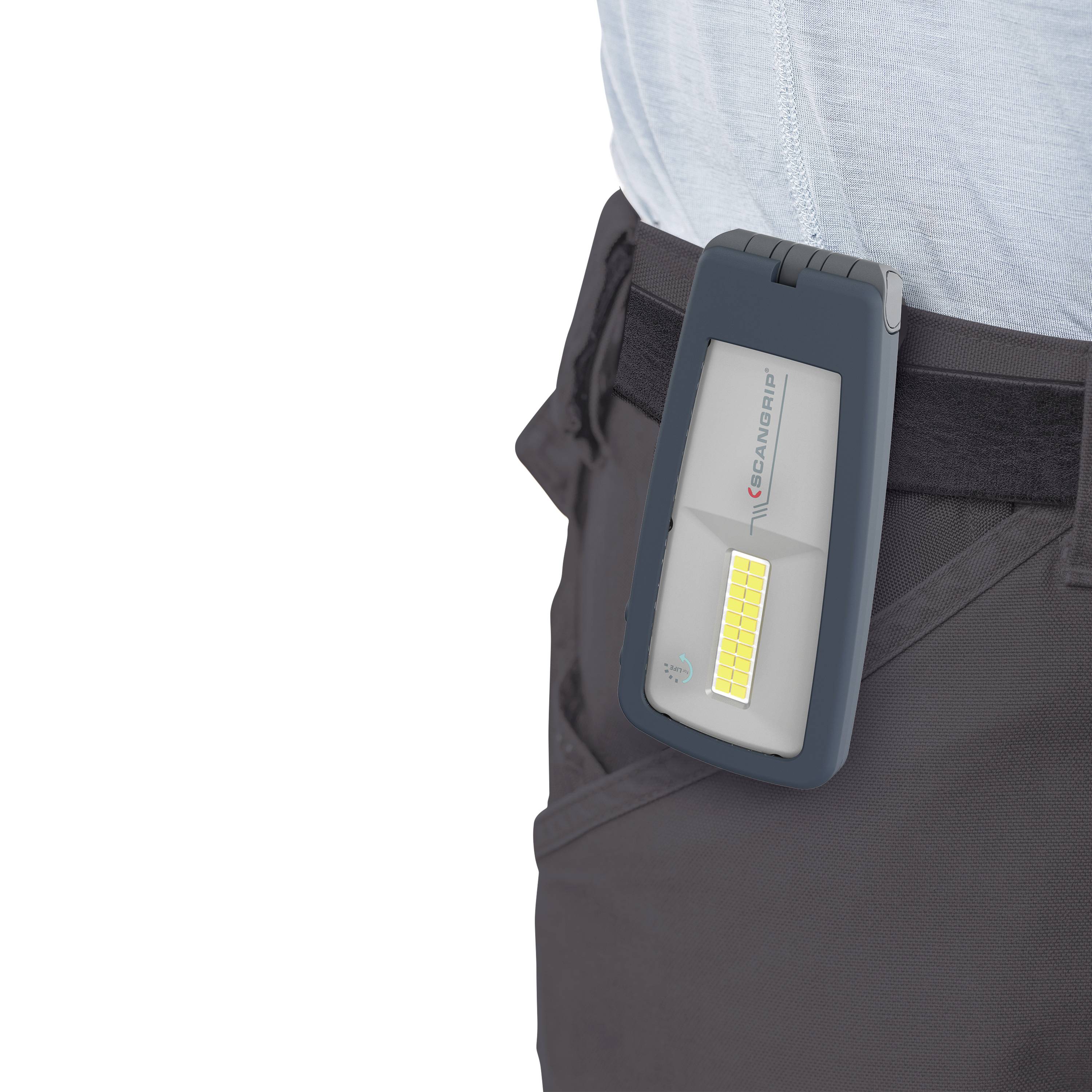

A person is wearing a portable LED night light on their belt. The light is compact and designed to provide mobile illumination.

A wall with tools, including screwdrivers, voltage testers, pliers and spanners, neatly arranged in a grid pattern.

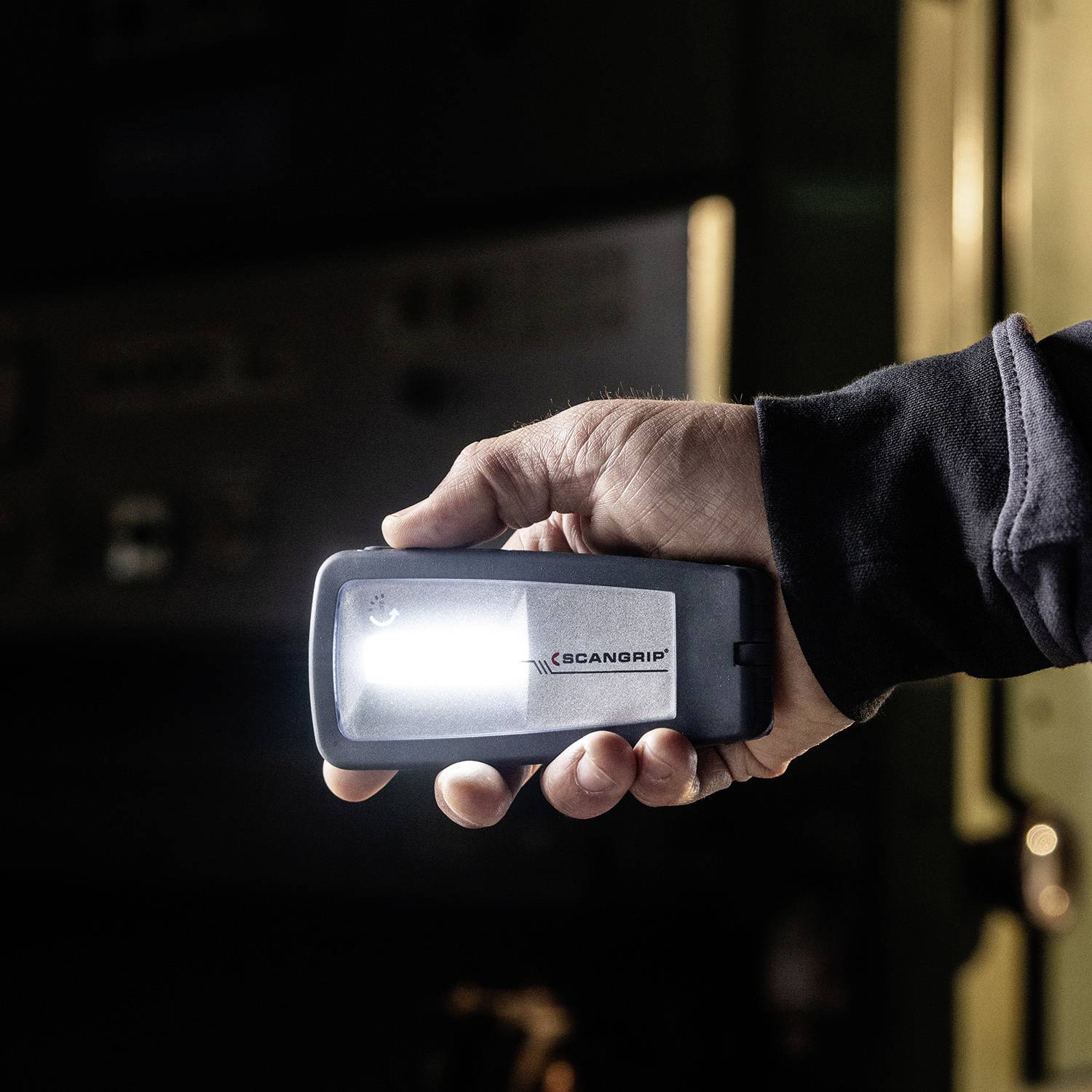

A person is holding a portable work light in their hand, which is illuminating in the dark. Their hand is clothed in a black sleeve.

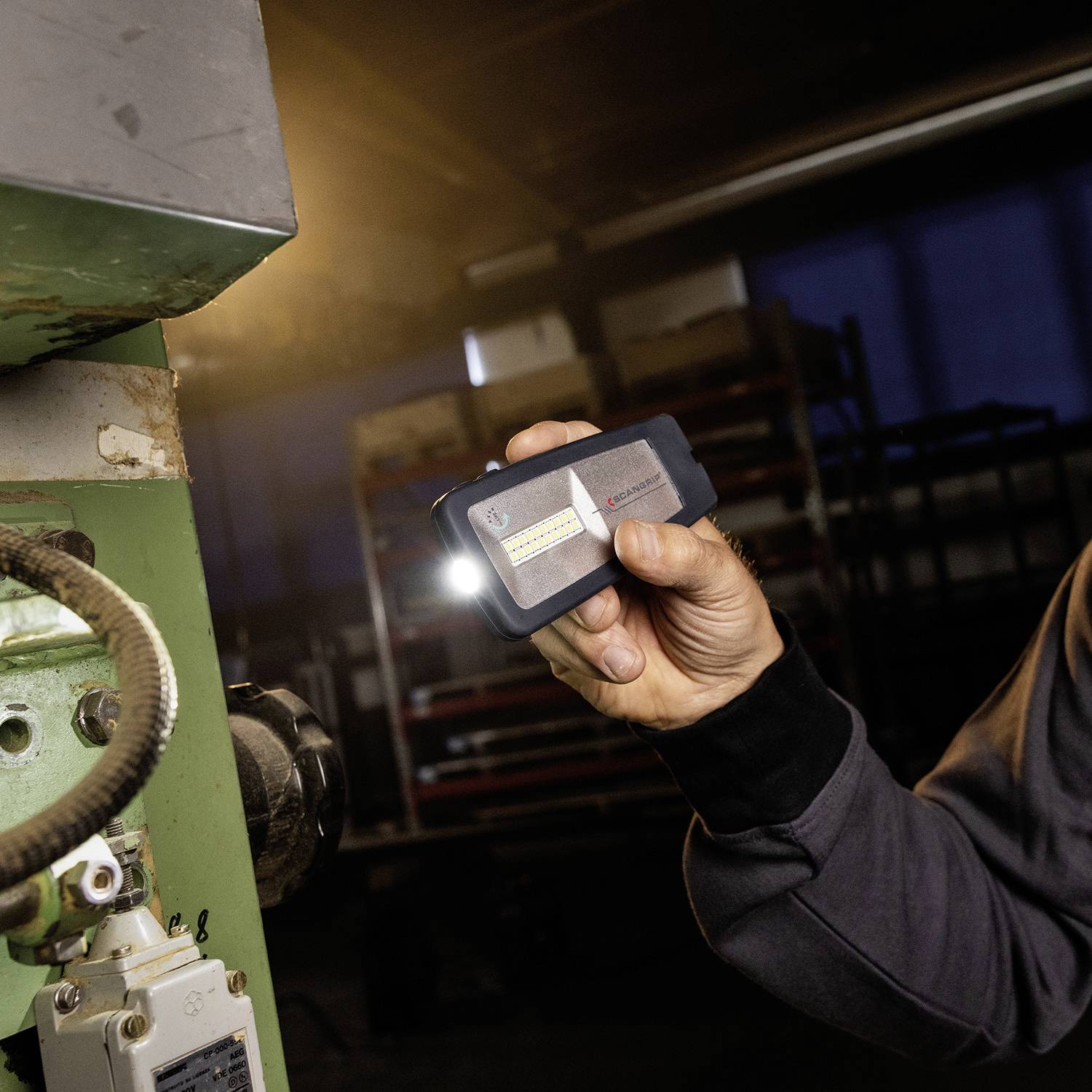

A person is holding a small, rectangular measuring device with a glowing light in their hand. The surroundings appear industrial.

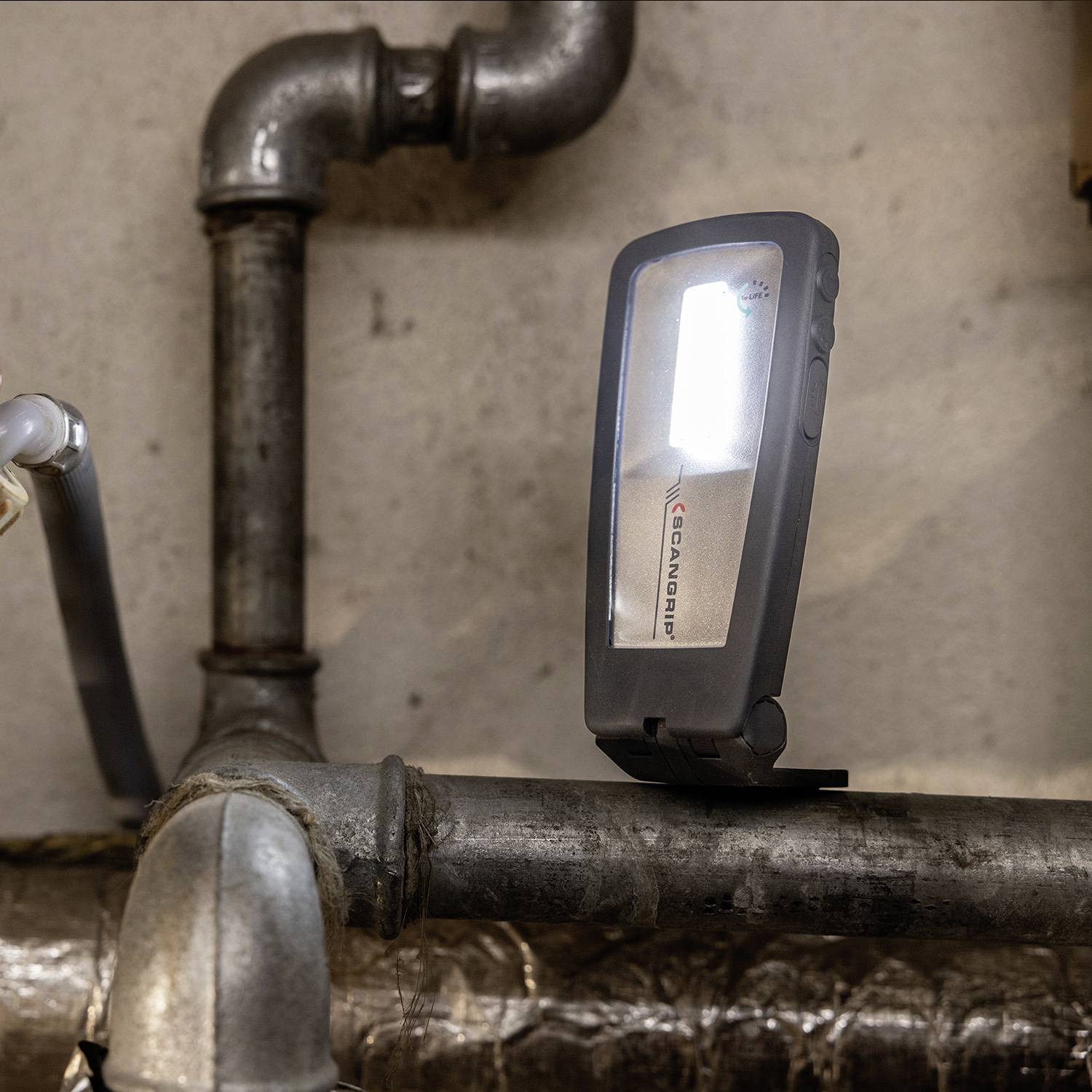

A small portable lamp illuminates a grey pipe in a cellar or workspace.

Portable, rechargeable LED work light with rotating base and magnet, perfect for precise illumination during repairs.

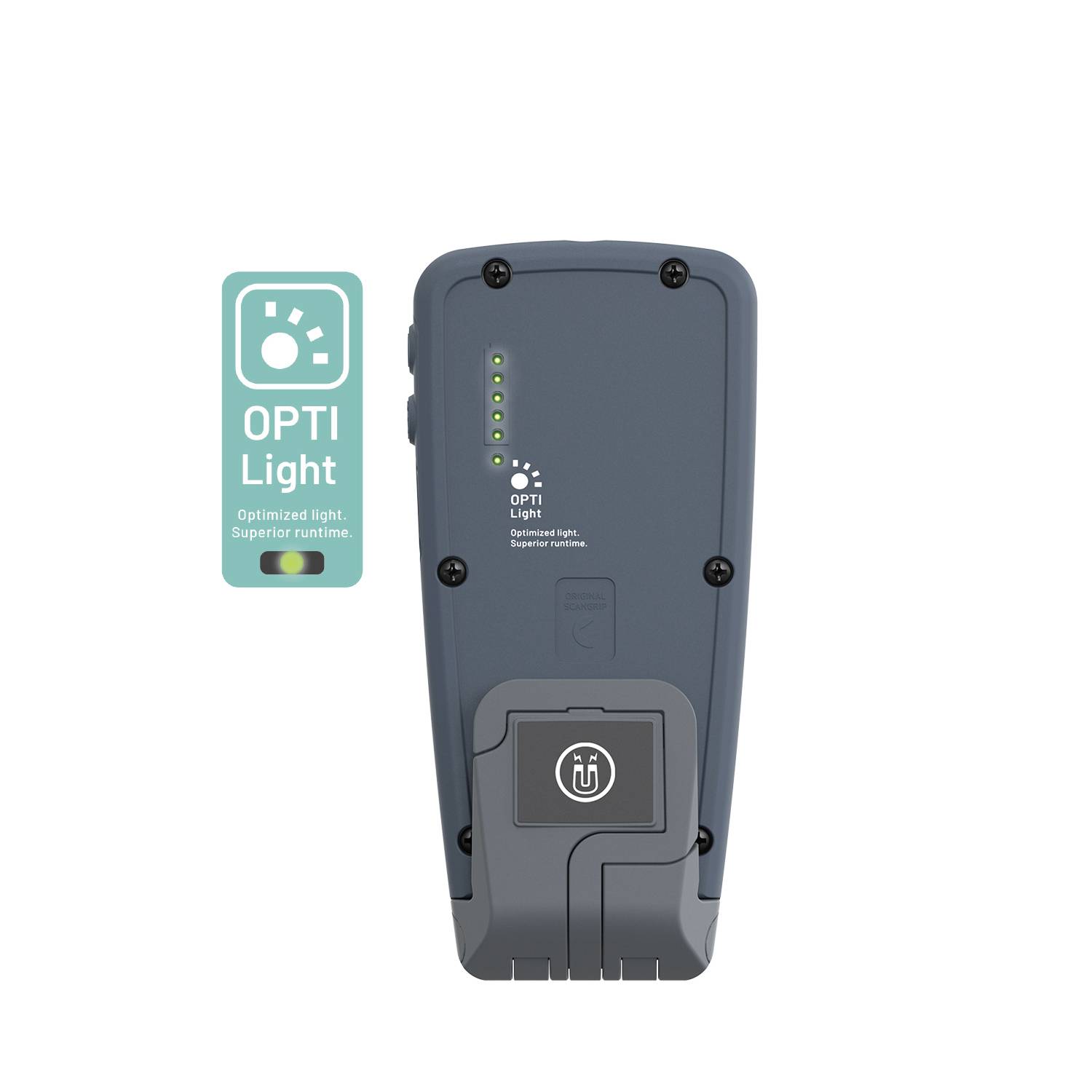

A grey charger with LED indicator and 'OPTI Light' label. Shows charging status and optimised light performance.

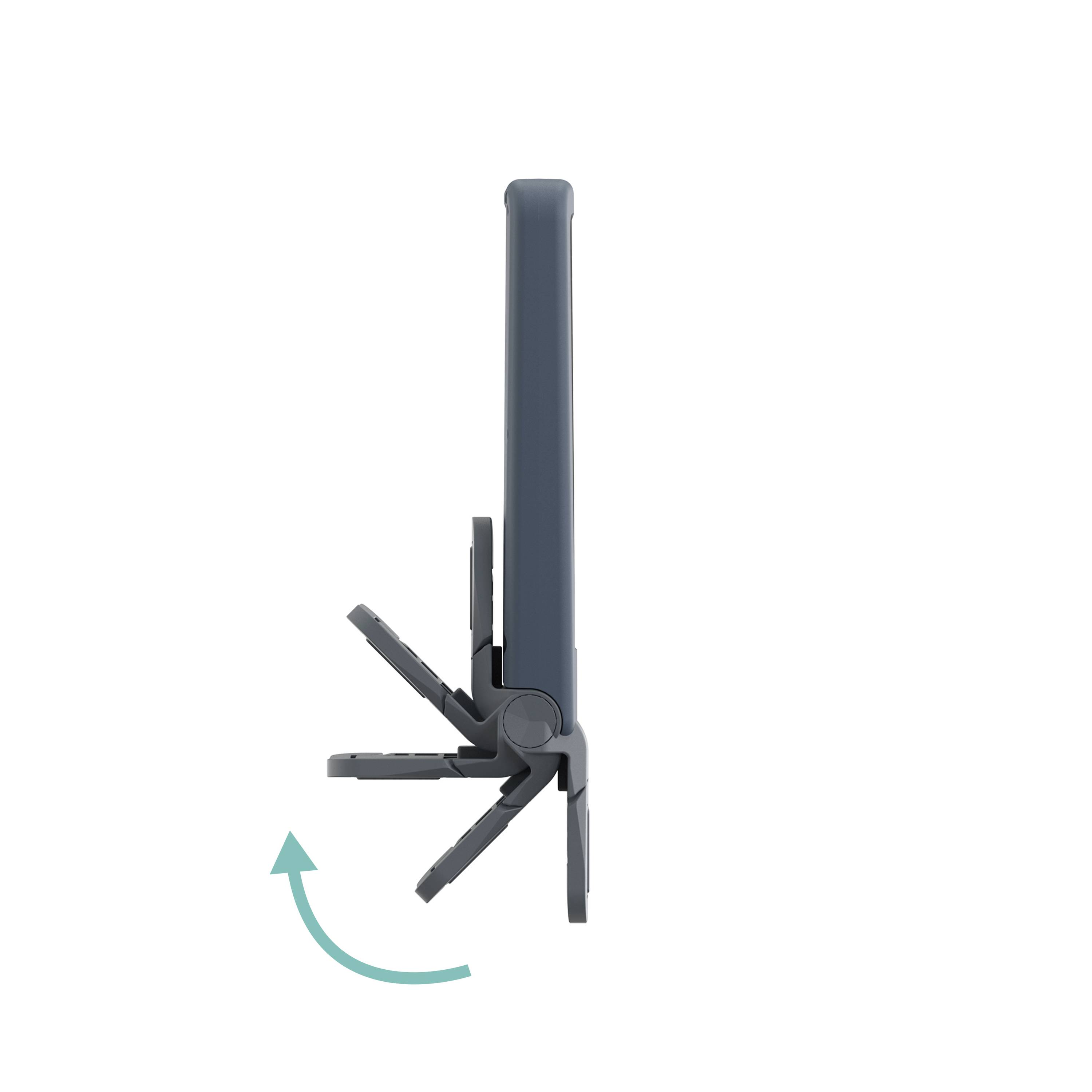

Tablet stand viewed from the side. A green, curved arrow indicates a potential positioning movement.

A tablet holder shows a 180-degree adjustable angle with arrows and a 180-degree text arc above it.

1/10

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 77.99 / piece)

€ 77.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Miniform LED work light, max. 200 lm

Handy, rechargeable LED-work light
Min. 1,000 charging cycles per battery life
180° adjustable tilt
7% recycled material
Battery level indicator

Technical specifications

Integrated rechargeable battery Li-Ion 1010 mAh
Working light: Highly efficient multi LED design with 20 LEDs
Angle of radiation 115°
Luminous flux, lumen: 20-200
Adjustable light yield 3 levels
Operating time OPTILight 7 h

Dim: (L x W x H) 126 x 60 x 23.5 mm

Product type: Work light

Work light features: Incl. battery

Bulb type: LED (monochrome)

Technology: Li-ion

Operating voltage: 3.7

Colour temperature type: 5700 K

Weight: 106 g

Charging time: 3 h

Luminous flux: 200 lm

Width: 60 mm

Height: 23.5 mm

Length: 126 mm

Protection class: IP65

: n.rel.

No. of power packs included: 1

Depth: 23.5 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3381480 Scangrip 03.6207 MINIFORM LED (monochrome) Work light 200 lm No. of power packs included 1

User & Safety Instructions

User & Safety Instructions 3381480 Scangrip 03.6207 MINIFORM LED (monochrome) Work light 200 lm No. of power packs included 1

Conformity certificate

Conformity certificate 3381480 Scangrip 03.6207 MINIFORM LED (monochrome) Work light 200 lm No. of power packs included 1

Description

MINIFORM is a portable LED work light that can be recharged via USB-C and is designed for professional users.
This compact hand lamp is robust, water and dust-proof (IP65) and can be used in difficult working environments.
The MINIFORM work light is equipped with a built-in magnet and hook for flexible positioning as well as a clip for comfortable carrying at the belt.
The ergonomic design provides for a comfortable grip and enables easy storage in the bag and a quick access.
The MINIFORM has a highly efficient multi-LED design with 20 LEDs and offers an adjustable light output of up to 200 lumen.
With a focused beam of 120 lumens, it provides concentrated illumination for inspection tasks.
The user-friendly battery display keeps you updated over the battery status.
The OPTILight settings provide the illumination level (LUX) required in a typical working situation and with a simple touch ensures optimum light and operating time.
Moreover, this work lamp provides a constant lumen output, measured according to the European standard EN 13032-1. Separate on/off and brightness buttons.
Dual temperature monitoring for protection of lamp and battery. Min 1,000 charging cycles lifespan. 7% recycled material.

This text is machine translated.
