Name: Schellenberg 50101 Belt winder Compatible with Schellenberg Maxi
Brand: Schellenberg
SKU: 2624113
Availability: SoldOut

'Rollo-System 50101' by Schellenberg. Packaging shows parts and dimensions: Width 10.5–12.5 cm, maximum 5 m length. 'Made in Germany'.

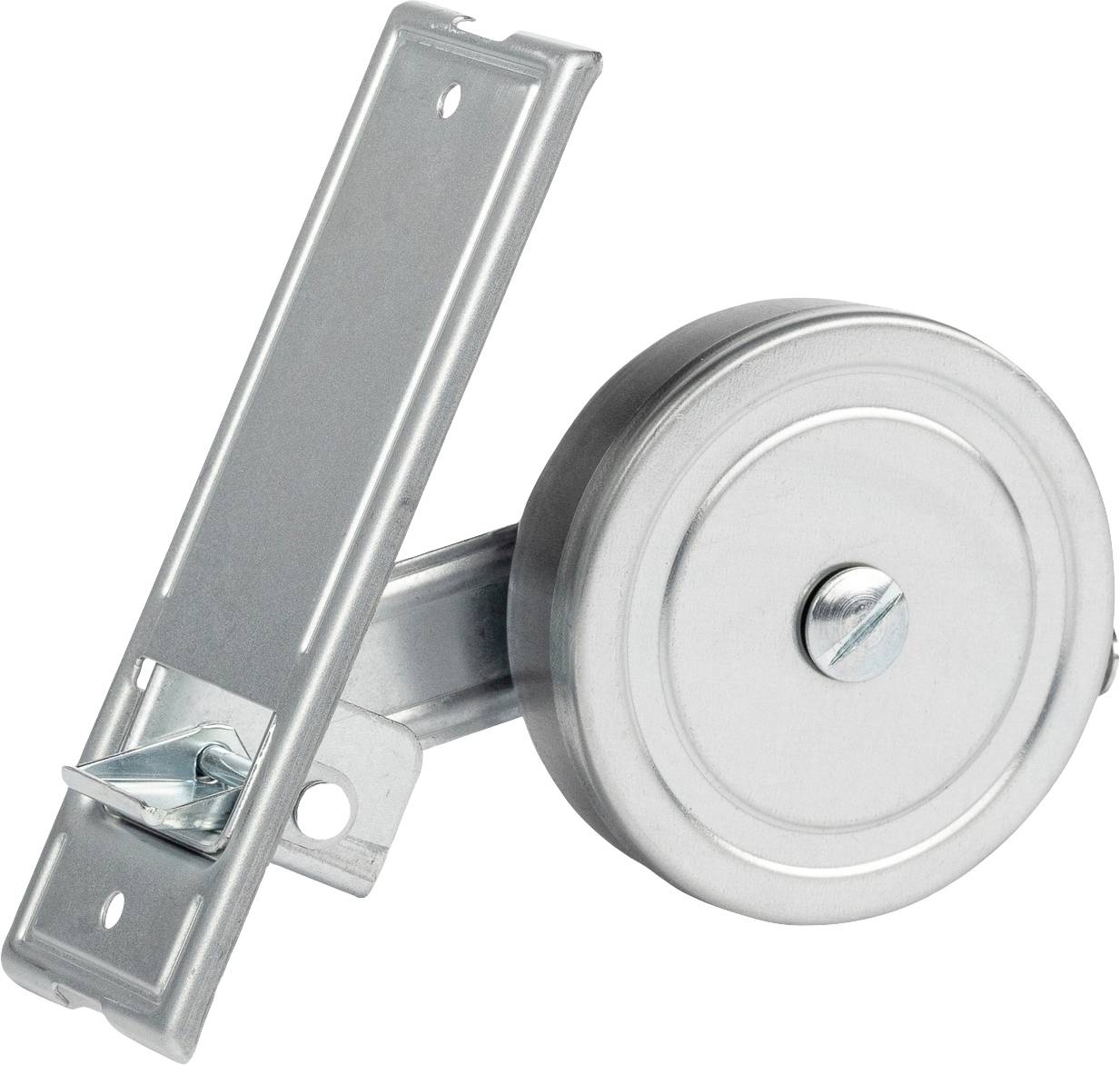

Metal castor with mounting bracket, possibly a furniture wheel.

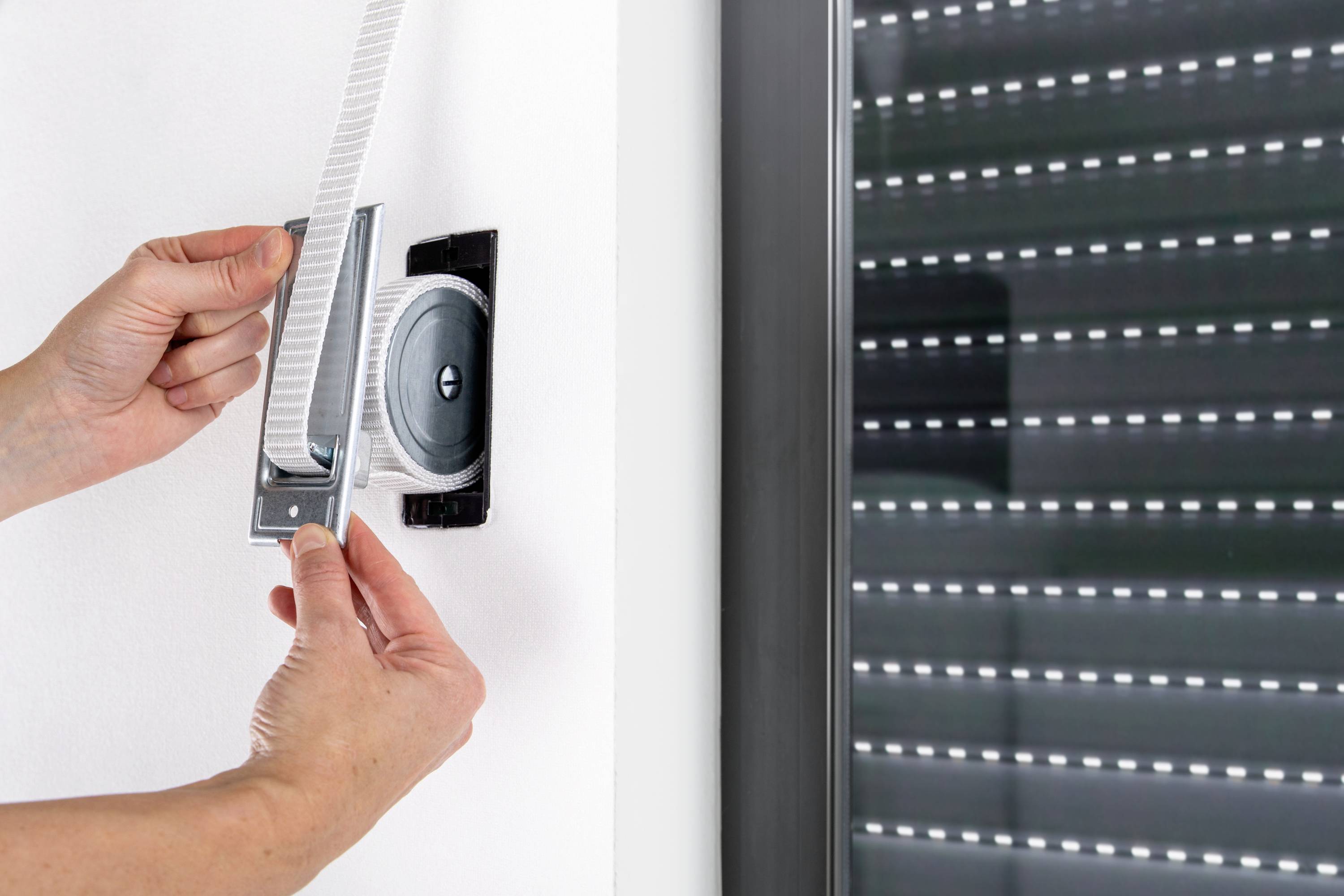

A person pulls on a roller blind cord next to a closed slatted window.

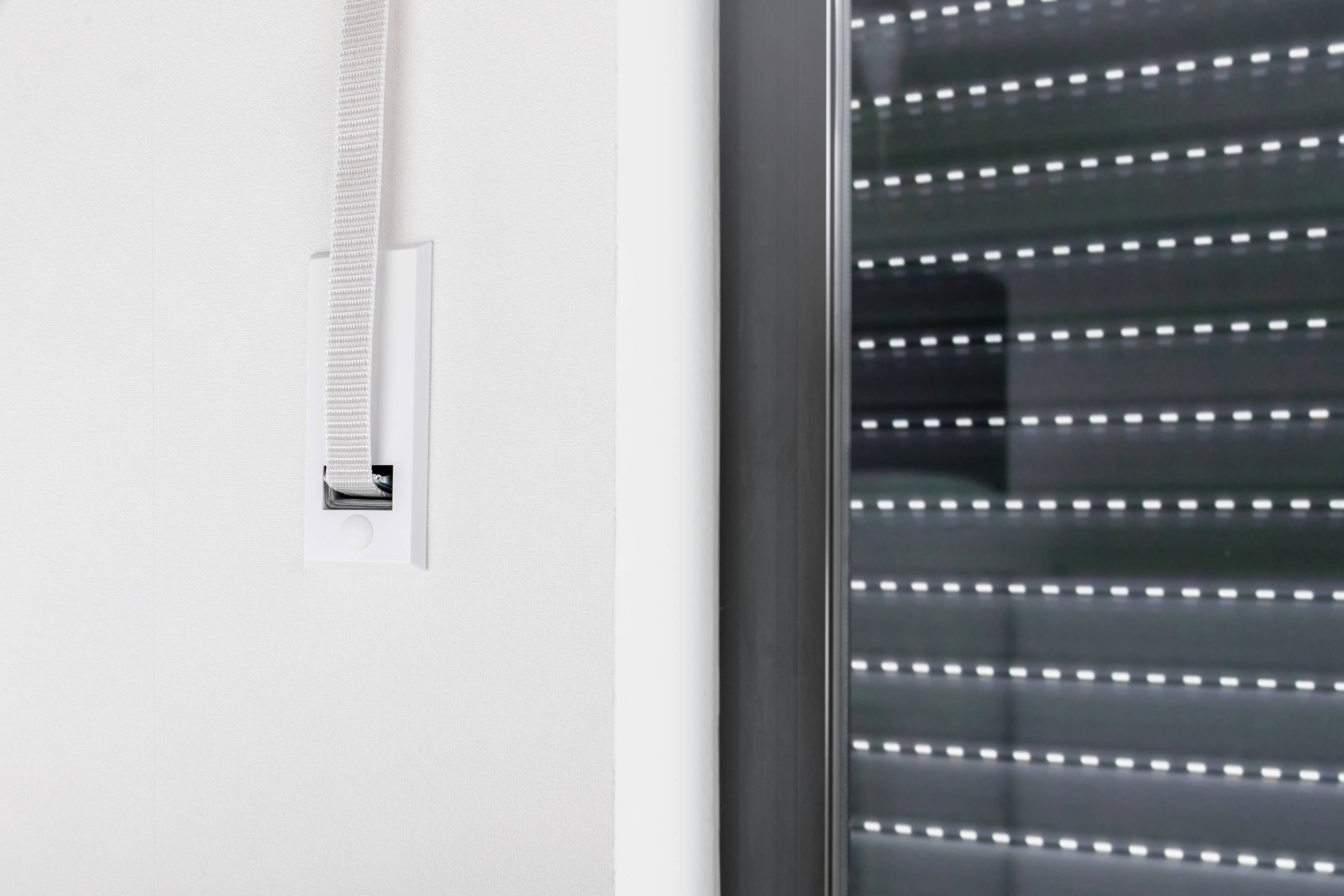

Venetian blind with a cord mounted on the wall beside a window. It is partially closed, with light filtering through the slats.

1/4

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 5.49 / piece)

€ 5.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Schellenberg 50101 Inlet winder Maxi hole distance 10.5 cm

Robust inlet winder for shutters up to 2.30 m highRoller shutter system Maxi, 105 mm hole distanceMax. 5.0 m belt length and 23 mm belt widthPre-tensioned spring, installation depth adjustable between 108 and 128 mmIndividually expandable with separately available Schellenberg cover plate

Technical specifications

Hole spacing: 105 mmDepth: 108 to 128 mmBelt length: Max. 5.0 mBelt width: Max. 23 mmShutter height: Max. 2.30 mMaterial: Galvanized steel

Product type: Belt winder

Compatible with: Schellenberg Maxi

Belt width: 23 mm

Width: 50 mm

Height: 129 mm

Depth: 108 mm

Dim: (W x H x D) 50 x 129 x 108 mm

Hub: Not required

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2624113 Schellenberg 50101 Belt winder Compatible with Schellenberg Maxi

Description

This galvanized steel inlet winder is particularly robust and durable. It is compatible with the Maxi roller shutter system and is therefore designed for a belt width of 23 mm. The winding capacity of the drum is suitable for shutters up to a height of 2.30 m and a maximum belt length of 5.0 m.The belt winder is flush-mounted in a suitable wall box and has a hole distance of 105 mm. The installation depth is variable, since the spring drum can be moved by up to 2 cm if required. The spring of the belt winder is pre-tensioned to allow easy mounting of the belt strap.For an individual design of the belt winder, suitable for your living environment, no cover plate is included in the delivery. These are available separately in different designs and with a suitable hole spacing.

This text is machine translated.
