Name: Schellenberg 50201 Belt winder Compatible with Schellenberg Maxi
Brand: Schellenberg
SKU: 2624120
Availability: SoldOut

A silver magnetic catch and a metal counterplate. Primarily used for the discreet closing of doors or cabinets.

'Packaging for Roller Blind System 50201 by Schellenberg. Contains product illustration and dimensions. Made in Germany.'

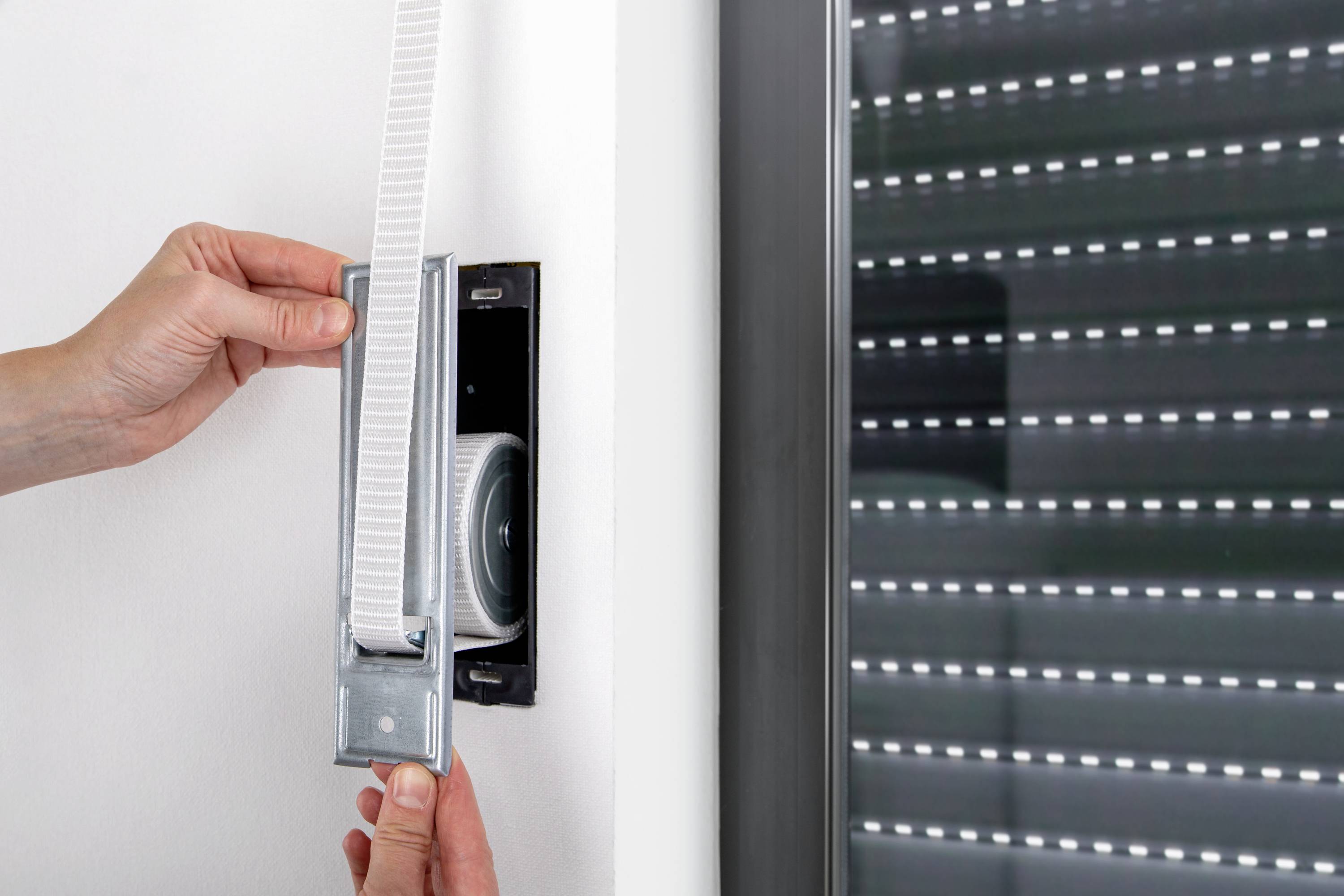

A person installs or repairs a blind on a window by inserting the webbing into a wall bracket.

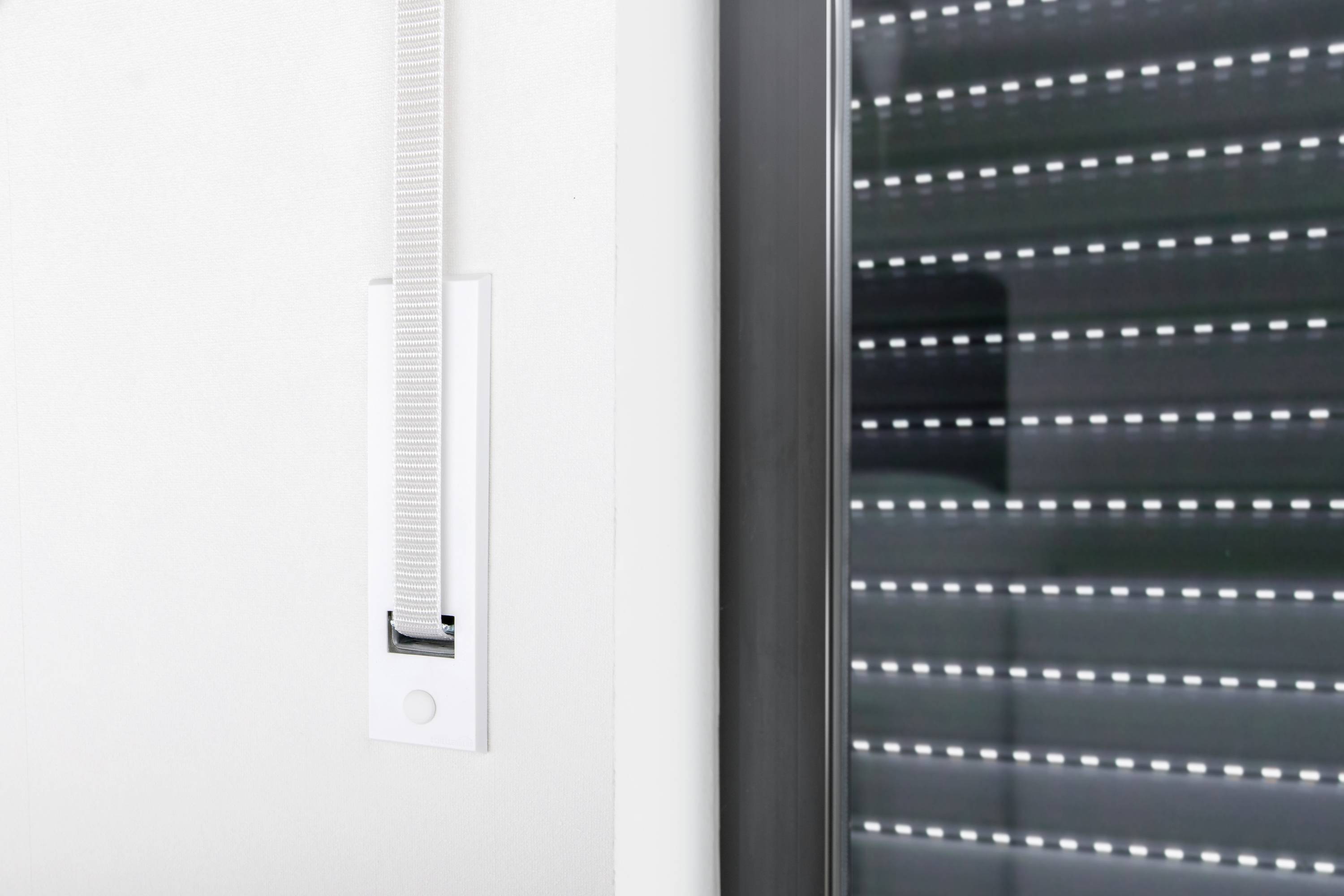

An automated roller blind opens at a large window in a modern room. The motor and strap are visible.

1/4

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 7.49 / piece)

€ 7.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Schellenberg 50201 Inlet winder Maxi hole spacing 16.0 cm

Robust inlet winder for shutters up to 2.30 m highMaxi roller shutter system, 160 mm hole spacingMax. 5.3 m belt length and 23 mm belt widthPre-tensioned spring, installation depth adjustable between 115 and 135 mmIndividually expandable with separately available Schellenberg cover plate

Technical specifications

Hole spacing: 160 mmDepth 115 to 135 mmBelt length: Max. 5.3 mBelt width: Max. 23 mmShutter height: Max. 2.30 mMaterial: Galvanized steel

Product type: Belt winder

Compatible with: Schellenberg Maxi

Belt width: 23 mm

Width: 50 mm

Height: 194 mm

Depth: 122 mm

Dim: (W x H x D) 50 x 194 x 122 mm

Hub: Not required

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2624120 Schellenberg 50201 Belt winder Compatible with Schellenberg Maxi

Description

This galvanized steel inlet winder is particularly robust and durable. It is compatible with the Maxi roller shutter system and is therefore designed for a belt width of 23 mm. The winding capacity of the drum was suitable for shutters up to a height of 2.30 m, which corresponds to a maximum belt length of 5.3 m.The belt winder is flush-mounted in a suitable wall box and has a hole distance of 160 mm. The installation depth is variable, since the belt drum can be moved by up to 2 cm if required. The spring of the belt winder is pre-tensioned to allow easy mounting of the belt strap.For an individual design of the belt winder, suitable for your living environment, no cover plate is included in the delivery. These are available separately in different designs and with a suitable hole spacing.
