Highlights & Details

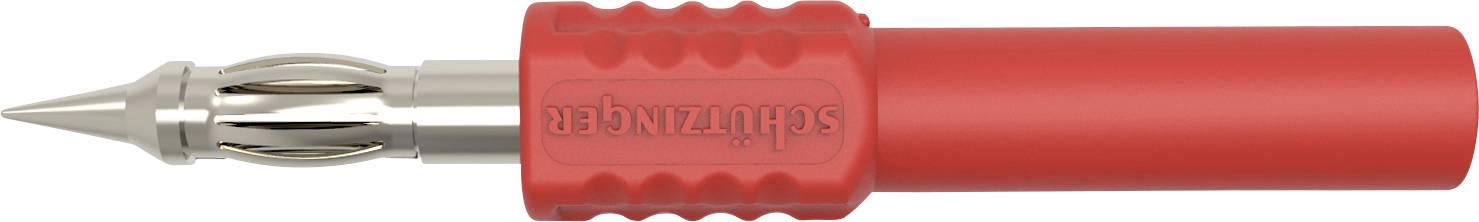

PRUEF 9540 probe / RT

Nominal current 3 A, 32 A
Socket Ø 4 mm;Red

Technical specifications

Colour: red.
Diameter of socket 4 mm
Connection 1: Socket
Design 4 mm-Program
Contact parts: Nickel-plated
Connection: Ø 4 mm socket
Constant resistance: 3 mΩ
Rated voltage 30 VAC / 60 VDC
Rated current 3A;32A
Operating temperature from -25 °C to +80 °C

Product type: Test tip

Connection: Socket

Nominal voltage: 30 V AC
60 V DC

Factory colour: Red

Jack diameter: 4 mm

Tip diameter: 2 mm

Max. resistance: 3 mΩ

Nominal current: 3 A
32 A

Nominal current - rounded value: NaN A

(Ø): 4 mm

Plug features: Scoop-proof

Temperature range: From -25 °C to +80 °C. °C

Type: 4 mm program

Connector type: straight

Contact material: Nickel plated

Documents & Downloads

Datasheet

Datasheet 3385797 Schützinger PRUEF 9540 / RT Test tip 99023194 Socket Red 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3385797 Schützinger PRUEF 9540 / RT Test tip 99023194 Socket Red 1 pc(s)

Description

Universal application, since the contact tips can be changed for different measuring tasks in the housing of the probe tip.
Design with spring-loaded steel tip for accurate measurement on PCBs and SMD components. Can also be used non-slip on components with DIL grids in conjunction with the tip cover.
2 mm + 2.4 mm spring basket tips for the measurement hole at serial terminals.
Versions as test tip with axial safety socket, and ready-made test lead.
The probe tip inserts can be ordered individually after wear. This helps to save costs in the long term and contributes to the environment.

This text is machine translated.

Description

Universal application, since the contact tips can be changed for different measuring tasks in the housing of the probe tip.
Design with spring-loaded steel tip for accurate measurement on PCBs and SMD components. Can also be used non-slip on components with DIL grids in conjunction with the tip cover.
2 mm + 2.4 mm spring basket tips for the measurement hole at serial terminals.
Versions as test tip with axial safety socket, and ready-made test lead.
The probe tip inserts can be ordered individually after wear. This helps to save costs in the long term and contributes to the environment.

This text is machine translated.
