SelfSat H 30 D2 SAT system w/o receiver No. of participants: 2
EAN:
Part number:
Item no:
Datasheet (PDF)
7 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 105.03 / piece)
€
Only 7 Piece(s) available
Highlights & Details

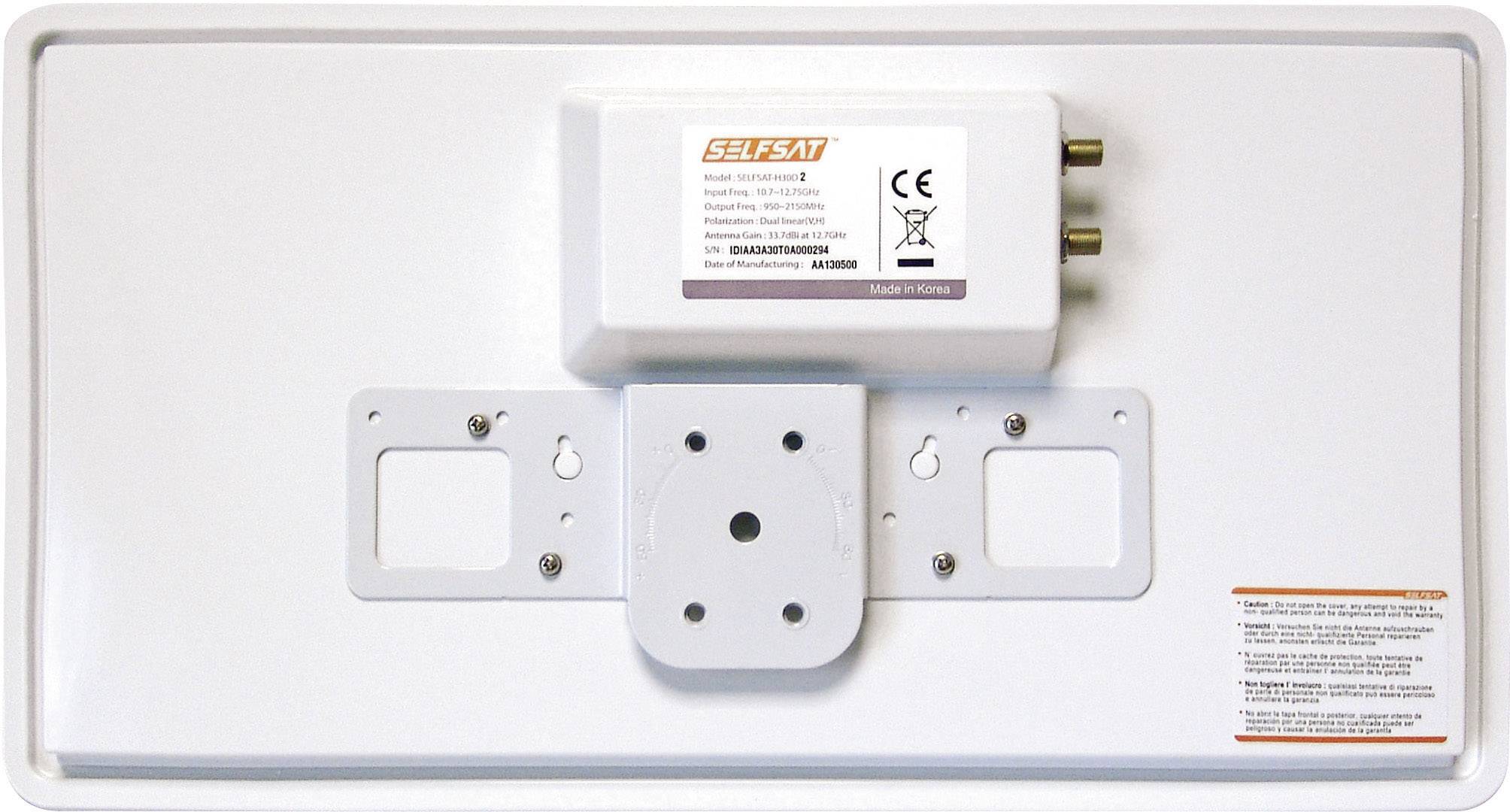

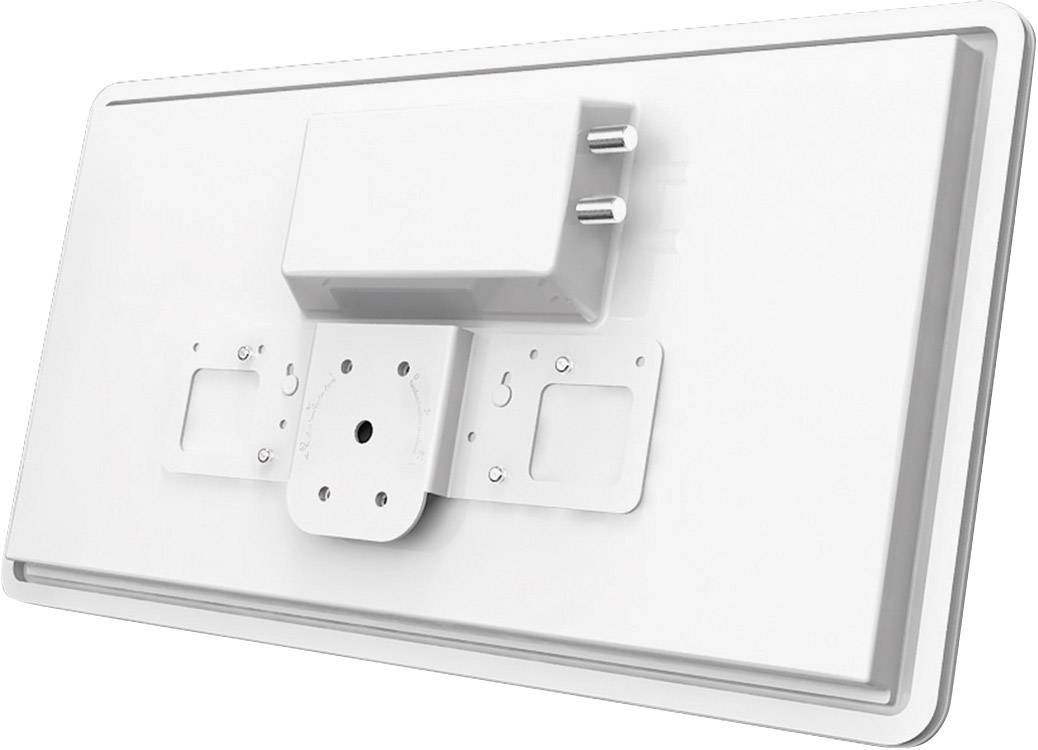

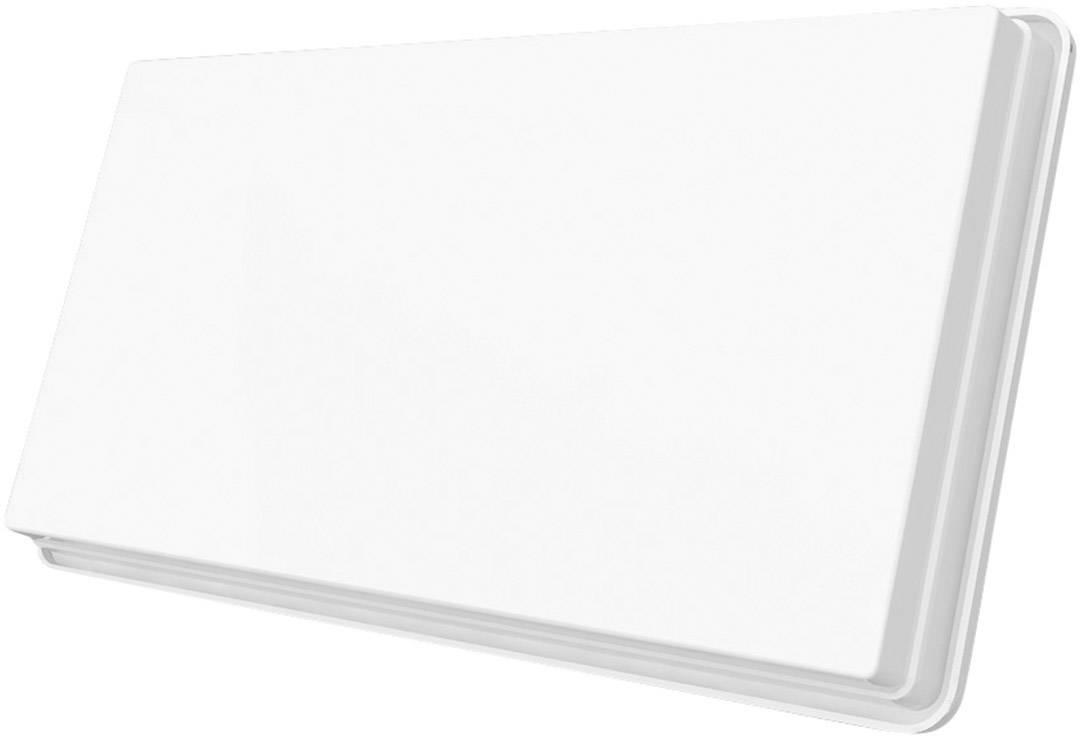

SelfSat H30 D2
- The (almost) invisible satellite antenna for 2 receivers
- Twin LNB integrated and pre-assembled
- Easy to use
- 2 receivers can be connected directly
Technical specifications
- Participants
2
Twin LNB
- Depth
58 mm
- Height
277 mm
- Width
512 mm
- Reflective material
Plastic
- Colour (SAT dish)
White
- Package content
SAT dish
LNB
- Pole mount (max.)
60 mm
- Pole mount (min.)
40 mm
- Satellites
1
- Weight
4 kg
- Product type
SAT system w/o receiver
Documents & Downloads
Datasheet
Datasheet 943059 SelfSat H 30 D2 SAT system w/o receiver No. of participants: 2
User & Safety Instructions
User & Safety Instructions 943059 SelfSat H 30 D2 SAT system w/o receiver No. of participants: 2
Description
Completely in white, the shapely, unbelievably small satellite antenna provides the desired reception freedom to every television consumer completely inconspicuously.
Below is a selection of satellite positions for TV satellites than can be received for Europe:
Eutelsat (Hot Bird), 13° east from reflector diameter 60 cm
Astra, 19.2° east, from dia. 35 cm
Astra, 23.5° east, from dia. 50 cm
The specified reflector diameter is the minimum for normal satellite antennas, and no bad weather reserve has been taken into account. It has also been assumed that you only wish to receive digital programmes. If in doubt, take a reflector one size larger to receive the corresponding satellite without any problems
This text is machine translated.
Below is a selection of satellite positions for TV satellites than can be received for Europe:
Eutelsat (Hot Bird), 13° east from reflector diameter 60 cm
Astra, 19.2° east, from dia. 35 cm
Astra, 23.5° east, from dia. 50 cm
The specified reflector diameter is the minimum for normal satellite antennas, and no bad weather reserve has been taken into account. It has also been assumed that you only wish to receive digital programmes. If in doubt, take a reflector one size larger to receive the corresponding satellite without any problems
This text is machine translated.
Features

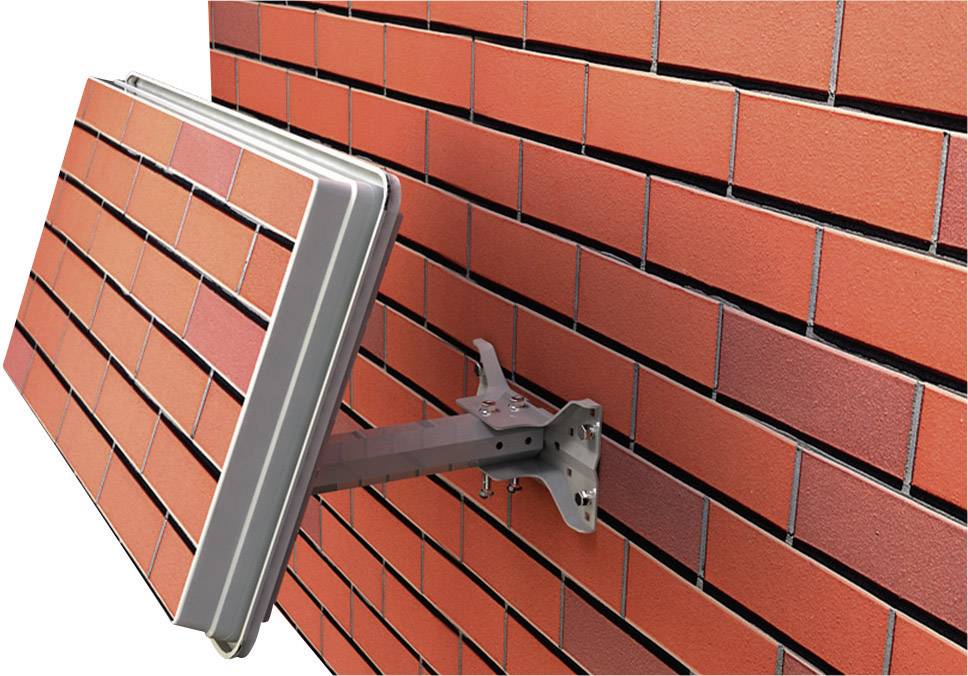

- Compact design, almost invisible through stickable motives
- Universal application possibilities
- Reception of digital Sat- and radio programmes
- Reception power (Gain) 33.7 dB at 12.75 GHz
- Temperature resistant from -30 to +60ºC
- Reception frequency 10.7 - 12.75 GHz
- Oscillation frequency 9.75 / 10.6 GHz
Scope of delivery
- Antenna
- Fixings
- User manual.
