Schwaiger SPI991.1SET SAT system w/o receiver No. of participants: 4
EAN:
Part number:
Item no:
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
Only 4 Piece(s) available
Highlights & Details

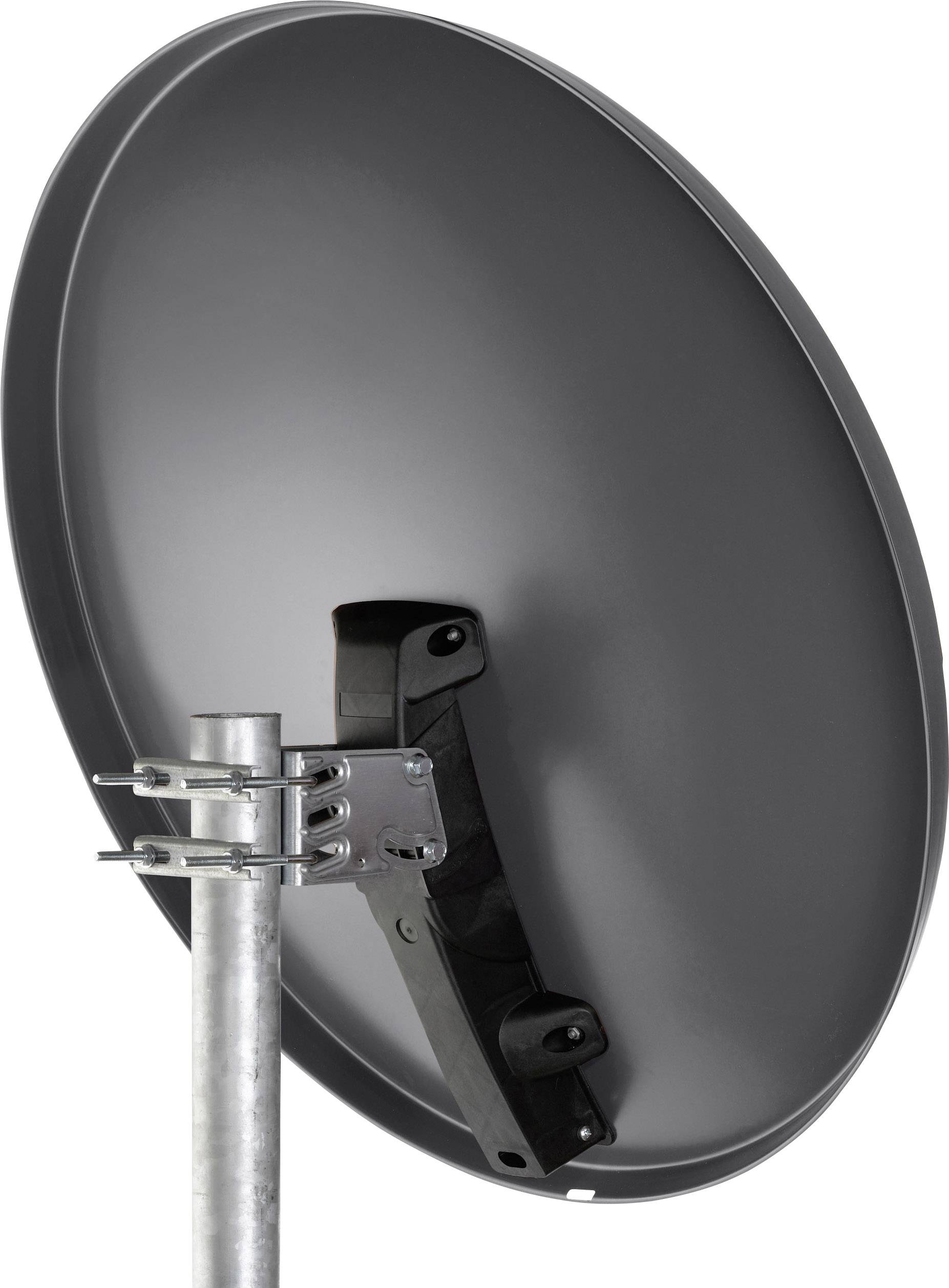

Schwaiger 80 cm aluminium SAT-dish anthracite + quad LNB
- Oval shape of the reflector
- Very stable feed-arm
- Including Quad-LNB (with switch) in dish colour
Technical specifications
- Reflector (width x height): 745 x 845 mm
- Frequency range 10.70 - 12.75 GHz
- Antenna gain (max.) 38.5 dB
- Setting range Elevation: 5 - 48°
- Offset angle: 25°
- Half-value width<: 2.2°
- Cable guide 48 x 22 mm
- LNB input frequency: 10.70 - 11.70 GHz (low) / 11.70 - 12.75 GHz (high)
- LNB output frequency 950 - 2150 MHz
- LNB decoupling> 25 dB
- LNB oscillation frequency: 9.75 GHz (low) / 10.60 GHz (high)
- LNB amplification (typical)>: 55 dB
- LNB control function: 0 kHz (low) / 22 kHz (high)
- LNB voltage supply: 10.5 - 14.0 V (vertical) / 16.0 - 19.0 V (horizontal)
- LNB current consumption: Type. <220 mA
- Participants
4
Quad LNB (with switch)
- Factory colour
Anthracite
- Height
85 cm
- Width
75 cm
- Connector
F socket
F socket
F socket
F socket
- LNB feed size
40 mm
- Package content
LNB
SAT dish
- Pole clamp
32 - 76 mm
- Satellites
1
- UKCA
not relevant
- Product type
SAT system w/o receiver
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 943696 Schwaiger SPI991.1SET SAT system w/o receiver No. of participants: 4
Warranty Terms
Warranty Terms 943696 Schwaiger SPI991.1SET SAT system w/o receiver No. of participants: 4
Description
SAT-reflector made of aluminium, ideal for one / multiple subscribers or multi-feed systems, high bad weather reserve and especially stable feed arm.
Features
- Materials:
- Mirror: Aluminium
- Mirror holder: galvanised steel/plastic
- Feed arm: Aluminium
- Feed holder: plastic
Scope of delivery
- SAT-reflector
- Quad LNB.
- Mast holder
