Schwaiger SPI5500SET2 SAT system w/o receiver No. of participants: 2

A satellite dish with the 'SCHWAIGER' logo in blue, mounted on a pole, with an LNB on the arm.

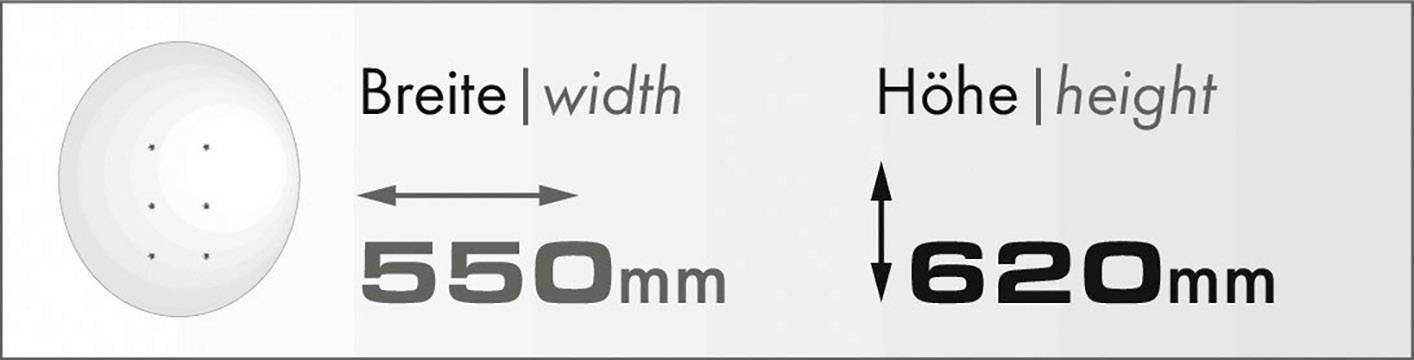

'The image shows the dimensions of a disc: width 550 mm, height 620 mm.'

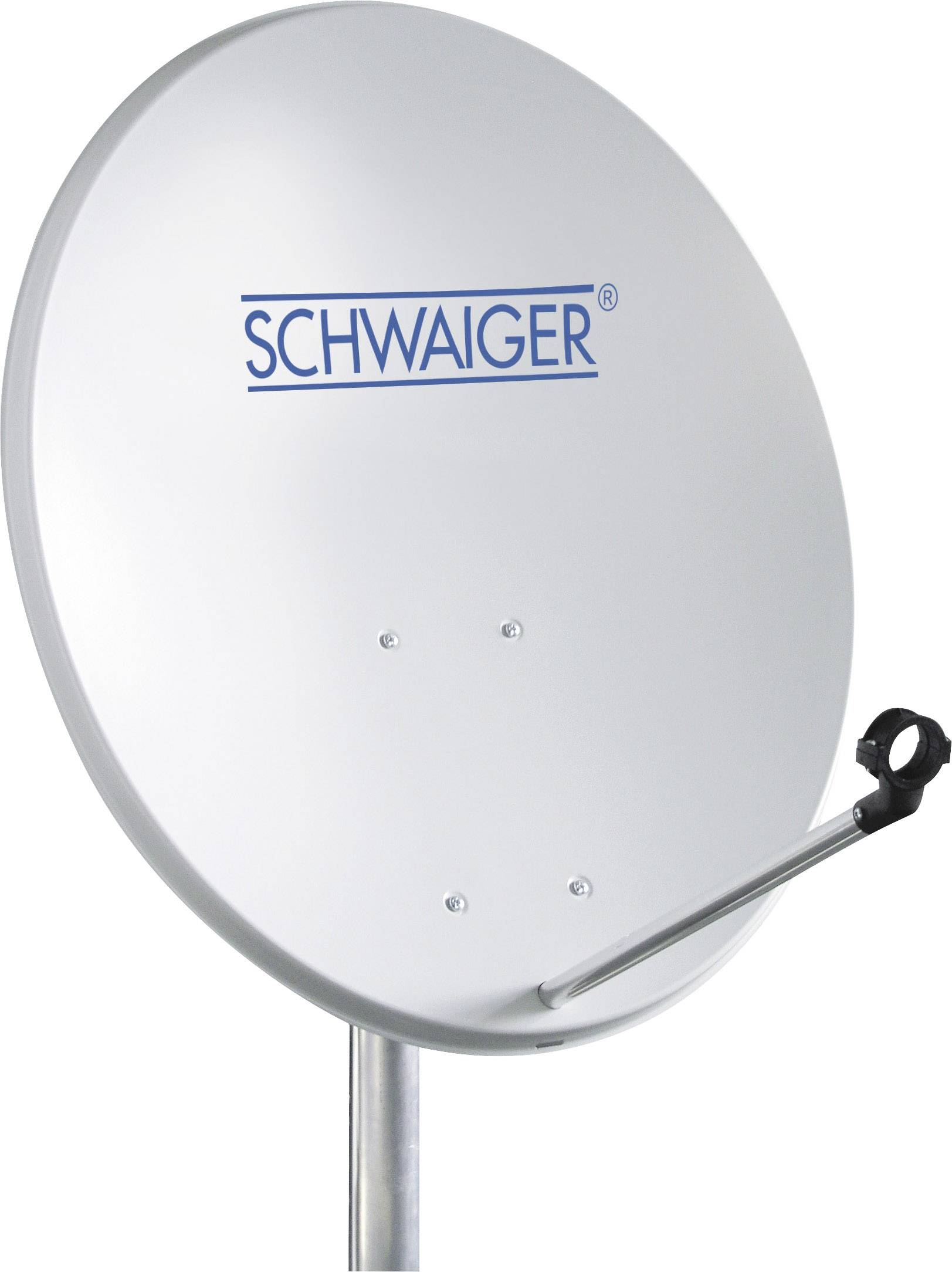

Satellite dish with the inscription 'Schwaiger', mounted on a stand.

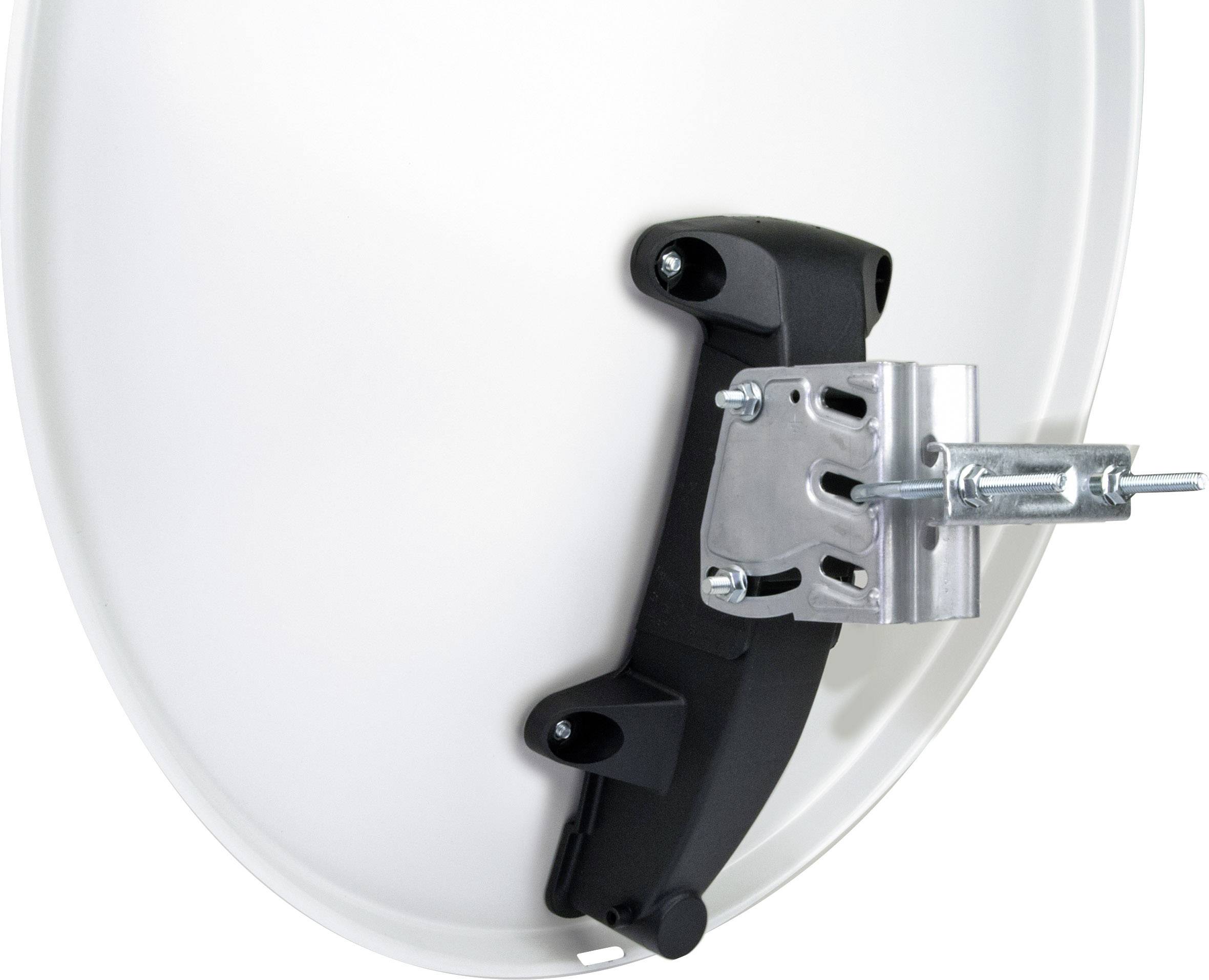

Satellite dish with mounting bracket on a wall, showing the top left part of the dish and its fixings.
Grey LNB satellite receiver with white head, marked with 'HD', used for amplifying satellite signals.

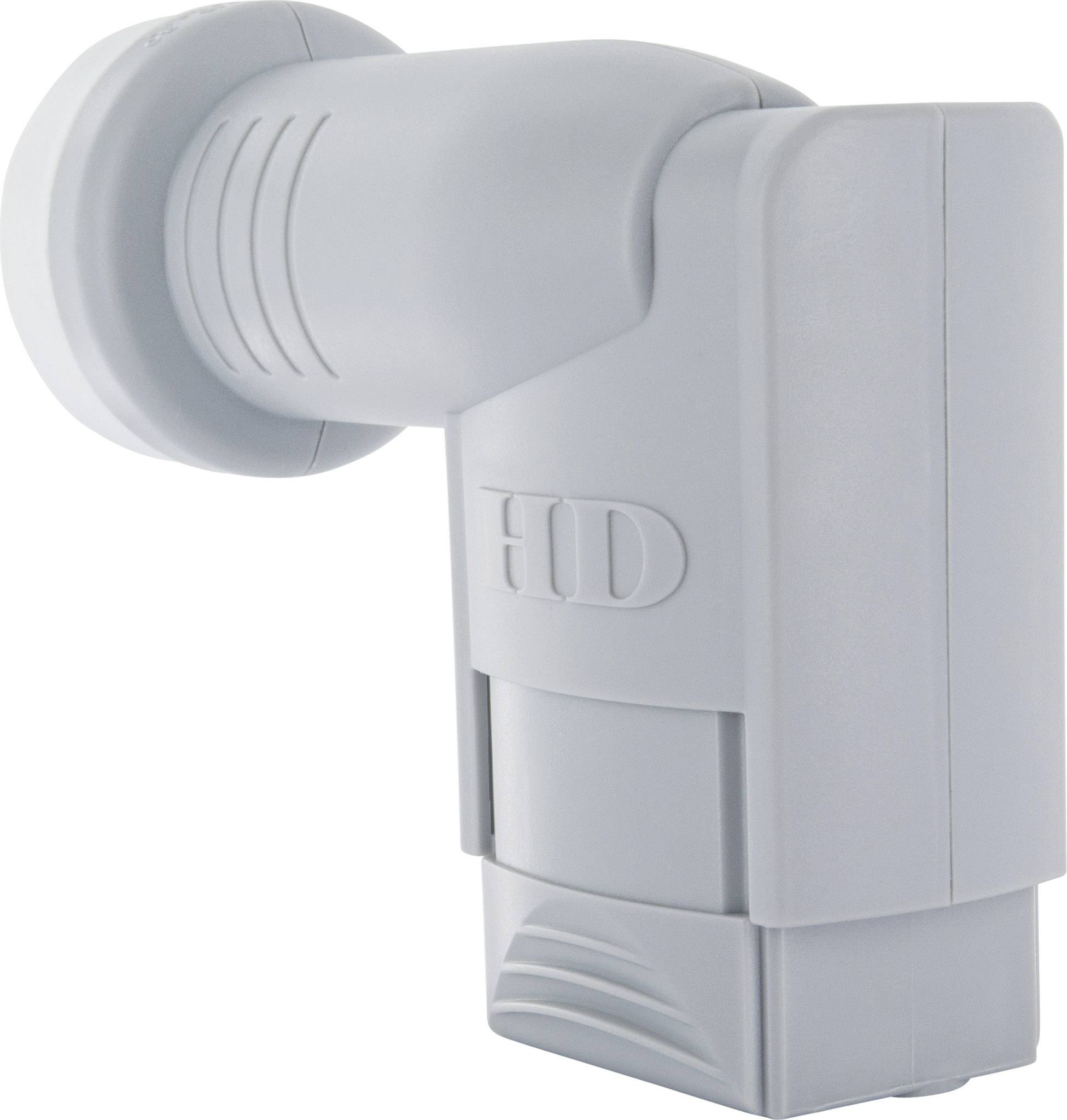

Grey, plastic satellite LNB with a rectangular design and a visibly embossed 'HD' lettering on the front side.

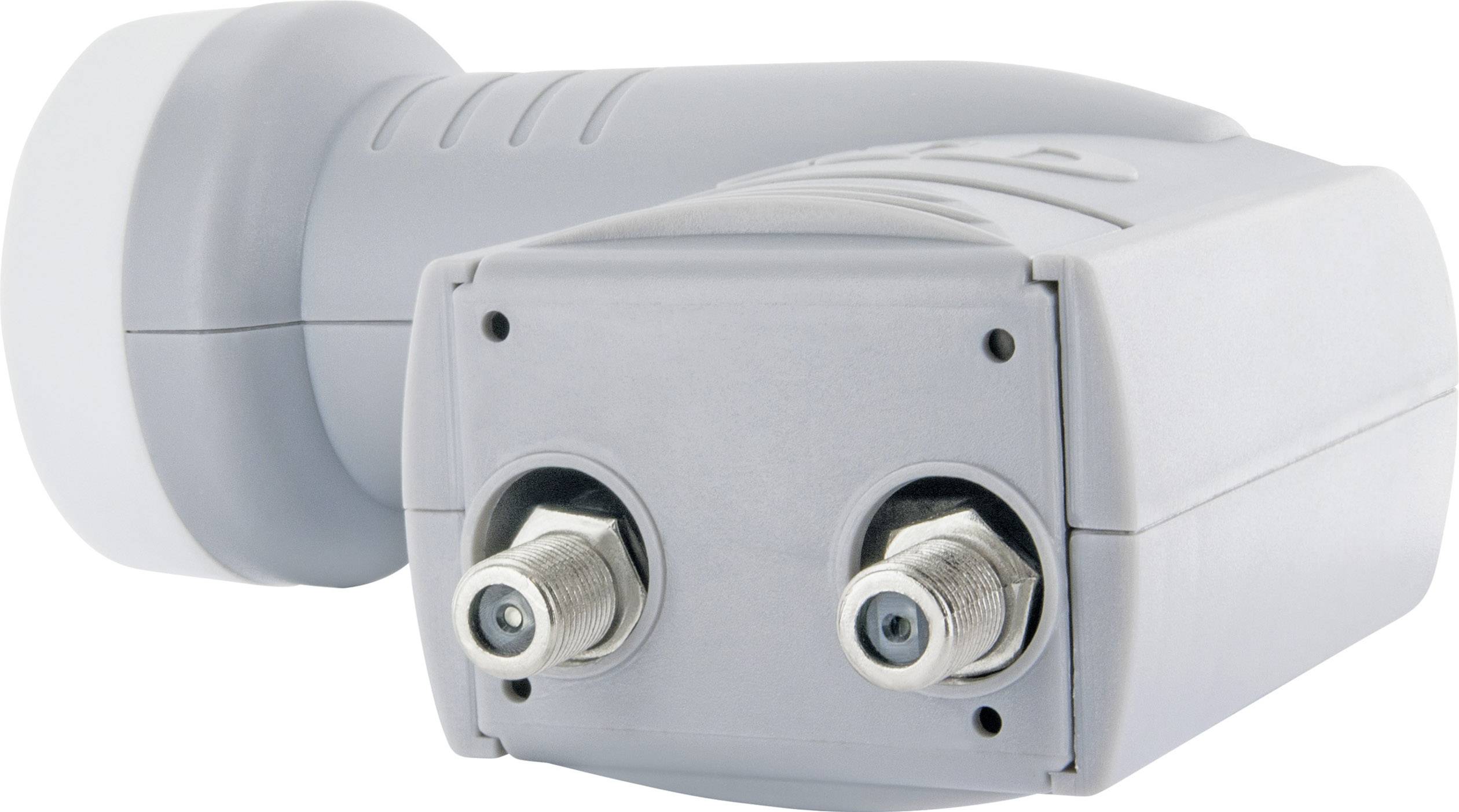

A grey twin LNB with two coaxial connections. Used for receiving satellite signals for two different devices.
1/7
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
4 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 40.99 / piece)
€ 40.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 4 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Schwaiger SAT-outdoor unit 60 cm 2 TN

  • Up to 2 subscribers
  • 60 cm SAT-reflectors light-grey
  • Twin LNB

Technical specifications

  • Reflector (width x height): 550 x 620 mm
  • Input frequency: 10.70 - 17.60 GHz (low)/17.60 - 12.75 GHz (high)
  • Output frequency: 950 - 2150 MHz
  • Oscillation Frequency: 9.75 GHz (low) / 10.6 GHz (high)
  • Control function: 0 kHz (low)/22 kHz (high)
  • Polarisation: Uncoupling> 25 dB
  • Antenna gain (max): 35.2 dB
  • Setting range: 15 - 50° elevation
Participants

2

Product type

SAT system w/o receiver

Twin LNB

Pole clamp

32 - 76 mm

Factory colour

Light grey

Connector

F socket

F socket

Colour (SAT dish)

White

LNB feed size

40 mm

Width

55 cm

Height

62 cm

Satellites

1

Package content

LNB

SAT dish

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 942297 Schwaiger SPI5500SET2 SAT system w/o receiver No. of participants: 2

Warranty Terms

Warranty Terms 942297 Schwaiger SPI5500SET2 SAT system w/o receiver No. of participants: 2

Description

Replace your old dish by this high quality model fitted with a high-performance LNB. Durability and robust high quality for the reception of the many available satellite services.

Features

  • Materials:
  • Mirror: galvanised steel
  • Mirror holder: galvanised steel/plastic
  • Feed arm: Aluminium
  • Feed holder: plastic

Scope of delivery

  • SAT-reflector
  • Twin LNB
