Siemens 3RH2440-1BM40 Auxiliary contactor 4 makers Piece 1 pc(s)

Two black Siemens Sirius electrical contactors, mounted side by side, with visible connection points at the top and bottom.
'Opened electrical cabinet with multiple rows of electrical components and wiring, central for control and distribution.'
'Circuit diagram for auxiliary contactor and accessories. Shows plug connections, adapters, base module and LED indicators. For enhanced functionality.'

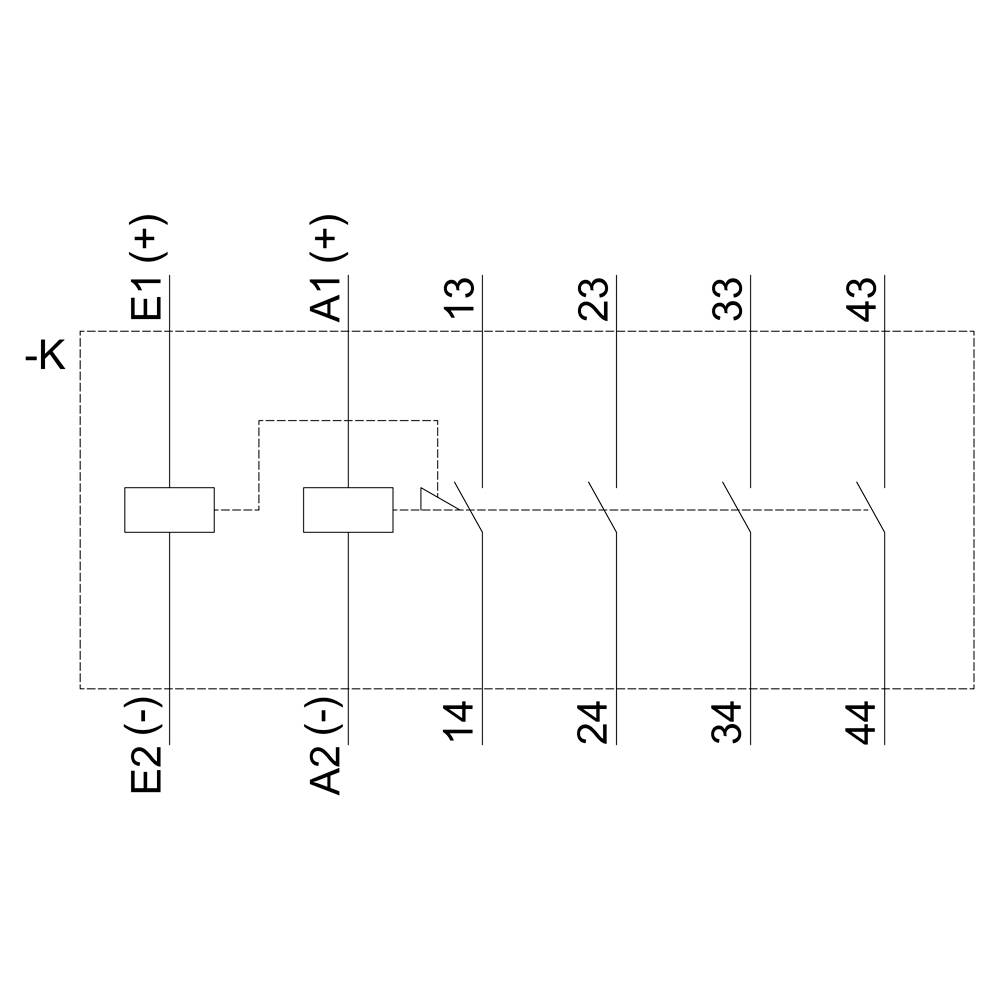

Circuit diagram of a relay with terminals E1, E2, A1, A2 on the left side and numbered contact pairs 13-14, 23-24, 33-34, 43-44 on the right side.

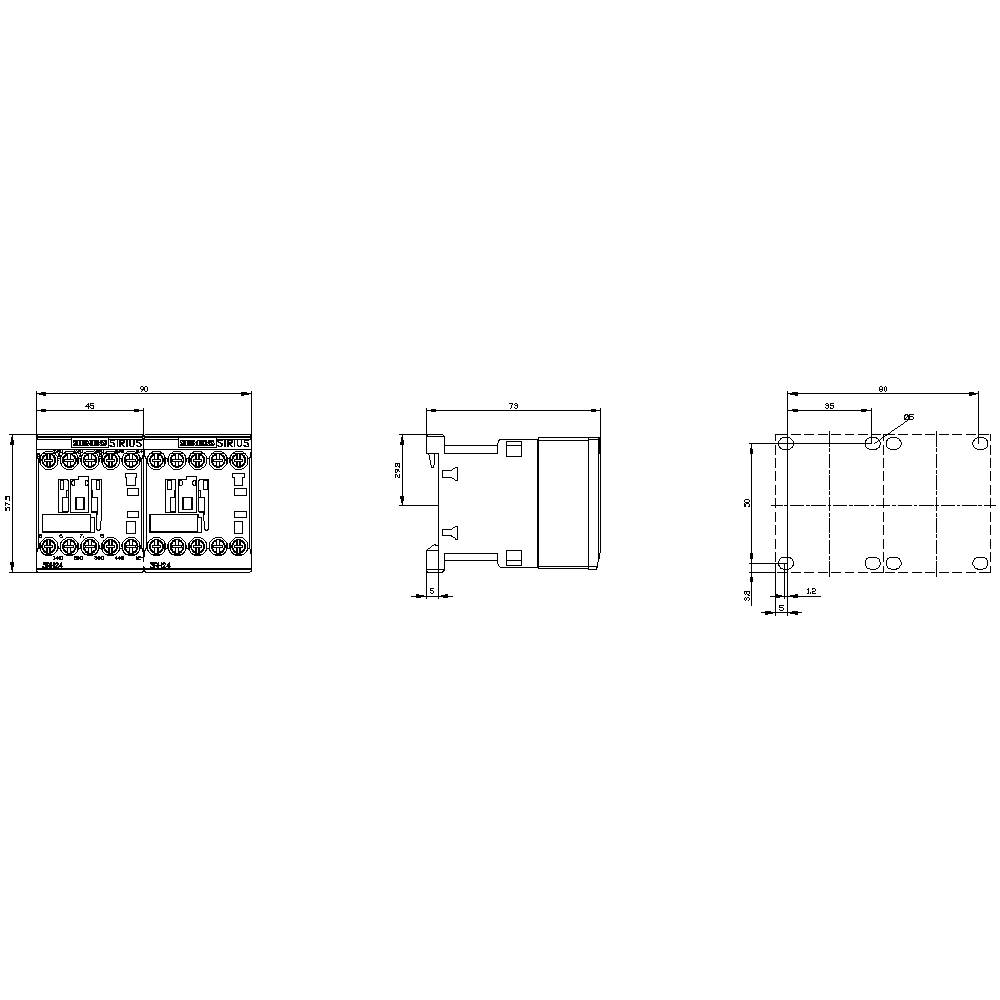

Technical drawing of an electrical device with dimensions in millimetres. Shows five views: front, top, side, back plate and detailed view.

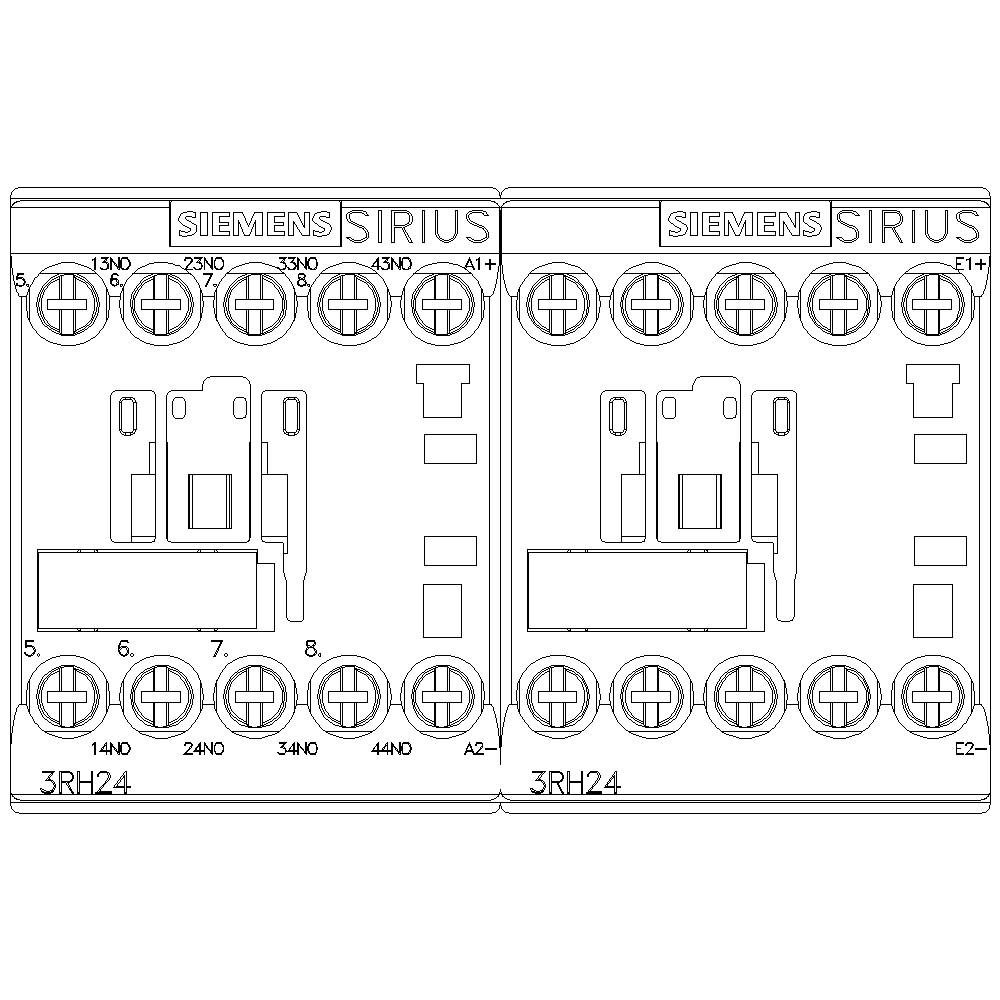

Two Siemens SIRIUS 3RH24 relays in a schematic representation, showing connection terminals and internal configuration.
1/6
Image similar
Product type
Auxiliary contactor
No. of pins
4-pin
Packaging type
Piece
Type
3RH2440-1BM40
Type
S00
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Fri 20 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 134.99 / piece)
€ 134.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

AUX. SWITCH BLOCK, 2NO+2NC

Our service for you

Technical specifications

  • Type of voltage: DC
Packaging type

Piece

Product type

Auxiliary contactor

Type

3RH2440-1BM40

Type

S00

No. of pins

4-pin

Contact type

4 makers

Auxiliary contact type

4 makers

Control voltage (max.)

220 V DC

Control voltage range

220 V DC (max)

Mounting type

Snap-in

Screw-fit

Durability

5000000

IP20

Min. temperature

-25 °C

Max. temperature

+60 °C

Width

90 mm

Height

57.5 mm

Depth

73 mm

Dim

(W x H x D) 90 x 57.5 x 73 mm

Content

1 pc(s)

RoHS-compliant

Yes

4

3 A

Screw connection

DC

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 1699067 Siemens 3RH2440-1BM40 Auxiliary contactor 4 makers Piece 1 pc(s)

Datasheet 1699067 Siemens 3RH2440-1BM40 Auxiliary contactor 4 makers Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1699067 Siemens 3RH2440-1BM40 Auxiliary contactor 4 makers Piece 1 pc(s)

Description

Auxiliary switch on the front, 2 NO + 2 NC Current path 1 NO, 1 NC, 1 NC, 1 NO for 3RH and 3RT screw terminal 53/54, 61/62, 71/72, 83/84
