Name: Siemens 3RT2037-3NB34-3MA0 Contactor 3 makers 30 kW 690 V AC Compatible with (relay brand): Siemens 1 pc(s)
Brand: Siemens
SKU: 1745615
Availability: BackOrder

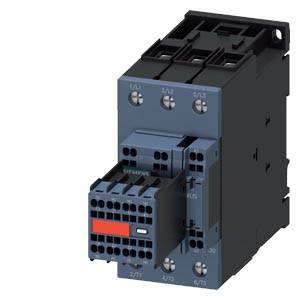

An electrical multi-socket protection switch with several slots and connections. Primary component for device control and protection.

An electrical control cabinet on the left, opened to reveal cables and circuits. To the right, a rain-soaked window with blurred industrial facilities in the background.

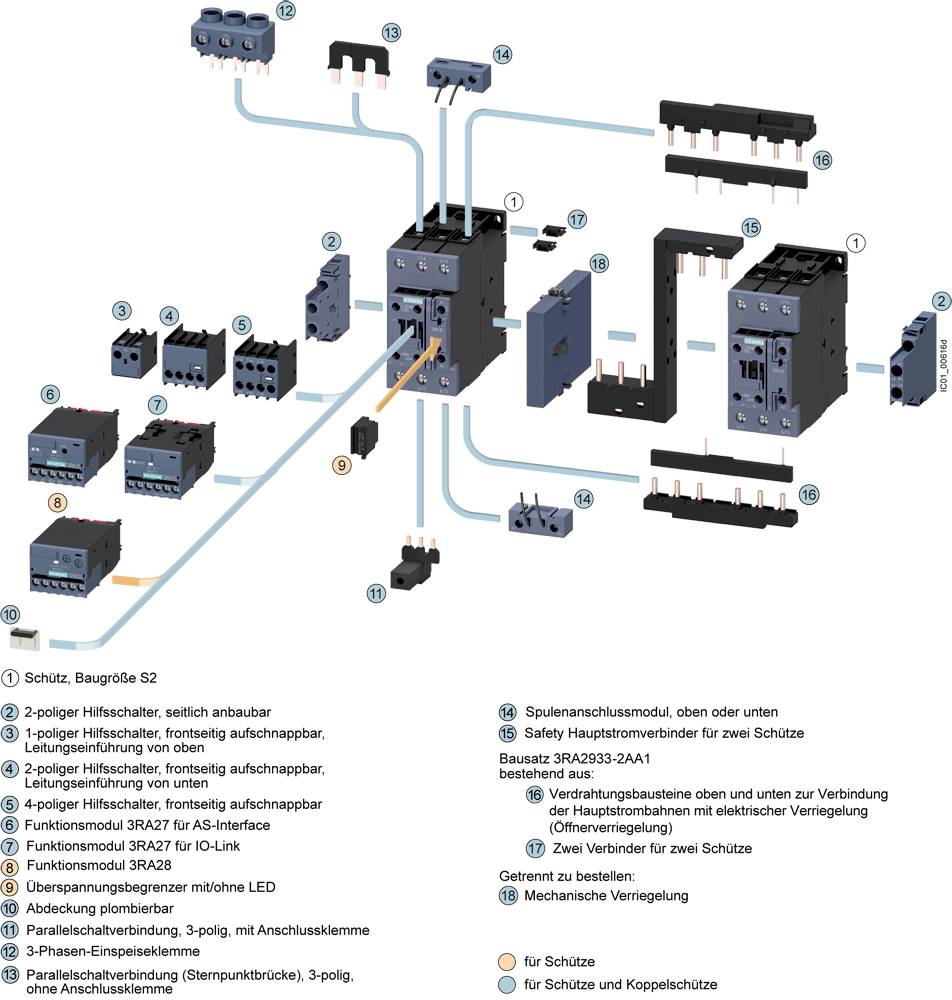

'Schütz, Size S2' shows a wiring diagram for a contactor with main current circuits, auxiliary contacts, and accessories.

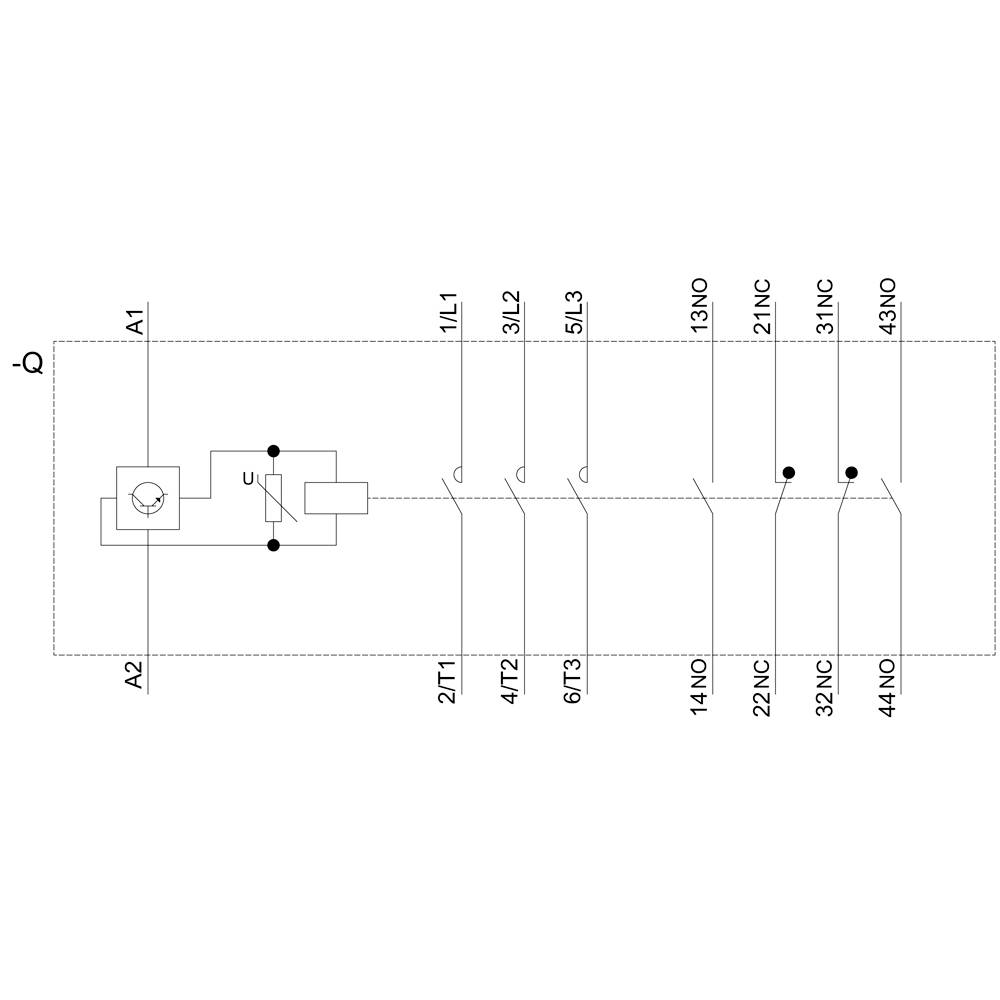

'Schematic circuit diagram of an electric motor with various contact points, numbered from 1L1 to 44NO and 43NO.'

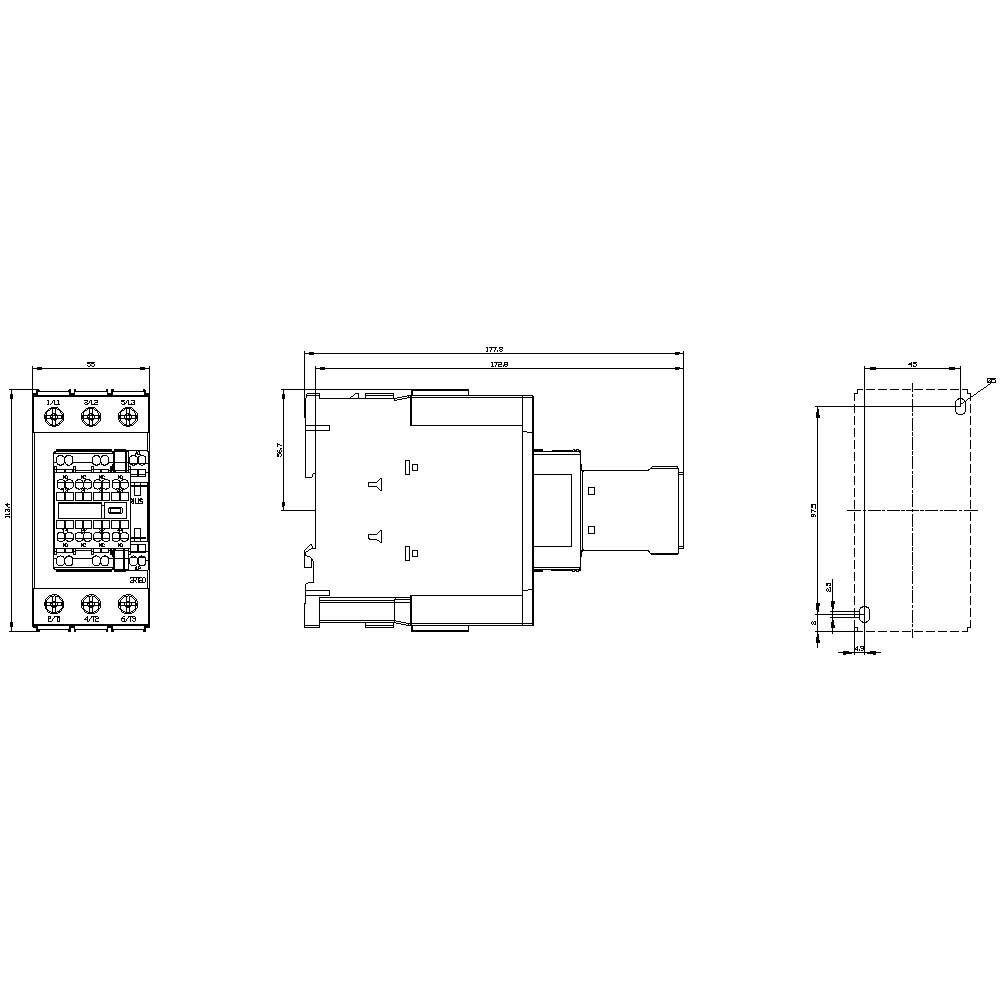

'Technical drawing of an electronic component with three views: front view, top view and side view, including dimensional specifications.'

1/5

Image similar

Product type

Contactor

No. of pins

3-pin

Nominal voltage

690 V AC

Power

30 kW

Connection

Screws

Datasheet (PDF)

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 429.00 / piece)

€ 429.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage, AC/DC
Conductor cross-section single or multi-strand: 50 mm²
Conductor cross-section for finely-stranded: 35mm²

Product type: Contactor

Type: 3RT2037-3NB34-3MA0

Type: S2

No. of pins: 3-pin

Contact type: 3 makers

Nominal voltage: 690 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 65 A

: 30 kW

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 55 mm

Height: 114 mm

Depth: 178 mm

Dim: (W x H x D) 55 x 114 x 178 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 30 kW

: 3

: 2

: 2

: 65 A

: 80 A

: Screw connection

: AC/DC

: 55 A

: 36.7749375

UKCA: yes
