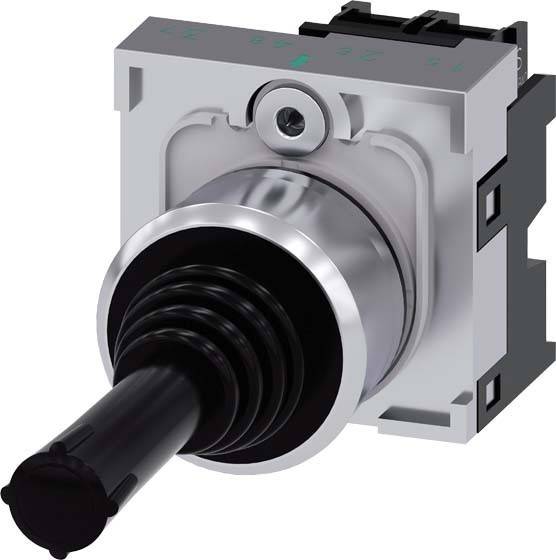

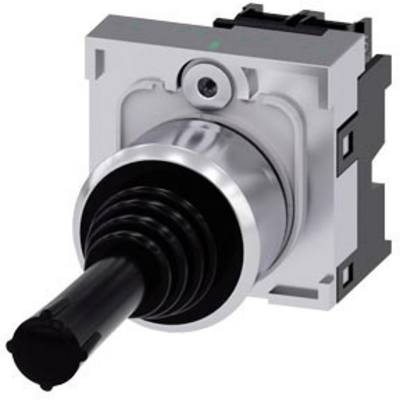

Siemens 3SU1150-7AD88-1NA0 Coordinate switch 500 V IP65, IP67 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 81.34 / piece)
€
Technical specifications
- Actuator material: plastic
- Maximum Auslenkwinkel: 30°
- Switching frequency / maximum [1/h]: 3600
- Functions
momentary
- Type
Without mechanical locking
- Factory colour
Black
- Switch position
2
- Switching voltage
500 V
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Width
40 mm
- Height
40 mm
- Recess diameter
22.3 mm
- Durability
500000
- Electrical lifespan
1000 0000
IP65
IP67
- Content
1 pc(s)

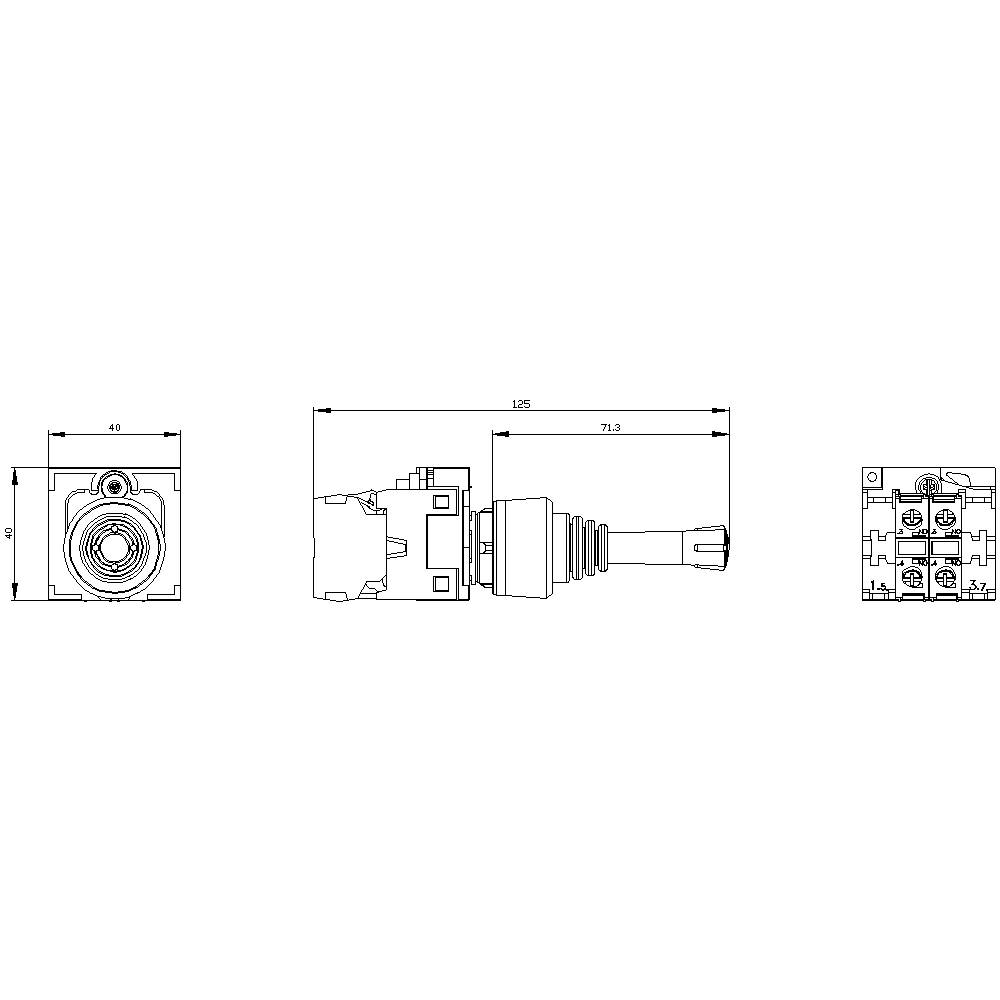

- Dim
(W x H) 40 mm x 40 mm
- RoHS-compliant
Yes
- Type
3SU1150-7AD88-1NA0
- Weight
0.1650 kg
2
2
22.3 mm
2
2
TRUE
Other
FALSE
IP65/IP67
0
FALSE
Other
TRUE
FALSE
71.3 mm
0
Other
- Product type
Coordinate switch
Documents & Downloads
Datasheet
Datasheet 1706108 Siemens 3SU1150-7AD88-1NA0 Coordinate switch 500 V IP65, IP67 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1706108 Siemens 3SU1150-7AD88-1NA0 Coordinate switch 500 V IP65, IP67 1 pc(s)
Information
Information 1706108 Siemens 3SU1150-7AD88-1NA0 Coordinate switch 500 V IP65, IP67 1 pc(s)
Description
RONIS key-operated switch, 22 mm, round, plastic with metal front ring, lock number SB30, with 2 keys, 3 switch positions I-O-II, latching, actuating angle 2x45°, 10:30h/12h/13:30h, Key removal II, possible special locks: SB31, 421, 455
