Name: Siemens 5SY41027 5SY4102-7 Circuit breaker 2 A
Brand: Siemens
SKU: 2262616
Availability: InStock

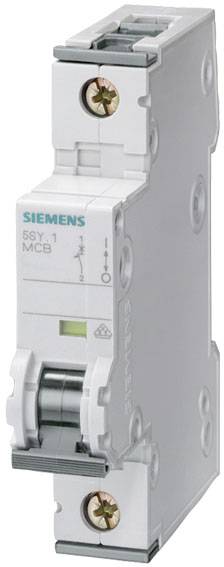

A white Siemens circuit breaker with a green indicator and screw terminals, suitable for use in electrical switchboards.

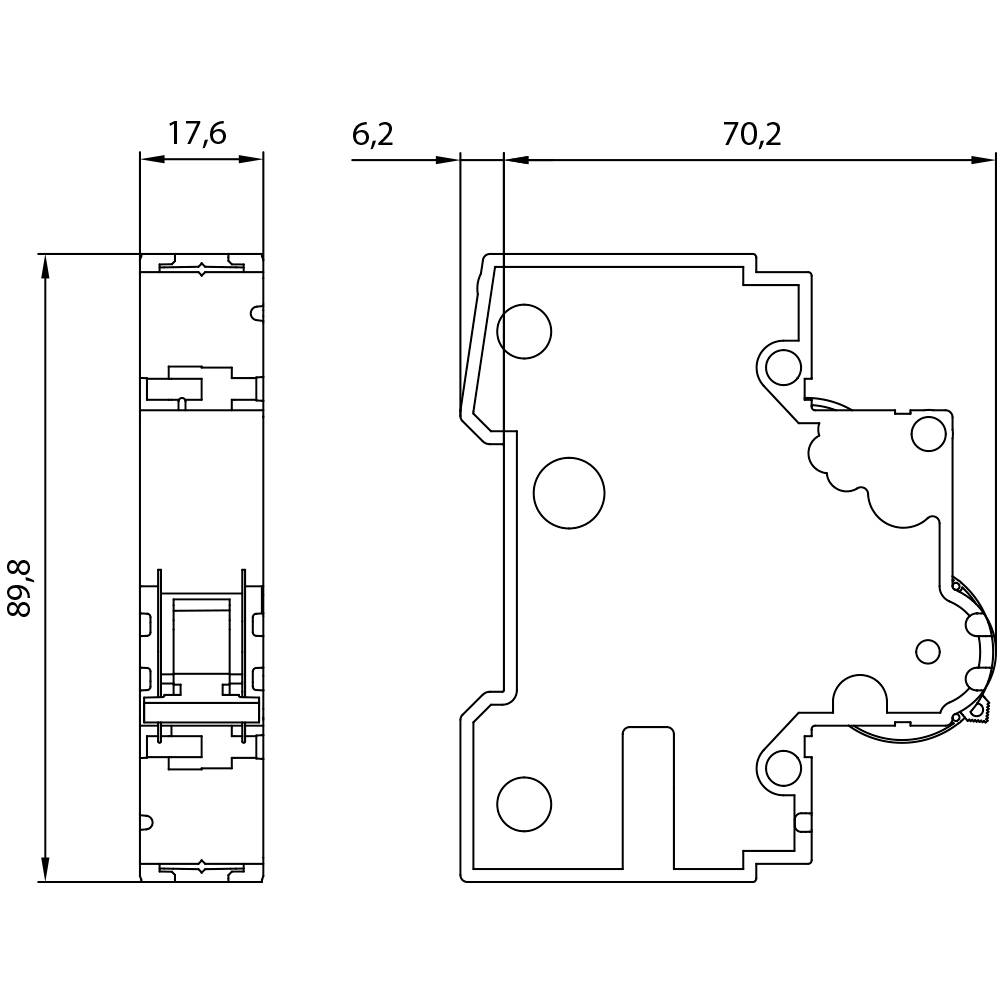

Technical drawing of a rectangular component with rounded corners. Dimensions: 89.8 mm x 70.2 mm. Side view shows height: 17.6 mm, width: 6.2 mm.

1/2

Image similar

Product type

Circuit breaker

Number of pins

Release characteristics

Nominal current - rounded value

2 A

Nominal voltage (details)

230/400 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 10 Nov

67 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (€ 1.08 / piece)

€ 12.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Number of wide division units: 1
Number of test cycles / for environmental testing: 6
Tightening torque / for screw connection / minimum: 2.5 Nm
Tightening torque / for screw terminals / maximum: 3.5 Nm
Design of the basic type: 5SY4
Fastening method: Quick mounting system
Suitability for use: Mechanical engineering / industry
All mounting positions permitted
Mounting depth: 70 mm
Insulation voltage / at 440 V AC
Insulation voltage / during single-phase operation / at 440 V AC
Insulation voltage / for multi-phase operation / at AC 440 V.
Mechanical life (operations) / typical 10000
Number of poles / Note: 1P
Position / of the mains connection cable: Any
Product features / touch protection: Yes
Product component / combination clamp top: Yes
Product component / combination clamp below: Yes
Product property / properties for main switch according to EN 60204-1: Yes
Product property / halogen-free: Yes
Product property / sealable: Yes
Product property / silicone-free: Yes
Product extension / installable / Additional equipment: Yes
Switching capacity (ICU+) 35 kA
Switching capacity current / according to EN 60898: 10 kA
Switching capacity current / according to IEC 60947-2: 35 kA
Switching capacity current / at DC / according to IEC 60947-2: 15 kA
Protection class IP: IP20, with connected conductors
Ambient temperature / during operation / minimum -40 °C.
Ambient temperature / during operation / maximum +70 °C.
Power loss / at rated current / at AC / at warm operating state / per pole: 1.2 W.
Power loss / maximum 1.2 W.
Pollution level 3
Supply voltage frequency 50 Hz
Supply voltage frequency / note: 50/60 Hz
Over voltage category III
Operating voltage / minimum 24 V
AWG number / as coded connectable conductor cross-section / minimum: 18
AWG number / as coded connectable conductor cross-section / maximum: 4
Connectable conductor cross-section / single-wire: 0.75 mm² - 35 mm²
Connectable conductor cross-section / fine-wired / with wire-end processing: 0.75 mm² - 25 mm²
Connectable conductor cross-section / multi-wired: 0.75 mm² - 35 mm²

Nominal voltage (details): 230/400 V AC

Product type: Circuit breaker

Number of pins: 1

Operating class: 3

Release characteristics: C

RoHS-compliant: Yes

Nominal current - rounded value: 2 A

Nominal current: 2 A

Factory colour: Multicolour

Dim: (W x H x D) 18 x 90 x 76 mm

Content: 1 pc(s)

Switch-off capacity: 5 kA

Operating voltage: 440 V AC

Width: 18 mm

Height: 90 mm

Depth: 76 mm

Weight: 0

: AC

: 70 mm

: 2 A

: 400 V

: 50-60 MHz

: C

: 440 V

: 3

: 3

: 3

: 1

: FALSE

: IP20

: 1

: FALSE

: 0.75-35 mm²

: 0.75-35 mm²

: -40-70 °C

: FALSE

: TRUE

: 1

: 10 kA

: 10 kA

: 35 kA

: 35 kA

: 4

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2262616 Siemens 5SY41027 5SY4102-7 Circuit breaker 2 A

User & Safety Instructions

User & Safety Instructions 2262616 Siemens 5SY41027 5SY4102-7 Circuit breaker 2 A

Description

Circuit breaker 230/400V 10kA, 1-pole, C, 2A, T=70mm The circuit breaker is the circuit breaker for short-circuit protection. The circuit breakers from Siemens, an important component of SENTRON protection components for electrical installations, provide effective protection for people and systems by safely switching off in case of overload and short circuit. Convenient mounting and connection technology, uniform additional components and a uniform design - these are the characteristics of the device family. Whether for infrastructure or for industrial requirements, Siemens offers circuit breakers for all applications and every application area. The Siemens circuit breakers are distinguished above all by: 1. Effective protection for people, investments and systems from overload and short circuit. 2. Uniform accessories in a wide variety are easy to mount and can be replaced at any time. 3. Reliable installation safety thanks to the standard grip and protection against accidental contact. 4. Tool-free release from the DIN rail or from the bus rail system using convenient slide-hand actuation. 5. Clearly visible switching position display 6. Datamatrix-Code at the front of the device offers all information about circuit breakers quickly and easily. 7. Standard-compliant protection with worldwide approvals. For the secure, efficient electrical infrastructure in buildings and industry, Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets.
