Name: Siemens 6GT23981CF00 Antenna
Brand: Siemens
SKU: 1734985
Availability: InStock

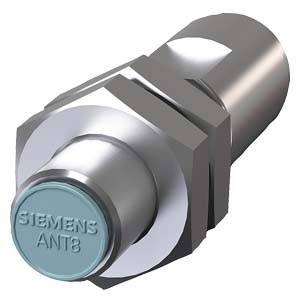

Cylindrical metal sensor with a grey inscription 'SIEMENS ANT8' on the front face.

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

102 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 219.99 / piece)

€ 219.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Diameter: 8 mm
Connector type: Female
Fastening method: 2 stainless steel nuts M8 x 1.0 (included)
Suitable for outdoor use: Yes
Suitable for indoor use: Yes
Colour: Silver.
Cable length of the antenna cable, fixed value: 3 m.
Connection cable: No.
Protection class: IP67, front side
Ambient temperature during operation, min.: -25 °C.
Ambient temperature during operation, max. +70 °C
Transmission frequency: 13.56 MHz
Operating frequency 13.56 MHz

Product type: Antenna

Type: 6GT2398-1CF00

Manufacturer part #: 6GT23981CF00

Weight: 10 g

Length: 40 mm

: Other

: 38 mm

: Bus

: Other

: TRUE

: FALSE

: TRUE

: Other

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1734985 Siemens 6GT23981CF00 Antenna

User & Safety Instructions

User & Safety Instructions 1734985 Siemens 6GT23981CF00 Antenna

Description

SIMATIC RF200/RF300 Antenna ANT 8 M8x 38 mm, IP67, -25 to +70°C, without connection cable Antenna ANT 8Besonders suitable for difficult installation situations with little space, e.g. for mounting on robots for the identification of tools (tool identification).Very small design in the M8 housing enables very precise positioning. The 3 m antenna connection cable is suitable for tow chains and can be plugged on both sides.

This text is machine translated.
