Name: Siemens 8WH20000AE00 Continuity Spring-loaded connector Grey 50 pc(s) Piece
Brand: Siemens
SKU: 2263875
Availability: InStock

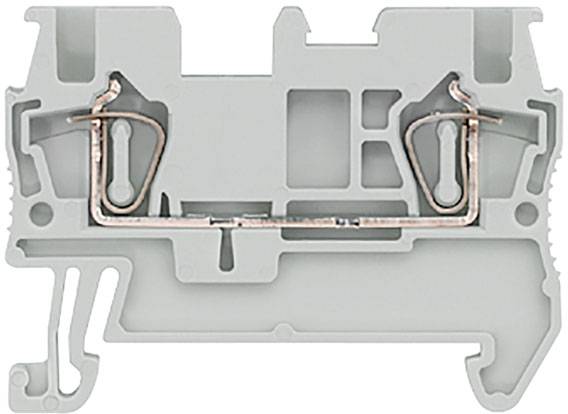

Grey terminal block with integrated metal spring for secure wiring in electrical control cabinets.

Image similar

Packaging type

Piece

Product type

Continuity

Connection

Spring-loaded connector

Cross section (flexible) (max.)

1.5 mm²

Cross section (inflexible) (max.)

1.5 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

1 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 0.98 / piece)

€ 48.99

incl. VAT

Only 1 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Feed-through terminal with tension spring connection, cross-section 0.14-1.5mm2, width 4.2.

Our service for you

Technical specifications

Connectable conductor cross-section / fine wire / with wire-end processing / maximum: 1.5 mm²
connectable conductor cross-section / fine wire / with wire-end processing / minimum: 1.5 mm²
connectable conductor cross-section / multi-wire / maximum: 1.5 mm²
connectable conductor cross-section / multi-wire / minimum: 1.5 mm²
Number of terminal points / per terminal level: 2
type of mounting: DIN rail 35 mm
flammability class according to UL 94: V0
Terminal spacing: 4.2 mm
position / of the connection terminal: Top
Product component / required / end plate: no
Ambient temperature / during operation / maximum: 55 °C
ambient temperature / during operation / minimum: -25 °C.

Packaging type: Piece

Product type: Continuity

Features: Scoop-proof

Connection: Spring-loaded connector

Cross section (flexible) (min.): 1.5 mm²

Cross section (flexible) (max.): 1.5 mm²

Cross section (inflexible) (min.): 1.5 mm²

Cross section (inflexible) (max.): 1.5 mm²

No. of rows: 1

Factory colour: Grey

Nominal current: 17.5 A

Nominal current - rounded value: 17.5 A

Nominal voltage: 500 V

Stripping length (max.): 10 mm

Manufacturer part #: 8WH20000AE00

Content: 50 pc(s)

Type: 8WH2000-0AE00

RoHS-compliant: Yes

Weight: 5 g

Flammability rating: V0

Connector colour: Grey

: DIN rail (top hat rail) 35 mm

: Grey

: 48.63 mm

: 35.3 mm

: 500 V

: V0

: 4.2 mm

: FALSE

: Spring clamp connection

: Spring clamp connection

: 1

: 2

: FALSE

: Other

: 17.5 A

: FALSE

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Connection

Content

Cross section (flexible) (max.)

Cross section (flexible) (min.)

Cross section (inflexible) (max.)

Cross section (inflexible) (min.)

Factory colour

Nominal current - rounded value

Siemens 8WH10000AF00 Continuity 5.2 mm Screws Beige 50 pc(s) Piece

Item no:2263832

Fast track dispatch on Thu 29 Oct

1 Set(s)Conrad Electronic

Screws

50 pc(s)

2.5 mm²

0.14 mm²

4 mm²

0.14 mm²

Beige

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 61.99^*

Siemens 8WH10000AG00 Continuity 6.2 mm Screws Beige 50 pc(s) Piece

Item no:2263837

Fast track dispatch on Thu 29 Oct

1 Set(s)Conrad Electronic

Screws

50 pc(s)

4 mm²

0.14 mm²

4 mm²

0.14 mm²

Beige

30 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 67.99^*

Siemens 8WH10000AH00 Continuity 8.2 mm Screws Beige 50 pc(s) Piece

Item no:2263839

Dispatches on Fri 6 Nov

Conrad Electronic

Screws

50 pc(s)

6 mm²

0.2 mm²

10 mm²

0.2 mm²

Beige

41 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

Siemens 8WH10000AH01 Continuity 8.2 mm Screws Configuration: Single Beige 50 pc(s) Piece

Item no:2263840

Fast track dispatch on Thu 29 Oct

1 Set(s)Conrad Electronic

Screws

50 pc(s)

6 mm²

0.2 mm²

10 mm²

0.2 mm²

Beige

41 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Siemens 8WH10000AJ00 Continuity Screws Beige 50 pc(s)

Item no:2263843

Fast track dispatch on Thu 29 Oct

1 Set(s)Conrad Electronic

Screws

50 pc(s)

10 mm²

0.5 mm²

16 mm²

0.5 mm²

Beige

57 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 8WH10000AK00 Continuity 12 mm Screws Beige 50 pc(s)

Item no:2263845

Fast track dispatch on Thu 29 Oct

1 Set(s)Conrad Electronic

Screws

50 pc(s)

16 mm²

1.5 mm²

25 mm²

1.5 mm²

Beige

76 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Siemens 8WH10000AK01 Continuity 12 mm Screws Blue 50 pc(s) Piece

Item no:2263846

Fast track dispatch on Thu 29 Oct

1 Set(s)Conrad Electronic

Screws

50 pc(s)

16 mm²

1.5 mm²

25 mm²

1.5 mm²

Blue

76 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Siemens 8WH10000AM00 Continuity Screws Beige 50 pc(s) Piece

Item no:2263847

Fast track dispatch on Thu 29 Oct

1 Set(s)Conrad Electronic

Screws

50 pc(s)

35 mm²

1.5 mm²

50 mm²

1.5 mm²

Beige

125 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 305.00^*

Siemens 8WA10111BF25 Continuity Screws Green 1 pc(s)

Item no:2263809

Unavailable

Conrad Electronic

Screws

1 pc(s)

2.5 mm²

Green

24 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Siemens 8WA10111BG21 Continuity Screws Red 50 pc(s)

Item no:2263812

Unavailable

Conrad Electronic

Screws

50 pc(s)

4 mm²

Red

32 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2263875 Siemens 8WH20000AE00 Continuity Spring-loaded connector Grey 50 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2263875 Siemens 8WH20000AE00 Continuity Spring-loaded connector Grey 50 pc(s) Piece

Description

Through-type terminal with tension spring connection, cross-section: 0.14-1.5mm2, width: 4.2mm, color: Gray terminal block connection system for various industrial applications and modern building installation by Siemens. No matter whether you choose the screw, tension spring, push-in or quick connection: All connection methods can be combined freely with one another. The labeling and testing accessories are standardized and can be used across the board. Siemens terminal blocks can be used to implement many applications in industrial, industrial and residential buildings. Thus, you have the suitable connection technology for each connection. The Siemens terminal blocks are characterized above all by: 1. Permanently secure contact. 2. Easily detachable connection of electrical connections such as cables and wires. 3. Implementation of a variety of applications. 4. Convenient and easy installation and connection technology. 5. Extensive and standardized accessories. 6. Reliable safety during installation thanks to standard touch protection. 7. Optimum technology for your safety - only from Siemens.
