Name: Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-0HB0 Overload
Brand: Siemens
SKU: 1430991
Availability: BackOrder

An open electrical control cabinet displays multiple rows of electrical devices, cables, and switches used for controlling industrial processes.

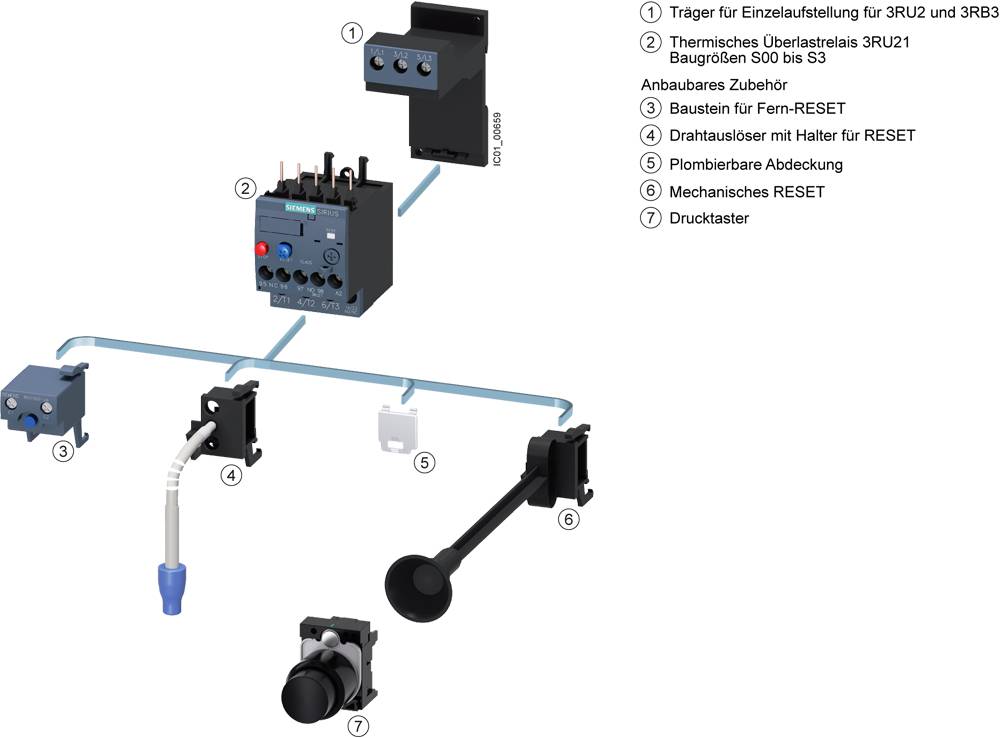

Diagram of a circuit diagram with components such as thermal overload relays, remote reset modules, and push buttons.

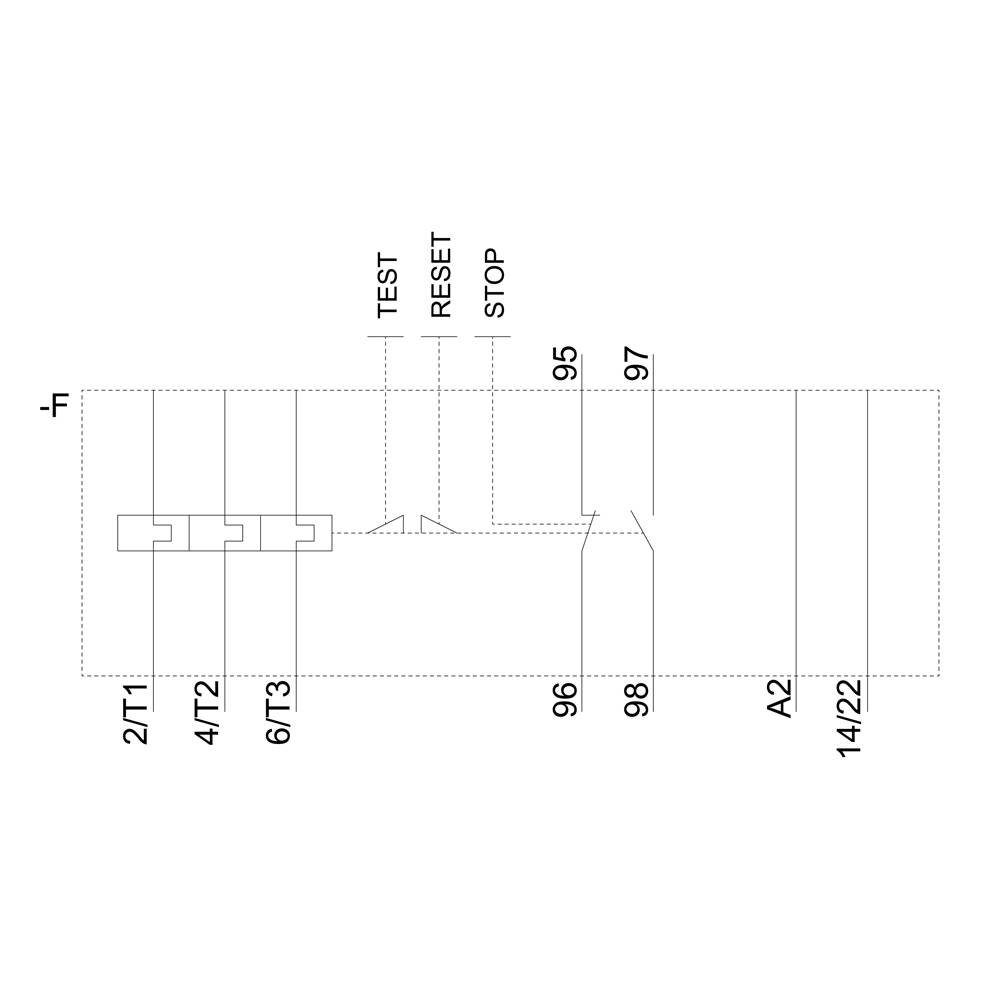

Circuit diagram with buttons 'TEST', 'RESET', 'STOP'; numbered components: 2/T1, 4/T2, 6/T3, 95, 96, 97, A2, 14/22.

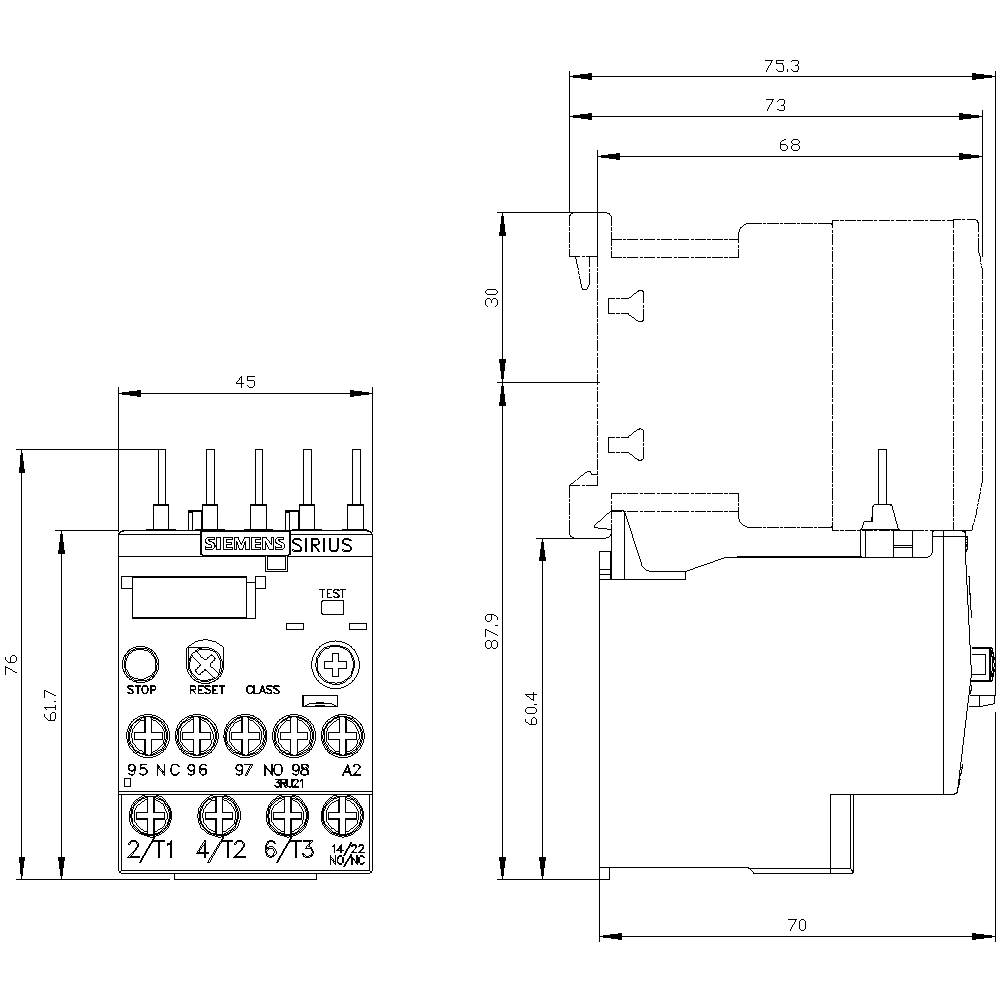

Technical drawing of an electrical relay with dimensions in millimetres. Shows front and side view with detailed connection labels.

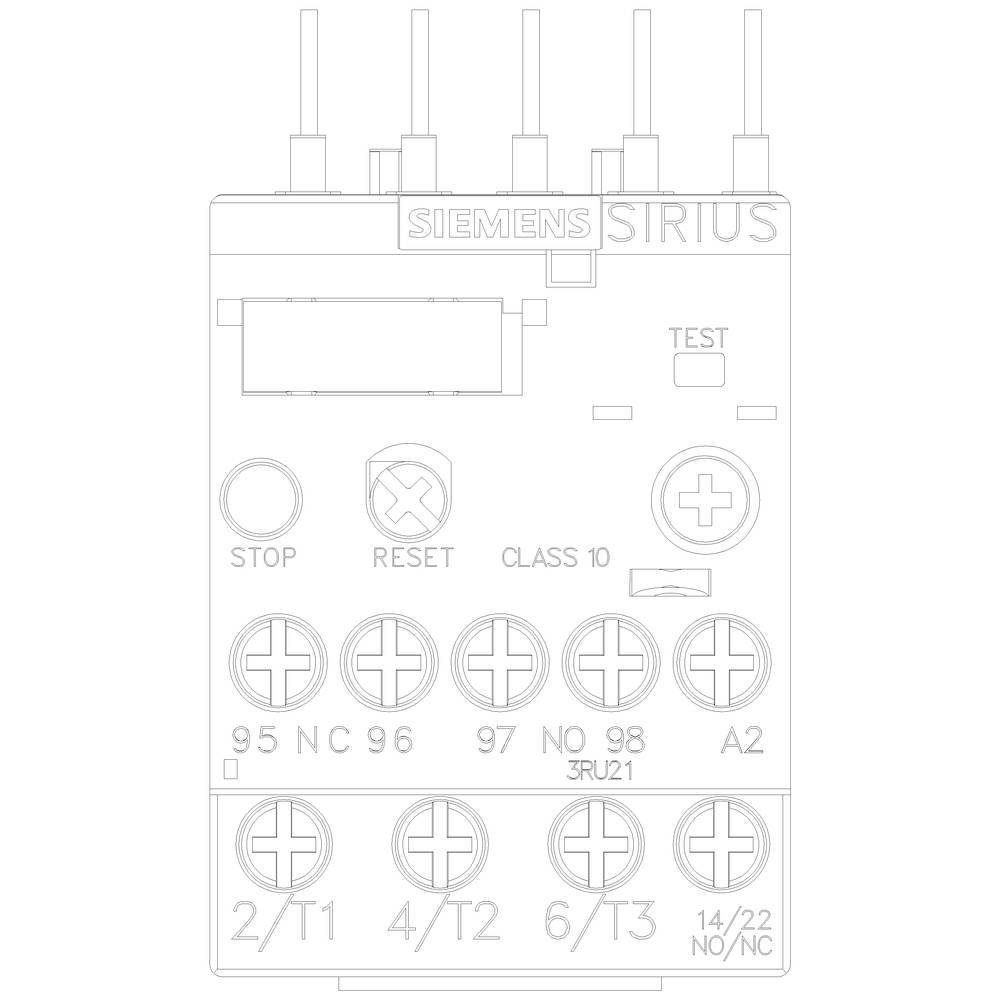

Siemens contactor drawing with connections and buttons for controlling electrical circuits. Includes stop, reset button, test and class button.

1/5

Application

Product type

O/L relay

Functions

Overload

Max. operating voltage

690 V AC

Contact type

1 maker

1 breaker

Switching voltage (max.)

690 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 18 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Size of the overload relay: S00
Mounting type: installing contactor
Power loss: 4.5 W
Operating frequency: 50/60 Hz
Isolation voltage: 690 V
Surge voltage resistance: 6000 V
Pins for main circuit: 3
Operating current: 0.8 A

Product type: O/L relay

Type: 3RU2116-0HB0

Functions: Overload

Operating voltage: 690 V AC

Max. operating voltage: 690 V AC

Operating voltage: 690 V AC (max)

Features: + test button

Contact type: 1 maker
1 breaker

Switching voltage (max.): 690 V AC

Connection: Screws

Min. temperature: -40 °C

Max. temperature: +70 °C

: IP20

Width: 45 mm

Height: 76 mm

Depth: 70 mm

Dim: (W x H x D) 45 x 76 x 70 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Type: S00

Amperage adjustment range (max.): 0.80 A

Amperage adjustment range (min.): 0.55 A

Weight: 0.1353 kg

: Direct attachment

: 1

: 1

: 0

: CLASS 10

: Screw connection

: 690 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1430991 Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-0HB0 Overload

User & Safety Instructions

User & Safety Instructions 1430991 Siemens O/L relay 690 V AC 1 maker, 1 breaker 1 pc(s) 3RU2116-0HB0 Overload

Description

Overload relay 0.55...0.80 A thermal for motor protection Size S00, CLASS 10 contactor mounting Main circuit: Screw auxiliary circuit: Screw manual automatic RESET SIRIUS 3RU2 thermal overload relay for current-dependant protection of consumers with normal starting against impermissible high heating as a result of overload or phase failure.
This series is particularly flexible and cost-effective. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous applications (ATEX or IEC Ex) are a matter of course.
Available with different adjustment ranges of the overload release. They are available with screw or spring-type terminals for quick, maintenance-free and vibration-proof connection, as well as for stand-alone installation.
The accessories fit all sizes S00 to S3.
Simple, efficient, always up-to-date - the SIRIUS modular system.
