Name: Siemens SSR 3RF21902AA24 90 A Switching voltage (max.): 460 V AC Zero crossing 1 pc(s)
Brand: Siemens
SKU: 1430948
Availability: BackOrder

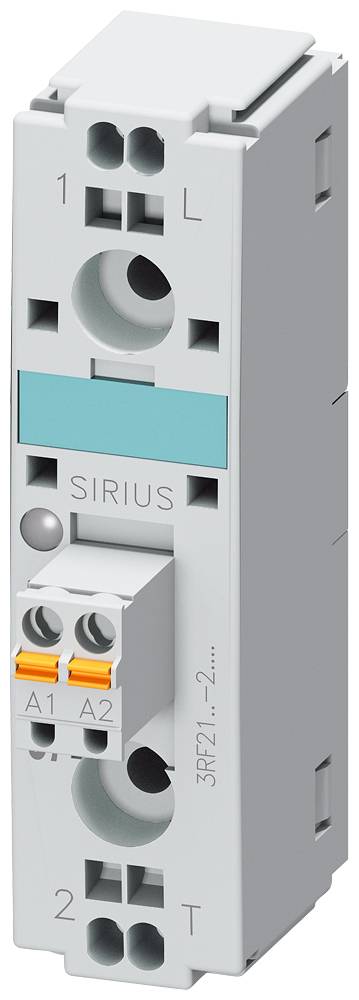

A circuit breaker with the inscription 'SIRIUS', showing connections A1 and A2 as well as L and T for electrical wiring.

Server cabinet with an open glass door revealing internal components such as cables, switches, and electronic parts in an orderly arrangement.

Circuit diagram of a mechanical relay with a diode and resistor connected in parallel between terminals 1L and 2T.

'Circuit diagram of a Siemens SIRIUS device with dimensions: Height 85mm, Width 22.5mm. Side view shows width of 31.5mm.'

1/4

Image similar

Packaging type

Piece

Product type

SSR

Control voltage (min.)

110 V AC

Control voltage (max.)

230 V AC

Switching voltage (max.)

460 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 26 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 99.99 / piece)

€ 99.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: screw fastening
Number of poles: 1
Isolation voltage: 600 V

Packaging type: Piece

Product type: SSR

Type: 3RF2190-2AA24

Switching type: Zero crossing

Connection: Spring-loaded terminal

Control voltage (min.): 110 V AC

Control voltage (max.): 230 V AC

Control voltage range: 110 - 230 V AC

Control current (max.): 15 mA

Surge current (max.): 1150 A

Switching voltage (min.): 48 V AC

Switching voltage (max.): 460 V AC

Current load (max.): 90 A

Output voltage (min.): 48 V

Output voltage (max.): 460 V AC

Max. output current: 90 A

Contact type: 1 maker

Min. temperature: -25 °C

Max. temperature: +60 °C

: IP20

Width: 22.5 mm

Height: 85 mm

Depth: 48 mm

Weight: 60 g

RoHS-compliant: Yes

Permanent current (max.): 90 A

Content: 1 pc(s)

: 1

: TRUE

: 90 A

: AC

: 20 A

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1430948 Siemens SSR 3RF21902AA24 90 A Switching voltage (max.): 460 V AC Zero crossing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1430948 Siemens SSR 3RF21902AA24 90 A Switching voltage (max.): 460 V AC Zero crossing 1 pc(s)

Description

Solid state relays, 1-phase 3RF2 width 22.5 mm, 90 A 48-460 V / 110-230 V AC spring-type terminals SIRIUS 3RF21 solid state relays for switching resistive/inductive loads, e.g. of radiators or valves in a filling plant.
The devices are wear-free and silent and are ideal for noise-sensitive areas (offices, hospitals). They are extremely reliable even at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded by simply clicking on the standardized 3RF29 function modules for a wide range of applications. The devices are approved worldwide (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths or as 3-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-loaded or ring cable lug connection.
In addition to the 3RF29 function modules, control plugs and terminal covers are also available as accessories.
Simple, efficient, always up-to-date - the SIRIUS modular system.

This text is machine translated.
