Buy Signal Construct PGZ25L070 Light pipe Through-hole mounting Bulk

Silver cylindrical metal tube with a gleaming surface, standing vertically.

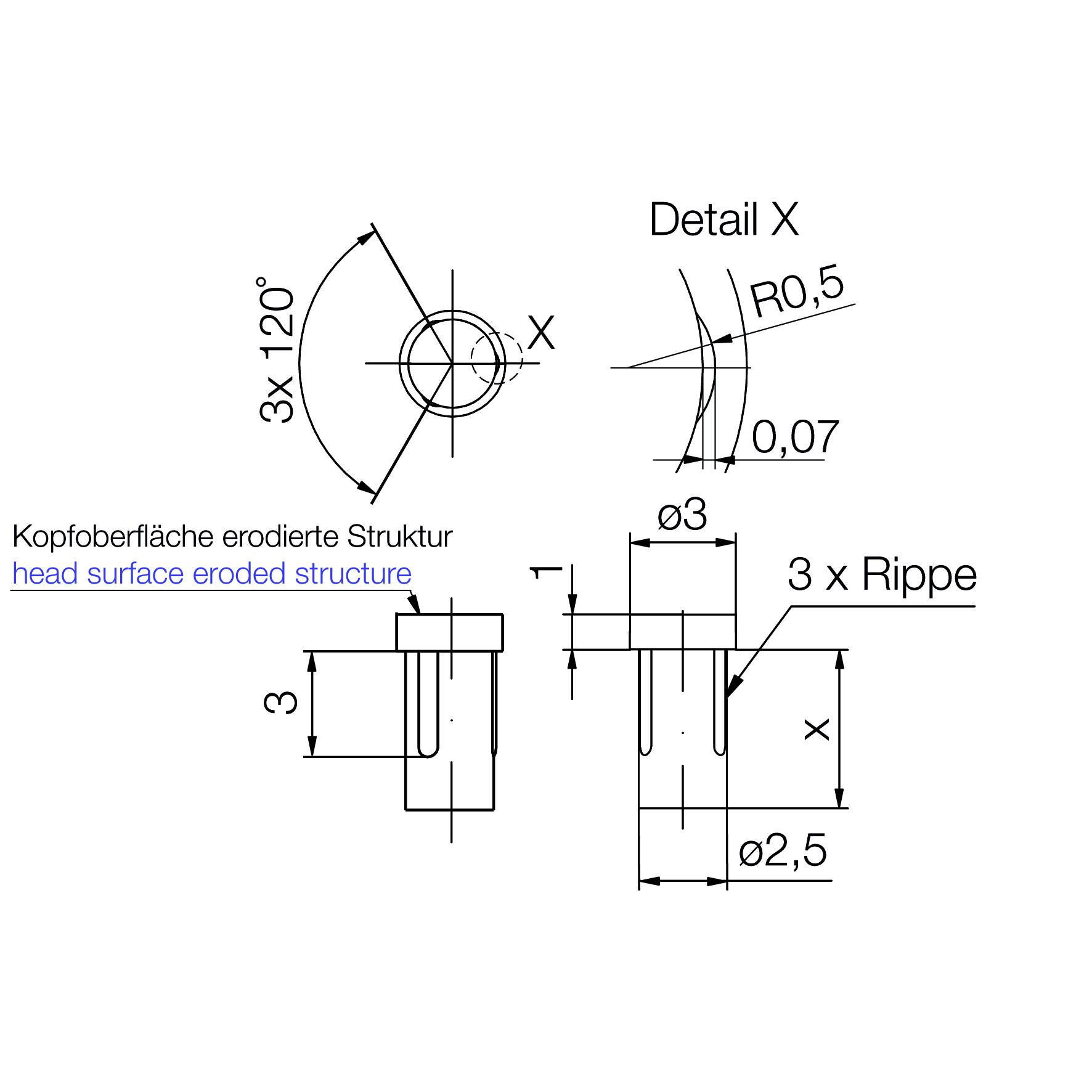

'Detail drawing of a component with triple ribbing and eroded head surface. Dimensions in millimetres, including Detail X.'

1/2

Our service for you

Datasheet (PDF)

Fast track dispatch on Thu, 17 Sep

316 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 15

Total (€ 0.16 / piece)

€ 2.40

plus VAT.

Report legal concerns

Technical specifications

Packaging type: Bulk

Type: PGZ25L070

Mounting type: Through-hole mounting

Manufacturer: Signal Construct

Lens shape: Circular

Factory colour: Acrylic glass (matt)

Operating temperature (min.): -40 °C

Operating temperature (max.): 105 °C

Lens size (Ø): 3 mm

Length: 8 mm

(Ø): 3 mm

Dim: (Ø x L) 3 mm x 8 mm

RoHS-compliant: Yes

Moisture Sensitiviy Level (MSL): 1

Product type: Light pipe

Documents & Downloads

Datasheet

Datasheet 2435532 Signal Construct PGZ25L070 Light pipe Through-hole mounting Bulk

Description

Single fiber optic cable with cylindrical
Light head. Fiber optic head with eroded
Structure. Mounting hole: Ø 2.6 -0.05 mm
Dimension x: Min. 1.8 mm / max. 40.0 mm
Fiber optic material: Plexiglass (PMMA)
