SIKU 27528 In-line extractor 230 V 185 m³/h 12.5 cm
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 31.92
3
4% = € 1.25
€ 30.67
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 31.92 / piece)
€ 31.92
plus VAT.
Highlights & Details
Pipe-rack fan KL 125
- Ball bearing motor
Technical specifications
- Product type
In-line extractor
- Nominal voltage
230 V
- Current consumption
100 mA
16 W
- Air flow rate
185 m³/h
- Rotational speed
2400 U/min
- Suitable for pipe Ø
12.5 cm
- Noise emission (max.)
38 dB
IPX4
- Factory colour
White
- Max. noise generation
38 dBa
- Max. power consumption
16 W
- Output
185 m³/h
- Operating voltage
230 V/50 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 560211 SIKU 27528 In-line extractor 230 V 185 m³/h 12.5 cm
User & Safety Instructions
User & Safety Instructions 560211 SIKU 27528 In-line extractor 230 V 185 m³/h 12.5 cm
Warranty Terms
Warranty Terms 560211 SIKU 27528 In-line extractor 230 V 185 m³/h 12.5 cm
Description

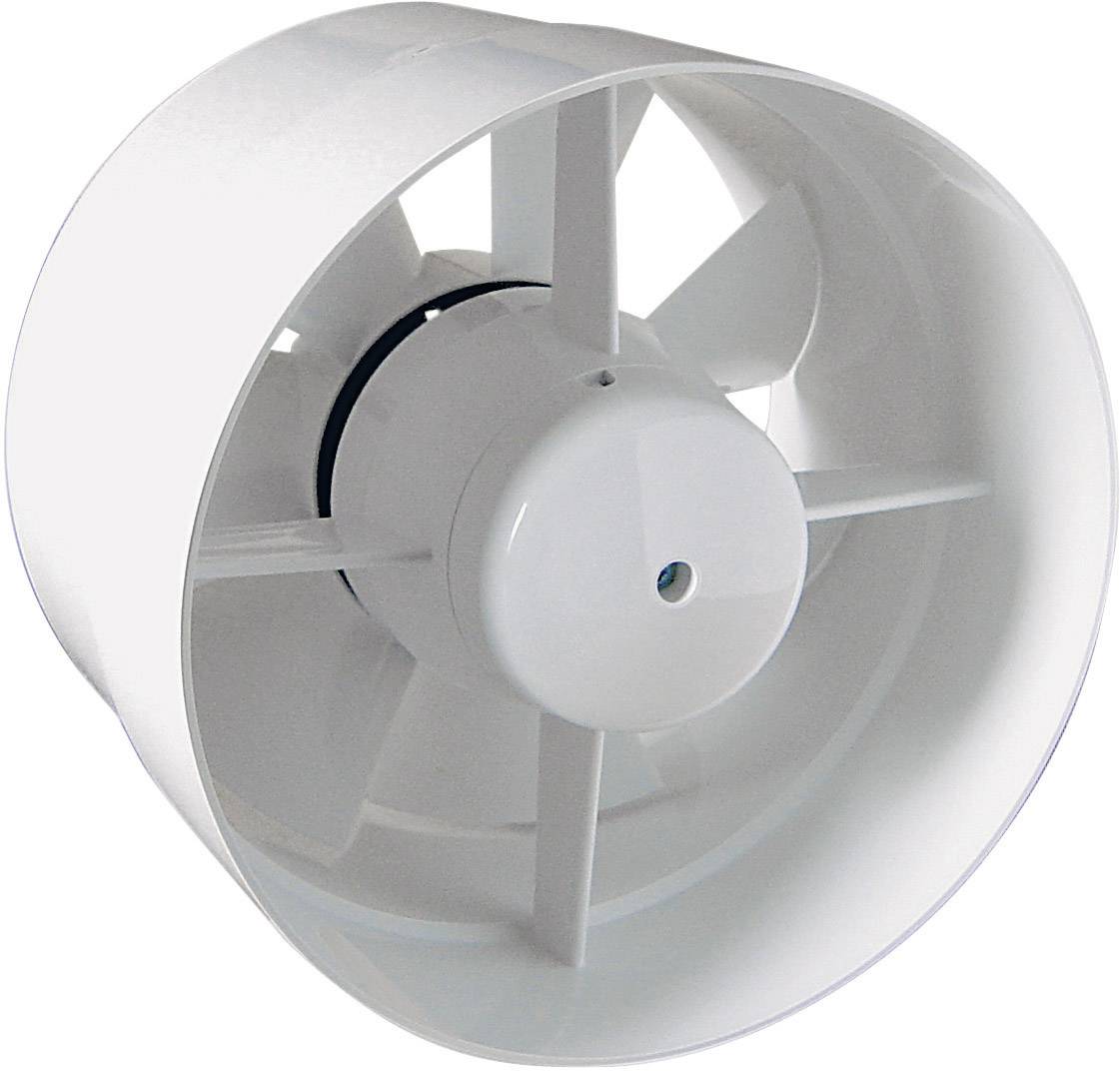

Pipe-rack fan with ball bearing motor for installation in ventilation systems. Suitable for Exhaust pipes and hoses in Ø 125 mm. Made out of high-quality ABS plastic.
Scope of delivery
- Tube Fan Inserts
- User manual.
