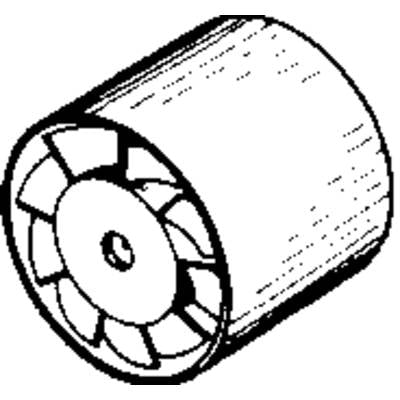

Stroke drawing/circuit diagram
Stroke drawing/circuit diagram
Wallair 20100256 In-line extractor 230 V 180 m³/h 12.5 cm
EAN:
Part number:
Item no:
Datasheet (PDF)
65 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 23.52
3
4% = € 0.91
€ 22.61
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 23.52 / piece)
€ 57.97
-59 %
€
Highlights & Details
Tubular Insert Ventilator
- For installation in rigid and flexible pipes for inner pipeØ 120 mm
Technical specifications
- Product type
In-line extractor
- Nominal voltage
230 V
- Current consumption
70 mA
20 W
- Air flow rate
180 m³/h
- Rotational speed
2100 U/min
- Suitable for pipe Ø
12.5 cm
- Noise emission (max.)
43 dB
- Factory colour
White
- Dim
(Ø x L) 11.9 cm x 9.7 cm
- Length
9.7 cm
- (Ø)
11.9 cm
- Max. noise generation
43 dBa
- Max. power consumption
20 W
- Output
190 m³/h
- Operating voltage
230 V/50 Hz
Documents & Downloads
Datasheet
Datasheet 538841 Wallair 20100256 In-line extractor 230 V 180 m³/h 12.5 cm
User & Safety Instructions
User & Safety Instructions 538841 Wallair 20100256 In-line extractor 230 V 180 m³/h 12.5 cm
Description
When there is not enough space for a large intermediate fan between pipes, but the air throughput must be improved, then this tubular insert ventilator is exactly what you need.
Scope of delivery
- Tube Fan Inserts
- User manual.
Hints
For the assembly of the stand, no holes are provided on the fan.
