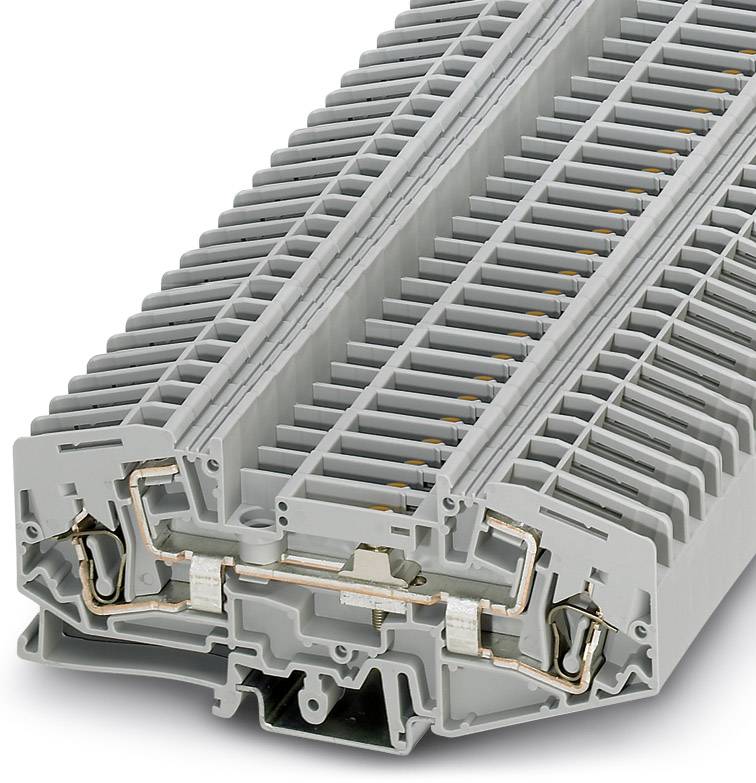

Slide-type terminal block SGSK 6 3029965 Phoenix Contact
Packaging type
Piece
Product type
N terminal
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 11.30 / piece)
€ 565.00
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
N terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
24
- AWG max.
10
- Clamp width
8.2 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
400 V
- Stripping length (max.)
12 mm
- Manufacturer part #
3029965
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
SGSK 6
- Dim
(L x W x H) 113 x 8.2 x 49 mm
- Width
8.2 mm
- Height
49 mm
- Length
113 mm
- Contamination level
3
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 566239 Slide-type terminal block SGSK 6 3029965 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 566239 Slide-type terminal block SGSK 6 3029965 Phoenix Contact
Description
Slide-type terminal block, Connection type: Spring-cage connection, Cross section: 0.2 mm² - 10 mm², AWG: 24 - 8, Nominal current: 41 A, Nominal voltage: 400 V, Length: 113 mm, Width: 8.2 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15
