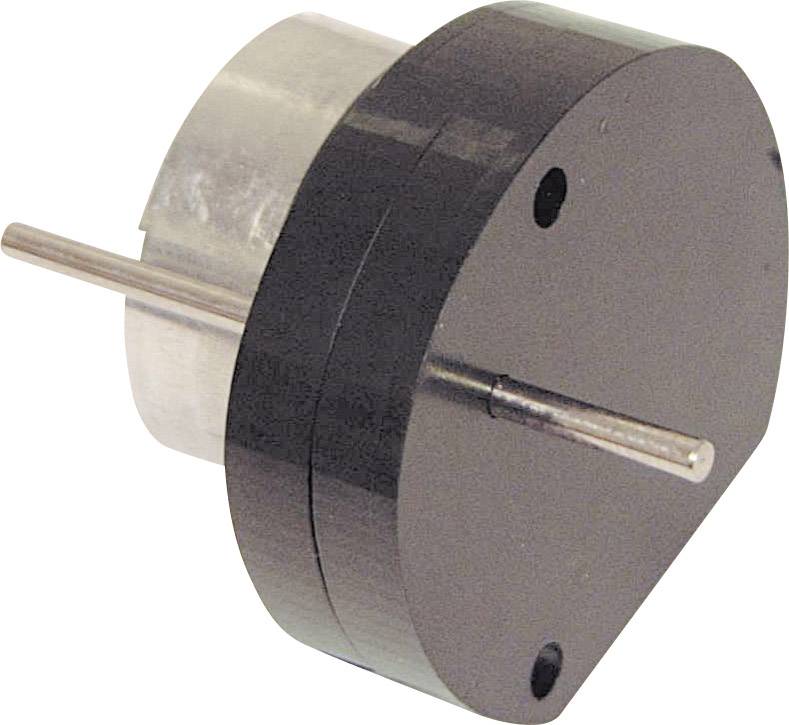

Sol Expert RF300CA RF300CA Solar motor
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
6% = € 0.27
€ 4.34
10
8% = € 0.37
€ 4.24
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
14-day return policy included
Highlights & Details
Solar motor with drive
- Two selectable speeds
Technical specifications
- Shaft diameter: 2 mm
- Operating voltage 0.4 - 5.9 V/DC
- Torque 120 g/cm
- Start-up current 20 mA
- Shaft length: 10 mm
- Diameter 38 mm
- From 10 rpm
- Product type
Solar motor
- Length
25 mm
- Nominal RPM
From 10 U/min
- Current consumption
20 mA
- Operating voltage
0.4 - 5.9 V DC
Documents & Downloads
Datasheet
Datasheet 130441 Sol Expert RF300CA RF300CA Solar motor
User & Safety Instructions
User & Safety Instructions 130441 Sol Expert RF300CA RF300CA Solar motor
Description
The 27:1 or 9:1 drive was especially designed for Mabuchi’s RF300CA solar motor. A pleasant rotation speed of about 16 rpm can be reached at 0.5 V and the 27:1 ratio. Ideal for all models that are supposed to rotate slowly.
Features
- Mabuchi RF300CA solar motor
- Adjustable ratio: 9:1 or 27:1.
