Somfy Video door intercom
EAN:
Part number:
Item no:
Number
Total (€ 348.74 / piece)
€ 348.74
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Video-door phone V500 wlan
- Video door entry system V500 WLAN for optimal access control
- The bell starts ringing at your doorstep: A text notification, including visitor's picture, is sent to your indoor unit and your smartphone
- Are you on the move? The Smartphone alerts you and allows you to access your front door at the same time
- Robust & slim outdoor unit with integrated wide-angle camera & LEDs for optimum night view
- Indoor unit in modern design inclusive of Touch Monitor Ideal for single family houses
- Can be integrated into the Somfy protect APP and can also be learned through this in Tahoma
- Control your indoor unit also other radio-based products, such as your shutter (only possible with RTS radio)
- Easy installation via bell wire
Technical specifications
- Function inner station V500 WLAN
- Power supply 100 - 240 V AC / 50-60 Hz / 0.6A (plug with 1.5 m cable)
- VOLTAGE OUTPUT 24 V DC, 1A
- Radio protocol RTS (Radio Technology Somfy)
- Radio frequency 433.42 MHz
- Radio range up to around 200 m (in the open).
- WLAN 2.4 GHz - 802.11 b/n/g
- Monitor / resolution 7" touch-screen / 800x400 pixels
- Operating temperature -10 to +45°C
- Dimensions 230 x 149 x 39 mm
- Distance to outdoor station Max. 120 m
- APP Somfy protect APP, available free of charge for iOS and Android
- Function outdoor station V500 WLAN
- Camera angle Horizontal: 102° - Vertical: 65°
- Night vision infrared LED
- Operating temperature -20° to +55°
- Protection class IP54
- Dimensions 77 x 151 x 45 mm
- Dimensions 230 x 149 x 39 mm
- Distance to outdoor station Max. 120 m
- APP Somfy protect APP, available free of charge for iOS and Android
- Product type
Video door intercom
120 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3815035 Somfy Video door intercom
Description

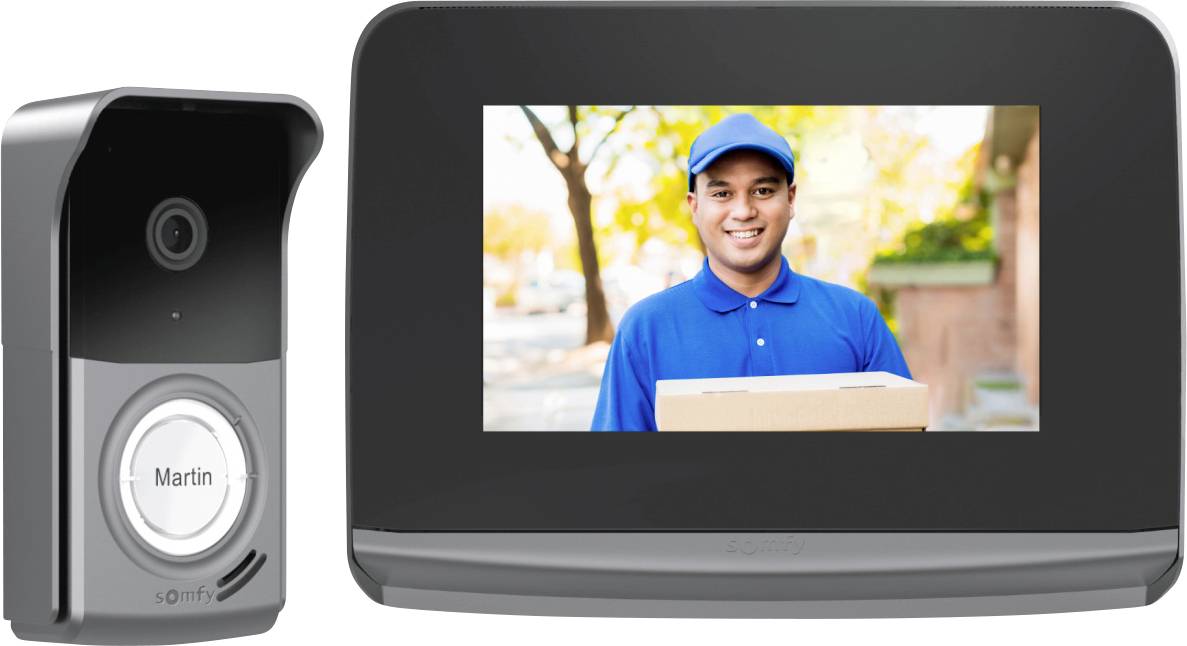

The premium video door intercom V500 WLAN with outdoor and indoor station, including a touch-screen display with many additional functions and an innovative design offers you optimum control of your input area.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 video intercom V500 WLAN indoor station, Somfy video intercom V500 IO outdoor station, 1 plug-in power supply, 1 SD card for picture memory, 1 mount, 1 Allen key, 1 RESET pin
